Description

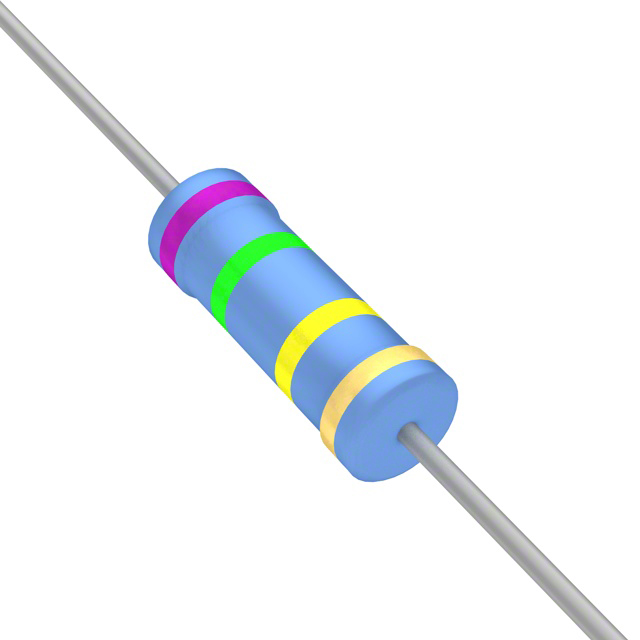

Vishay / BC Components HVR3700007503JR500 Metal Film Resistor 750k Ohms 1/2W 5% Axial Through Hole RoHS
Resistance (Ohms) 750k
Tolerance ±5%
Power (Watts) 0.5W, 1/2W
Composition Metal Film
Features Flame Retardant Coating, High Voltage, Pulse Withstanding, Safety
Temperature Coefficient ±200ppm/°C
Operating Temperature -55°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Size / Dimension 0.157″ Dia x 0.394″ L (4.00mm x 10.00mm)
Number of Terminations 2
Metal film resistors have a thin metal layer as resistive element on a non-conducting body. They are amongst the most common types of axial resistors. Other film type resistors are carbon film and thick and thin film resistors. In most literature referrals to metal film, usually it is a cylindrical axial resistor. However, thin film chip resistors use the same manufacturing principle for the metal layer. The appearance of metal film resistors is similar to carbon film resistors, but their properties for stability, accuracy and reliability are considerably better. Shop online for Metal Film Resistors from our wide range of resistors.
Manufacturer Part Number: HVR3700007503JR500
Manufacturer: Vishay/BC Components
