Description

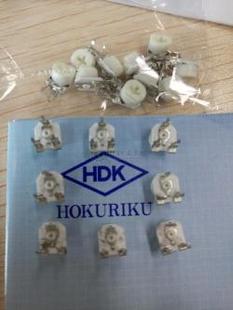

VZ067TL7-B101 HOKURIKU Resistor Trimmer / POTENTIOMETERS-ROTARY B101OHM RoHS
Electrical Performance
1. Nominal resistance 100Ohm to 1 Mohm
2. The total nominal value of the deviation of ± 30%
3. The law of the resistance type B
4. Rated power 0.1W
5. The maximum operating voltage AC50V
6. The residual resistance R> 1KOhm 3%
B. Mechanical behavior
1. Azimuth angle 210o ± 20 o
2. The rotational torque 2 mN.m to 25 mN.m
3. The rotation stopper strength 0.5K gf.cm Max
C. Durability
1. Rotational Life R=15% max.for 100 times
Manufacturer:Electronic Components
Datasheet:VZ067TL1-B10K.pdf
