Description

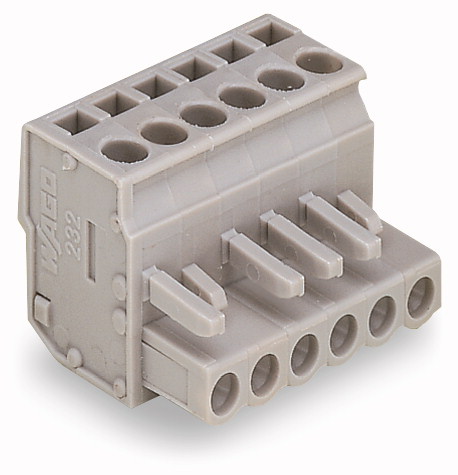

Angled female connector; 8-pole; Pin spacing 5 mm / 0.197 in; codable; with 2 locking latches; Conductor exit same direction as latches
|
| Name | Value | Unit |
| Packaging type | BOX | |
| Ratings per | IEC/EN 60664-1 | |
| Rated voltage (III / 3) [V] | 320 | V |
| Rated impulse voltage (III / 3) [kV] | 4 | kV |
| Rated voltage (III/2) [V] | 320 | V |
| Rated impulse voltage (III / 2) [kV] | 4 | kV |
| Rated voltage (II / 2) [V] | 630 | V |
| Rated impulse voltage (II / 2) [kV] | 4 | kV |
| Rated current [A] | 14 | A |
| Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | |
| Approvals per | UL 1059 | |
| Rated voltage UL (Use Group B) [V] | 300 | V |
| Rated current UL (Use Group B) [A] | 15 | A |
| Rated voltage UL (Use Group D) [V] | 300 | V |
| Rated current UL (Use Group D) [A] | 10 | A |
| Rated voltage CSA (Use Group B) [V] | 300 | V |
| Rated current CSA (Use Group B) [A] | 15 | A |
| Rated voltage CSA (Use Group D) [V] | 300 | V |
| Rated current CSA (Use Group D) [A] | 10 | A |
| Total number of potentials | 8 | |
| Number of connection types | 1 | |
| Number of levels | 1 | |
| Connection technology | CAGE CLAMP® | |
| Number of connection points (connection type) | 1 | |
| Actuation type | Operating tool | |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 12 AWG | |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 12 AWG | |
| Fine-stranded conductor with ferrule with plastic collar | 0.25 … 1.5 mm² / … | |
| Fine-stranded conductor with ferrule without plastic collar | 0.25 … 2.5 mm² / … | |
| Strip length | 8 … 9 mm / 0.31 … 0.35 Inch | |
| Pin spacing | 5 mm (0.197 in) | |
| Width | 42.4 mm / 1.669 Inch | |
| Height | 19.9 mm / 0.783 Inch | |
| Depth | 22.75 mm / 0.896 Inch | |
| No. of poles | 8 | |
| Contact type (pluggable connector) | Female connector/socket | |
| Connector connection type | for conductors | |
| Total number of connection points | 8 | |
| Color | gray | |
| Material group | I | |
| Insulating material | Polyamide 66 (PA 66) | |
| Flammability class per UL94 | V0 | |
| Clamping spring material | Chrome nickel spring steel (CrNi) | |
| Contact material | Copper alloy | |
| Contact plating | tin-plated | |
| Fire load [MJ] | 0.247 | MJ |
| RoHS Conformity | 1 | |
| Weight [g] | 15.07 | g |
| Limit temperature range | -60 … 85 °C |
Manufacturer Part Number: 232-208
