Wago 233-204 PCB terminal block
Wago 233-204 PCB terminal block - Image 2

Wago 233-204 PCB terminal block

Please call 800-717-6475 to check current stock and pricing.

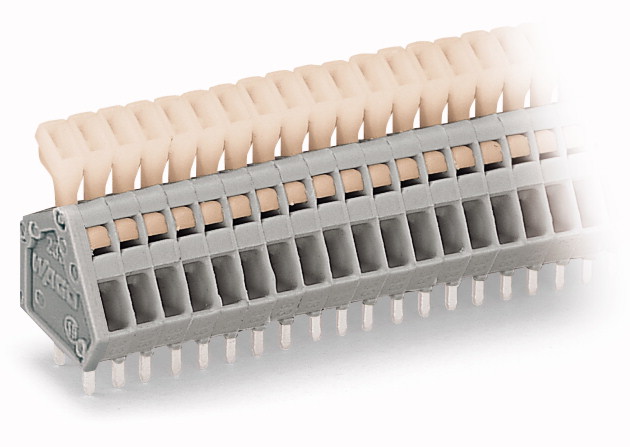

Wago 233-204 PCB terminal strip; 2 solder pins/pole; 4-pole; pin spacing 2.5 mm / 0.098 in; with push-button

SKU: 233-204 Categories: , Tags: , , Brand:

Description

Wago 233-204 PCB terminal block; Push-button; 0.5 mm²; Pin spacing 2.5 mm; 4-pole; CAGE CLAMP®

  • Terminal strips with push-button actuated CAGE CLAMP®
  • Double solder pins for high mechanical stability on PCB
  • Ideal for in-the-field wiring thanks to simplified push-button actuation
  • Convenient, tool-free operation
Name Value Unit
Packaging type  BOX
Ratings per  IEC/EN 60664-1
Rated voltage (III / 3) [V]  63  V
Rated impulse voltage (III / 3) [kV]  2.5  kV
Rated voltage (III/2) [V]  160  V
Rated impulse voltage (III / 2) [kV]  2.5  kV
Rated voltage (II / 2) [V]  320  V
Rated impulse voltage (II / 2) [kV]  2.5  kV
Rated current [A]  6  A
Legend (ratings)  (III / 2) ? Overvoltage category III / Pollution degree 2
Approvals per  UL 1059
Rated voltage UL (Use Group B) [V]  150  V
Rated current UL (Use Group B) [A]  4  A
Rated voltage CSA (Use Group B) [V]  150  V
Rated current CSA (Use Group B) [A]  4  A
Total number of potentials  4
Number of connection types  1
Number of levels  1
Connection technology  CAGE CLAMP®
Number of connection points (connection type)  1
Actuation type  Operating lever
Solid conductor  0.08 … 0.5 mm² / 28 … 20 AWG
Fine-stranded conductor  0.08 … 0.5 mm² / 28 … 20 AWG
Fine-stranded conductor with ferrule with plastic collar  0.25 mm² / AWG
Fine-stranded conductor with ferrule without plastic collar  0.25 mm² / AWG
Strip length  5 … 6 mm / 0.2 … 0.24 Inch
Conductor entry angle to the PCB [°]  30  °
Pin spacing  2.5 mm (0.098 in)
Width  12.3 mm / 0.484 Inch
Height  19.5 mm / 0.768 Inch
Height from the surface  15.5 mm / 0.61 Inch
Depth  13.9 mm / 0.547 Inch
No. of poles  4
Solder pin arrangement  over the entire terminal strip, in line
Solder pin length [mm]  4  mm
Solder pin dimensions  0.5 x 0.75 mm
Drilled hole diameter (tolerance) [mm]  1.1(+ 0.1)  mm
PCB contact  THT
Total number of connection points  4
Number of solder pins per potential  2
Color  gray
Material group  I
Insulating material  Polyamide 46 (PA 46)
Flammability class per UL94  V0
Clamping spring material  Chrome nickel spring steel (CrNi)
Contact material  Electrolytic copper (Ecu)
Contact plating  tin-plated
Fire load [MJ]  0.028  MJ
RoHS Conformity  1
Weight [g]  1.69  g
Limit temperature range  -60 … 105 °C

Manufacturer Part Number: 233-204
