Description

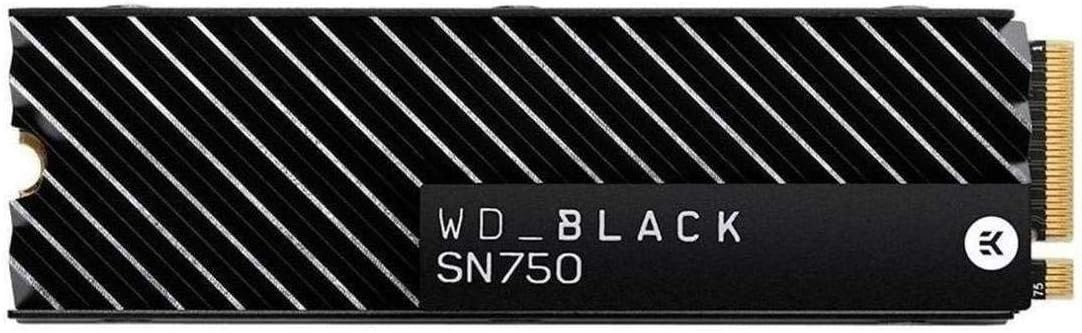

WDS200T3XHC Western Digital WD BLACK SN750 NVMe M.2 2280 2TB PCI-Express 3.0 x4 64-layer 3D NAND Internal Solid State Drive (SSD) with Heatsink
The Western Digital SN750 (w/ Heatsink) is a solid-state drive in the M.2 2280 form factor, launched on January 18th, 2019. It is available in capacities ranging from 500 GB to 4 TB. This page reports specifications for the 2 TB variant. With the rest of the system, the Western Digital SN750 (w/ Heatsink) interfaces using a PCI-Express 3.0 x4 connection. The SSD controller is the 20-82-007011 Triton MP28 from WD, a DRAM cache chip is available. Western Digital has installed 64-layer TLC NAND flash on the SN750 (w/ Heatsink), the flash chips are made by Toshiba. To improve write speeds, a pseudo-SLC cache is used, so bursts of incoming writes are absorbed more quickly. The cache is sized at 36 GB, once it is full, writes complete at 1400 MB/s. The SN750 (w/ Heatsink) is rated for sequential read speeds of up to 3,400 MB/s and 2,900 MB/s write; random IO reaches 480K IOPS for read and 550K for writes.
Western Digital Black SN750 WDS200T3XHC 2TB / 2000GB M.2 2280 QLC / Quad-Level Cell Consumer / Value Endurance 0.3-DWPD / Drive Writes Per Day PCI Express / PCIe 3.0 NVM Express / NVMe Solid State Disk Drive / SSD with Heatsink – Brand New
WD Black™ SN750 NVMe™ SSD
Level Up to NVMe SSD Performance
The WD BLACK™ SN750 NVMe™ SSD delivers top-tier performance for gaming and hardware enthusiasts who are looking to build or upgrade their PC. Available in capacities up to 2TB, the WD BLACK SN750 NVMe SSD rivals some of the best performing drives on the market to help give gamers that competitive edge.
Performance Matters
Live life in the fast lane, whether you’re looking to boost your system’s overall responsiveness or load games and levels quickly, the WD BLACK drive cuts down on your wait time to get back into action and gets you ahead of the game.
Our fastest computing NVMe SSD can deliver speeds more than six times faster than our fastest SATA SSD (Up to 3,400MB/s vs. 545MB/s) to give hardcore gamers the competitive edge they need.
Sleek Heatsink Design
Every system is not created equal. From different graphics cards and CPUs to DRAM and storage, PCs all differ in performance and appearance. The WD BLACK SSD’s sleek and modern heatsink model goes well with desktop PC builds that support the M.2 form factor and is the perfect component to complement systems with RGB lighting and other cooling technologies, such as water cooling.
The EKWB heatsink is designed to help keep the WD BLACK NVMe SSD running at peak performance for longer sustained periods. It’s sleek and non-intrusive design not only gives your system a boost in appearance, but also helps your drive maintain optimal levels of performance with its passive cooling features.
The WD BLACK SSD Dashboard
The WD BLACK SSD Dashboard gives you the ability to optimize performance by enabling the gaming mode features. This disables the low power mode function on the SSD, which keeps your drive firing on all cylinders during intense gaming sessions.
Space to Play
The WD BLACK SN750 NVMe SSD is available in capacities ranging form 250GB – 2TB. At the core of the WD BLACK drive is its revolutionary NAND technology. By doubling the storage density form its previous generation, our 64-layer 3D NAND pushes the limitations of storage and showcases the amazing feat of NAND innovation. This means extended capacity up to 2TB on a single-sided drive that’s roughly the size of a gumstick, enough to store your large files and video games.
Product Highlights
Read speeds up to 3,400 MB/s for improved load times.
Available in capacities ranging from 500GB to 2TB.
Sleek heatsink design to customize and intensify your gaming rig while helping to maintain peak performance.
Ideal for enthusiasts building custom desktops or gaming rigs.
An exclusive WD BLACK SSD dashboard with gaming mode improves game performance.
Specifications
| WD BLACK SN750 NVMe SSD | |
|---|---|
| Model Number | WDS200T3XHC |
| Specification | |
| Heatsink | Yes |
| Interface | PCIe Gem3 8 Gb/s, up to 4 Lanes |
| Formatted Capacity | 2TB / 2000GB |
| Performance | |
| Sequentiaal Read up to (MB/s)(Queues=32, Threads=1) | 3,400 |
| Sequentiaal Write up to (MB/s)(Queues=32, Threads=1) | 2,900 |
| Rand Read 4KB IOPS up to (MB/s)(Queues=32, Threads=1) | 480K |
| Rand Write 4KB IOPS up to (MB/s)(Queues=32, Threads=1) | 550K |
| Endurance (TBW) | 1,200 |
| Power | |
| Peak Powr(10us) | 2.8A |
| PS3(low power) | 100mW |
| Sleep(PS4)(low power) | 2.5mW |
| MTTF | 1,750,000 hours(Telcordia SR-332, GB, 40°C) |
| Operating Temperatures | 32°F to 158°F(0°C to 70°C) |
| Non-operating Temperatures | -67°F to 185°F(-55°C to 85°C) |
| Certifications | FCC, UL, TUV, KCC, BSMI, VCCI, C-Tick |
| Form Factor | M.2 2280-S3-M with heatsink |
| Length | 80 +/- 0.15mm |
| Width | 24.2 +/- 0.30mm |
| Height | 8.10mm |
| Weight | 33.2g +/- 1g |
