Description

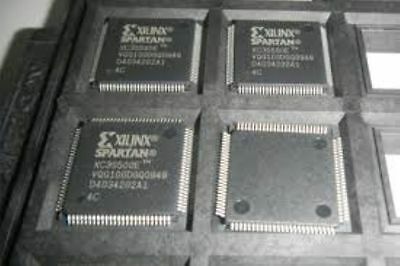

XC3S500E-4VQG100C Xilinx Field Programmable Gate Array FPGA Spartan-3E Family 500K Gates 10476 Cells 572MHz 90nm (CMOS) Technology 1.2V 100-Pin VTQFP
Specifications
Manufacturer: Xilinx
Product Category: FPGA – Field Programmable Gate Array
RoHS
Product: Spartan-3E
Number of Logic Elements: 10476
Number of I/Os: 66 I/O
Operating Supply Voltage: 1.2 V
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 85 C
Mounting Style: SMD/SMT
Package / Case: VQFP-100
Data Rate: 333 Mb/s
Series: XC3S500E
Brand: Xilinx
Number of Gates: 500000
Distributed RAM: 73 kbit
Embedded Block RAM – EBR: 360 kbit
Maximum Operating Frequency: 300 MHz
Moisture Sensitive: Yes
Product Type: FPGA – Field Programmable Gate Array
Factory Pack Quantity: 90
Subcategory: Programmable Logic ICs
Tradename: Spartan
Manufacturer Part Number: XC3S500E-4VQG100C
Manufacturer: Xilinx
The Spartan®-3 family of Field-Programmable Gate Arrays is specifically designed to meet the needs of high volume, cost-sensitive consumer electronic applications. The eight-member family offers densities ranging from 50,000 to 5,000,000 system gates. The Spartan-3 family builds on the success of the earlier Spartan-IIE family by increasing the amount of logic resources, the capacity of internal RAM, the total number of I/Os, and the overall level of performance as well as by improving clock management functions. Numerous enhancements derive from the Virtex®-II platform technology. These Spartan-3 FPGA enhancements, combined with advanced process technology, deliver more functionality and bandwidth per dollar than was previously possible, setting new standards in the programmable logic industry. Because of their exceptionally low cost, Spartan-3 FPGAs are ideally suited to a wide range of consumer electronics applications, including broadband access, home networking, display/projection and digital television equipment. The Spartan-3 family is a superior alternative to mask programmed ASICs. FPGAs avoid the high initial cost, the lengthy development cycles, and the inherent inflexibility of conventional ASICs. Also, FPGA programmability permits design upgrades in the field with no hardware replacement necessary, an impossibility with ASICs.
