Description

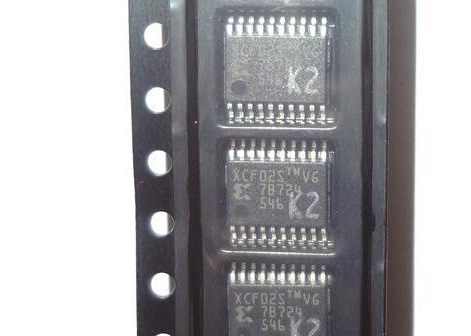

XCF02SVOG20C5445 Platform Flash In-System Programmable Configuration PROM 3-3.6V 20-TSSOP RoHS
The XCFxx series of Flash EPROMs provide an easy-to-use, cost-effective and reprogrammable method for storing large Xilinx FPGA configuration bitstreams.
In-System Programmable Flash memory devices for configuration of Xilinx FPGAs
IEEE Standard 1149.1/1532 Boundary-Scan (JTAG) support for Programming, Prototyping, and Testing
Cascadable for storing longer or multiple bitstreams
I/O pins compatible with voltage levels ranging from +1.5V to +3.3V
Specifications
Product Category: FPGA – Configuration Memory
Memory Type: EEPROM
Memory Size: 2 Mbit
Maximum Operating Frequency: 50 MHz
Operating Supply Voltage: 3.3 V
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 85 C
Mounting Style: SMD/SMT
Package/Case: TSSOP-20
Brand: AMD / Xilinx
Operating Supply Current: 10 mA
Product Type: FPGA – Configuration Memory
Series: XCF02S
Subcategory: Programmable Logic ICs
Supply Voltage – Max: 3.6 V
Supply Voltage – Min: 3 V
Manufacturer:Xilinx
Datasheet:Xilinx/ds123.pdf
