Description

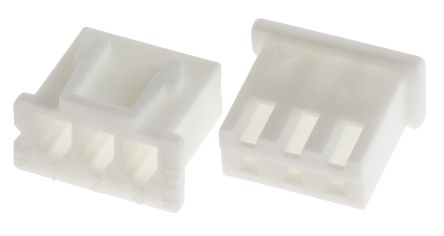

The XH series housing from JST are 2.5mm pitch, single row housing for use with XH series crimp contacts.
Number of contacts varies from 2 to 16 pins
10mm pitch with 2 circuits and 5mm pitch with 6 circuit housings are also available
Nylon 6, UL94V-0 material
Natural colour
Applications
Industrial
The XH Series Housings body material is PA 6 with a rating of UL 94V-0, colour is natural (White). For XH Series Contacts and Cable Assemblies see part number 820-1529 typical.
Specifications
Number of Contacts 3
Number of Rows 1
Pitch 2.5mm
Gender Female
Mounting Type Cable Mount
Series XHP
For Use With XH Series Dis-Connectable Crimp Style Connector
Body Orientation Straight
Length 9.8mm
Width 5.7mm
Depth 7.75mm
Housing Material Polyamide
Manufacturer Part Number: XHP-3
Manufacturer: JST
