Description

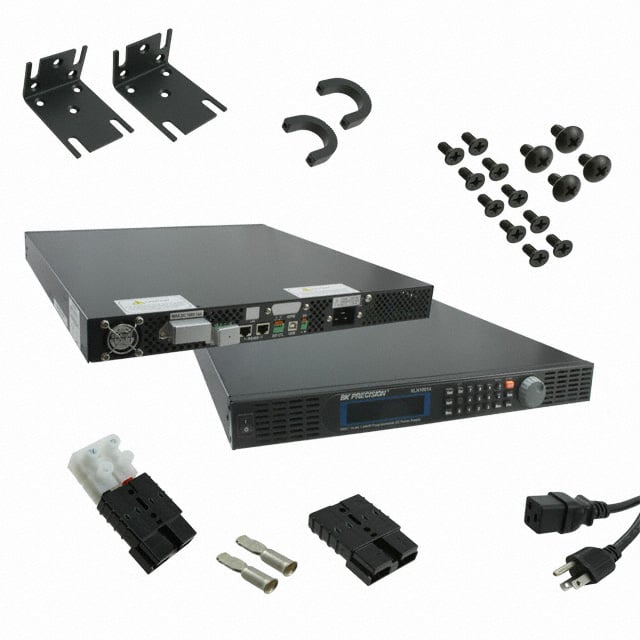

XLN10014-GL B&K Precision Power Supply Bench (AC to DC) 100 ~ 240VAC 1440WLCD 0 ~ 100VDC 0 ~ 14.4A GPIB, LAN Interface, Memory, Programmable, RS485, USB Interface. The BK Precision XLN10014GL Programmable Single-Output High Power DC Power Supply delivers up to 1440W of clean power on a single output. The compact 1U high 19 inch wide supply was designed for system integrators and bench top users. The GPIB, LAN, USB, and RS485 interfaces combined with fast average command processing times of less than 50 ms make it ideal for ATE applications.
Specs
Manufacturer: B&K Precision
Product Category: Power Supplies – Bench Top
Product: DC Power Supplies
Type: Programmable
Input Voltage: 100 VAC to 240 VAC
Number of Outputs: 1 Output
Output Voltage-Channel 1: 0 VDC to 100 VDC
Output Current-Channel 1: 0 A to 14.4 A
Output Power: 1.44 kW
Display Type: LCD
Brand: B&K Precision
Cable Type: North American Power Cord Included
Product Type: Bench Top Power Supplies
Series: XLN
Subcategory: Power Supplies
Unit Weight: 28 lbs
Number of Outputs: 1
Voltage Output: 0 ~ 100VDC
Current Output: 0 ~ 14.4A
Size / Dimension: 17.008″ L x 16.535″ W x 1.717″ H (432.00mm x 420.00mm x 43.60mm)
Manufacturer: B&K Precision
Output Voltage: 0-100V
Output Current: 0-14.4A
Max Power: 1440W
Input Voltage: 100-240VAC, 47 Hz-63 Hz
Dimensions (WxHxD): 16.5 in. x 1.72 in. x 17 in.
Master/slave mode for series and parallel connection of up to 4 units
List mode: Execute 150 step test sequences from instrument memory
Average command processing time < 50 ms
Programmable voltage and current slew rate allow for "soft starting" of loads
Built-in precise voltage and current measurements
Internal memory stores up to 10 instrument settings
USB, RS485, GPIB, and LAN interface
External analog programming interface
Remote sense 100-240V universal AC input with power factor correction
LabVIEW (TM) drivers available
Datasheet: XLN_Series_datasheet.pdf
