Description

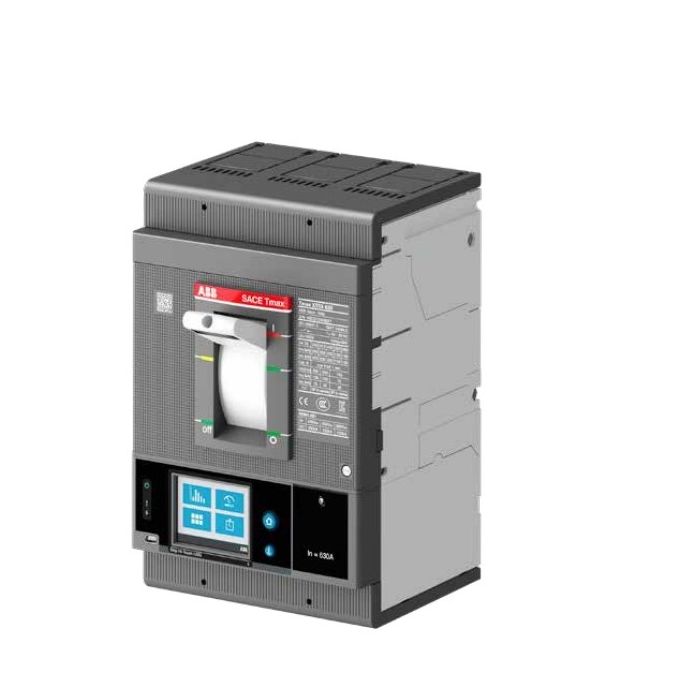

XT5H-D 400 MCS 3p F F UL/CSA ABB Molded Case Circuit Breaker, Thermal Magnetic, 400A, 3 Pole, 600V, XT5 Series Fixed Three-Pole With Front Terminals
XT5HU340ADFF000XXX specification_sheet
Circuit Breaker, 600 V AC/DC, 400 A, 35 kA Interrupt, XT5 Frame, 3 Pole, Double Clamped Connection, IP20 Enclosure, Switch Mounting
Order Code US and Canada: XT5HU340ADFF000XXX
Dimensions
Product Net Width: 140 mm
Product Net Height: 205 mm
Product Net Depth / Length: 103.5 mm
Product Net Weight: 4.304 kg
Container Information
Package Level 1 Units:
box 1 piece
Package Level 1 Width:
248 mm
Package Level 1 Height:
240 mm
Package Level 1 Depth / Length:
285 mm
Package Level 1 Gross Weight:
4.53 kg
Package Level 1 EAN:
8056221023573
Additional Information
Product Main Type:
SACE Tmax XT
Product Name:
Moulded Case Circuit Breaker
Product Type:
Switch Disconnector
Suitable for Product Class:
SACE Tmax XT
Version:
F
CAD Dimensional Drawing:
XT5 3p Fixed Circuit Breaker
XT5 3p 4p Front plate
Technical
Current Type:
AC/DC
Mechanical Durability:
20000 cycle
120 cycles per hour
Number of Poles:
3P
Order Multiple:
1 piece
Power Loss:
72.3 W
Rated Current (In):
400 A
Rated Operational Current AC-23A (Ie):
(400 V) 400 A
(690 V) 400 A
Rated Operational Voltage:
600 V
Rated Uninterrupted Current (Iu):
400 A
Rated Voltage (Ur):
600 V
Short-Circuit Performance Level:
H
Standards:
UL489
Sub-type:
XT5
Terminal Connection Type: Front
ABB XT5HU340ADFF000XXX – SACE Tmax XT5H-D – 600 VAC,600 VDC – Three Pole – 400 Amp – 150 kA 480 VAC, 65 kA 600 VAC, 35 kA 250 VDC, 70 kA 500 VDC, 50 kA 600 VDC, 35 kA 240 VAC
