Description

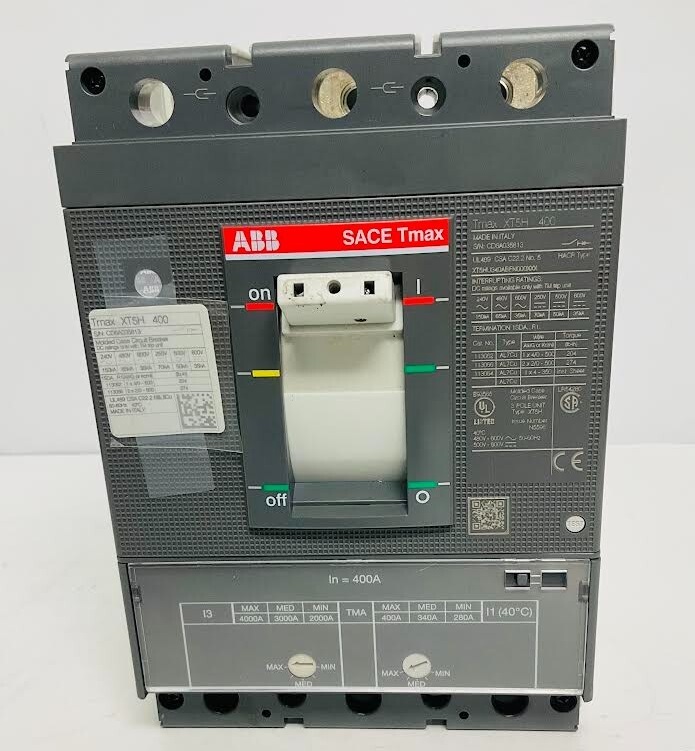

ABB GE XT5HU340ABFF000XXX Tmax XT5 Molded Case Circuit Breaker, 600V, 400A, 3-Pole, TMA Trip Unit, Double Clamped Connection, IP20 Enclosure, Fixed Mounting, Interrupt rating 65 @ 480 VAC, Standard UL & IEC: UL 80%, Line Side Termination: F front terminals, no lugs installed, Load Side Termination: F front terminals, no lugs installed, Requires SAP#441561 Lugs.

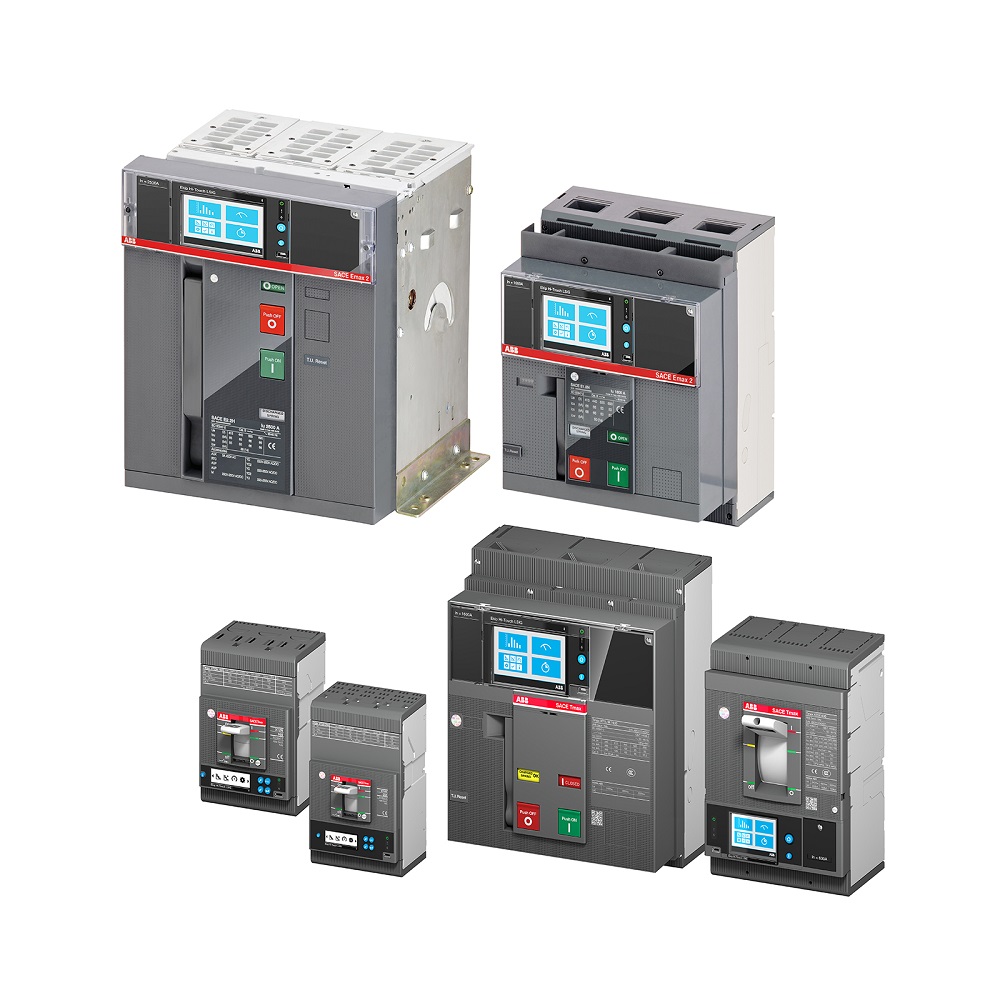

Tmax XT molded case circuit breakers offers extraordinary flexibility and completeness of range to simplify system designs and reduce inventory and procurement costs. With current ratings up to 250A and a voltage rating of 600V, both alternating (AC) and direct (DC) current in the same breaker. This combined with extended breaking capacities, up to 200kA, gives SACE Tmax XT molded case circuit breakers the ability to cover a full range of applications.
XT5HU340ABFF000XXX Molded Case Circuit Breaker Product Specifications
Brand: ABB
Part Number # : XT5HU340ABFF000XXX
Amperage Rating: 4000 A
Dimensions: 5.51 in W x 4.07 in D x 8.07 in H
Frame: XT5
Interrupt Rating: 65 kA @ 480 VAC
Trip Type: TMA, Thermal Magnetic Adjustable (TMD/TMA)
Connection type: Terminals
UNSPSC: 39121616
UPC: 08056221022484
Component: Molded Case Circuit Breaker
Breaker Amperage Rating 400 Amp
Interrupt Rating 150 Ka 480 Volt
Interrupt Rating 65 Ka 600 Volt
Interrupt Rating 35 Ka 240 Volt
Interrupt Rating 35 Ka 250 Volt (DC)
Interrupt Rating 70 Ka 500 Volt (DC)
Interrupt Rating 50 Ka 600 Volt (DC)
