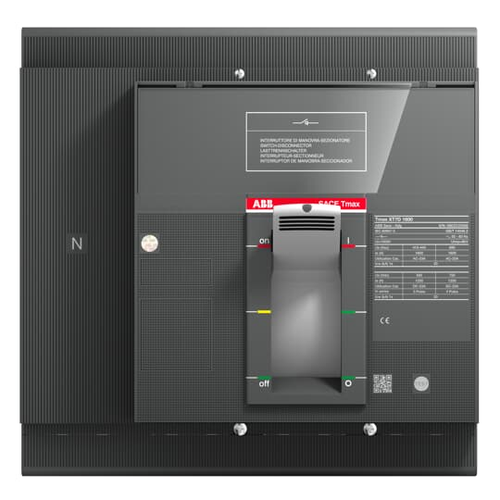

XT6H 800 Ekip Dip LS/I 800 3p FF UL/CSA ABB Circuit Breaker, 600 VAC/VDC, 65 kA @ 480 VAC Interrupt, XT6 Frame, Ekip DIP LS/I Trip, 3 Pole, Terminals Connection, Fixed Mounting, 8.27 in W x 4.07 in D x 10.55 in H Dimensions
The ABB XT6HU3800EFF000XXX is a robust circuit breaker designed for high-performance electrical systems. This Tmax XT6H 800 model is UL/CSA certified and features a fixed three-pole configuration, ensuring reliable protection and operation. Equipped with front terminals, it allows for easy installation and maintenance. The solid-state release in AC Ekip Dip Ls/I R 800 provides precise and efficient circuit interruption, making it ideal for demanding industrial applications. With a focus on safety and durability, this circuit breaker is an essential component for maintaining electrical system integrity.
Actuator Type Toggle
Alternate Mfr Part Number 1SDA102855R1
Brand ABB
Breaking Capacity 65 kA
Connection Bolt connection
Construction Built-in device fixed built-in technique
Current Rating 800 A
IP Rating IP20
Manufacturer Part Number XT6HU3800FFF000XXX
Mounting Orientation Front side
Number of Poles 3
Numeric ID 2510416
Voltage Range 240 to 600 V
Order Code US and Canada:XT6HU3800EFF000XXX
Product Net Width:210 mm
Product Net Height:268 mm
Product Net Depth / Length:103.5 mm
Product Net Weight:9.5 kg
Container Information
Package Level 1 Units:
box 1 piece
Package Level 1 Width:
305 mm
Package Level 1 Height:
285 mm
Package Level 1 Depth / Length:
370 mm
Package Level 1 Gross Weight:
11 kg
Package Level 1 EAN:
8015644033651
Additional Information
Circuit Breaker Type to be Associated:
Power Distribution
Product Main Type:
SACE Tmax XT
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Suitable for Product Class:
SACE Tmax XT
Version:
F
CAD Dimensional Drawing:
XT6 3p Fixed Circuit Breaker
XT6 Frontal plate
Technical
Current Type:
AC
Mechanical Durability:
20000 cycle
120 cycles per hour
Number of Poles:
3P
Order Multiple:
1 piece
Power Loss:
at Rated Operating Conditions per Pole 53 W
Rated Current (In):
800 A
Rated Operational Voltage:
600 V AC
