Bussmann Photovoltaic Fuse
Bussmann Solar Fuses
Quick Overview
Bussmann PV Fuses & Links
Bussmann series range of XL package fuse links is specifically designed to protect and isolate photovoltaic array combiners and disconnects.These fuse links are capable of interrupting low overcurrents associated with faulted PV systems (reverse current, multi-array fault).
Details

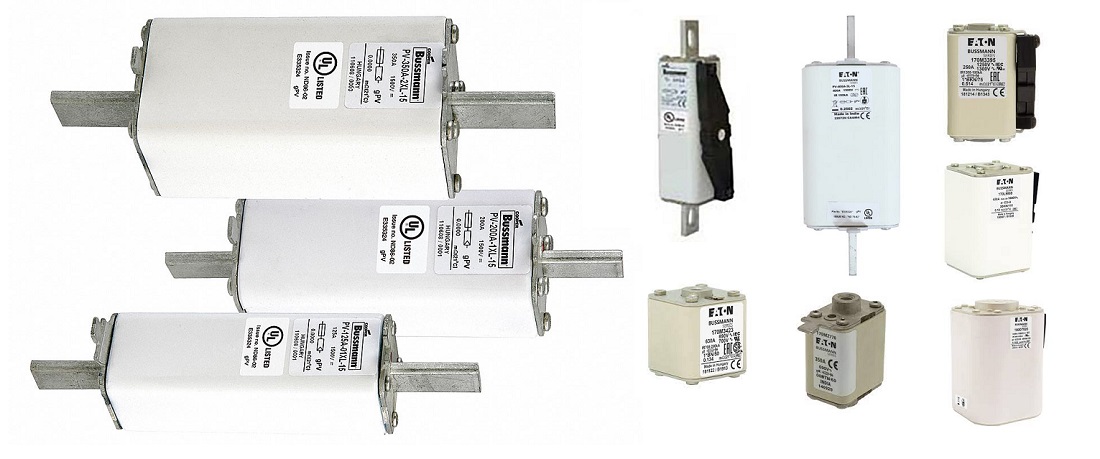

Eaton’s Bussmann® series XL photovoltaic (PV) fuses are engineered to protect and isolate PV array combiners and disconnects, effectively interrupting low overcurrents caused by faults such as reverse current and multi-array issues. Designed for DC systems up to 1500 V d.c., these fuses provide reliable protection for solar panels, combiner boxes, recombiner units, and battery storage systems.
Key features include:
- High DC voltage rating and fast-acting protection for low fault currents in PV systems
- Available in both blade and bolt-on mounting options for flexibility
- Proven performance in extreme temperature conditions
Specifications:
- Rated voltage: 1000 to 1500 V d.c.
- Current range: 50 to 600 A
- Breaking capacity: 30-50kA depending on size
- Compliance with IEC 60269-6, UL 2579, and RoHS
Accessories:
- Optional microswitches for monitoring
- Compatible fuse holders for all sizes
