RM Series – Thick Film Chip Resistor

Cal-Chip Electronics' RM Series Thick Film Chip Resistor

Quick Overview

RM Series – Thick Film Chip Resistor

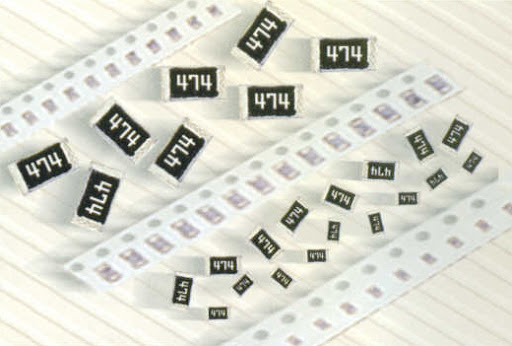

Cal-Chip Electronics' RM Series Thick Film Chip Resistor is small size, lightweight, and highly reliable rectangular-type fixed chip resistor with Ruthenium base as material. High power, ultra high power, and high precision options.

Thick Film Chip Resistor RM Series

Details

The RM surface mount series is extremely versatile. Each construction is used to optimize performance in this surface mount series. There are seven package sizes and twelve wattage ratings with tolerances ranging from 1% to 10% depending on construction type. This series also includes two mounting designs to accommodate different soldering processes. With so many options, it is easy to see why so many engineers choose this surface mount series from Cal-Chip Electronics.

Cal-Chip Fixed Chip Resistors’ manufactured for more compact electronic components and automatic mounting system.These Chip Resistors have electrical stability and mechanical stress due to used reliable metal glazed paste printed on Alumina substrate. These resistors will reduce your cost and save development time.

1. Very small, thin and light weight.

2. Both flow soldering and reflow soldering are applicable.

3. Owing to the reduced lead inductance, the high frequency characteristic is excellent.

4. Suitable size and packaging for surface mount assembly.

Features

  • Relative resistance tolerance and relative TCR definable among multiple resistors within package.
  • Relative resistance tolerance: ±0.01%, relative TCR: ±1ppm/?
  • Number of resistors in package: 2 or higher, standard and custom circuits designs available
  • RG series equivalent reliability and long term stability: less than ±0.1% drift after10000 hour stress test.
  • RoHS compliant, 100% lead free

Applications

  • Precision measurement instrumentation, medical electronics, automotive electronics
  • Voltage divider and amplification circuits that require very precise relative resistance tolerance and TCR
  • Multi step precision amplification circuits for minute signals

Click here to Download Datasheet I

Click here to Download Datasheet II
