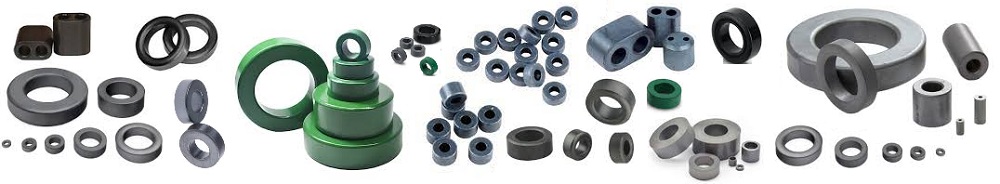

Fair-Rite Ferrite Toroids / Rings
Quick Overview
Fair-Rite ring configuration provides the ultimate utilization of the intrinsic ferrite material properties. Toroidal cores are used in a wide variety of applications such as power input filters, ground- fault interrupters, common- mode filters and in pulse and broadband transformers.
Details
Fair-Rite Ferrite Toroids, also known as Ferrite Rings, are circular objects crafted from ferrite, an iron-based alloy extensively employed in radio frequency applications. These toroids serve diverse functions, such as shielding against electromagnetic interference (EMI) and facilitating coupling between different segments of an electrical circuit. They play a pivotal role in reducing EMI transmission within circuits, thereby segregating components on a board. Moreover, they function as transformer cores, boasting low loss in high-frequency scenarios. By strategically connecting circuit segments to various sides of the ferrite ring, they ensure consistent current flow throughout the circuit. Furthermore, they act as inductors, storing and releasing energy as electromotive force within electric circuits.
Additionally, Ferrite Toroids are invaluable for suppressing common mode noise and radio frequency interference (RFI) in various electronic devices, including radio and TV receivers, audio and RF amplifiers. They effectively mitigate noise emanating from sources like treadmills, exercise equipment, fish tank heaters, oil heater pumps, fluorescent lights, motors, cable modems, DSL modems, and computers.
For enhancing the choking impedance of smaller cables, utilizing large-hole ferrite beads and looping the cable through multiple times proves highly effective. In cases of particularly stubborn common mode current or RFI issues, achieving a choking impedance as high as 5-10K ohms might be necessary. Employing multiple beads and multiple turns through each bead can yield higher impedances up to a certain threshold. However, at higher frequencies, nearing the electrical wavelength with the number of turns can lead to resonance in the choke due to stray capacitance and cable inductance, limiting the achievable high-end impedance values.
Fair-Rite Toroid Rings are designed with a ring configuration that provides the ultimate utilization of the intrinsic ferrite material properties. These cores are ideal for use in power input filters, ground-fault interrupters, common-mode filters, and in pulse and broadband transformers.
FEATURES
- Ring configuration design:
- Provides the ultimate utilization of the intrinsic ferrite material properties
- Built using thermo-set plastic coated parts:
- Capable of withstanding a minimum breakdown voltage of 1000Vrms
- Supplied burnished to break sharp edges
APPLICATIONS
- Power input filters
- Ground-fault interrupters
- Common-mode filters
- Pulse and broadband transformers
| Part Number | Frequency Range | A | B | C | Wt. (g) | AL(nH) | Ae(cm2) | le(cm) | Ve(cm3) |
| 5980001801 | 80 Material |
022.10 ±0.40
(0.870”) |
13.70 ±0.30
(0.540”) |
06.35 ±0.25
(0.250”) |
5.2 | 330 ±25% | 0.260 | 5.42 | 1.420 |
| 5980001001 | 80 Material |
029.00 ±0.65
(1.142”) |
19.00 ±0.50
(0.748”) |
07.50 ±0.25
(0.295”) |
21 | 350 ±25% | 0.370 | 7.32 | 2.700 |
| 5980000201 | 80 Material |
009.50 ±0.20
(0.374”) |
04.75 ±0.15
(0.187”) |
03.30 -0.25
(0.125”) |
0.83 | 245 ±25% | 0.073 | 2.07 | 0.150 |
| 5979001801 | 79 Material |
22.10 ±0.40
(0.870”) |
13.70 ±0.30
(0.540”) |
06.35 ±0.25
(0.250”) |
5.2 | 863+-25% | 0.260 | 5.41 | 1.420 |
| 5979000201 | 79 Material |
09.50 ±0.20
(0.375”) |
04.75 ±0.15
(0.187”) |
03.20 -0.25
(0.125”) |
0.83 | 626 +-25% | 0.072 | 2.07 | 0.150 |
| 5979001001 | 79 Material |
29.00 ±0.65
(1.142”) |
19.00 ±0.50
(0.748”) |
07.50 ±0.25
(0.295”) |
21 | 890 +-25% | 0.370 | 7.32 | 2.700 |
| 5977011121 | 77 Material |
75.65 Max
(2.978” Max) |
37.60 Min
(1.481” Min) |
13.60 Max
(0.535” Max) |
189.70 | 3500+25%, -30% | 2.15 | 16.7 | 35.9 |
| 5943011121 | 43 Material® |
75.85 Max
(2.978” Max) |
37.60 Min
(1.480” Min) |
13.60 Max
(0.535” Max) |
189.70 | 1300+25%, -30% | 2.15 | 16.7 | 35.9 |
| 5976011121 | 76 Material |
75.65 Max
(2.978” Max) |
37.60 Min
(1.481” Min) |
13.60 Max
(0.535” Max) |
188 | 16000±30% | 2.14 | 16.5 | 35.3 |
| 5976022021 | 76 Material |
50.40 Max
(1.984” Max) |
32.50 Min
(1.278” Min) |
20.00 Max
(0.787” Max) |
91 | 14200±30% | 1.44 | 12.7 | 18.27 |
| 5976022121 | 76 Material |
30.10 Max
(1.185” Max) |
17.90 Min
(0.705” Min) |
16.00 Max
(0.629” Max) |
27.5 | 12800±30% | 0.749 | 7.32 | 5.48 |
| 5976000221 | 76 Material |
9.95 Max
(0.391” Max) |
04.35 Min
(0.172” Min) |
03.55 Max
(0.139” Max) |
0.83 | 4400+30%, -35% | 0.073 | 2.07 | 0.15 |
| 5976000211 | 76 Material |
09.74 Max
(0.383” Max) |
04.56 Min
(0.180” Min) |
03.34 Max
(0.131” Max) |
0.83 | 4400 ±30% | 0.073 | 2.07 | 0.15 |
| 5976000201 | 76 Material |
09.50 ±0.20
(0.374”) |
04.75 ±0.15
(0.187”) |
03.30 -0.25
(0.125”) |
0.83 | 4400 ±30% | 0.073 | 2.07 | 0.15 |
| 5976000101 | 76 Material |
05.95 -0.25
(0.229”) |
03.05 ±0.10
(0.120”) |
01.65 -0.25
(0.060”) |
0.14 | 1950 ±30% | 0.02 | 1.3 | 0.027 |
| 5976000801 | 76 Material |
03.95 ±0.15
(0.156”) |
02.22 ±0.10
(0.087”) |
01.40 -0.25
(0.050”) |
0.05 | 1430 ±30% | 0.011 | 0.92 | 0.0098 |
| 5975011121 | 75 Material |
75.65 Max
(2.978” Max) |
37.60 Min
(1.481” Min) |
13.60 Max
(0.535” Max) |
188 | 8100+25%, -30% | 2.14 | 16.5 | 35.3 |
| 5975011101 | 75 Material |
73.65 ±1.50
(2.900”) |
38.85 ±075
(1.530”) |
12.70 ±0.40
(0.500”) |
188 | 8100 ±25% | 2.14 | 16.5 | 35.3 |
| 5975003821 | 75 Material |
62.80 Max
(2.472” Max) |
34.20 Min
(1.347” Min) |
13.70 Max
(0.539” Max) |
106 | 6850+25%, -30% | 1.58 | 14.5 | 22.8 |
| 5975003801 | 75 Material |
61.00 ±1.30
(2.400”) |
35.55 ±0.85
(1.40”) |
12.70 ±0.50
(0.500”) |
106 | 6850 ±25% | 1.58 | 14.5 | 22.8 |
| 5975022021 | 75 Material |
50.40 Max
(1.984” Max) |
32.50 Min
(1.278” Min) |
20.00 Max
(0.787” Max) |
91 | 7770+25%, -30% | 1.44 | 12.7 | 18.27 |
| 5975021921 | 75 Material |
50.40 Max
(1.984” Max) |
32.50 Min
(1.278” Min) |
16.85 Max
(0.663” Max) |
76 | 6500+25%, -30% | 1.2 | 12.7 | 15.3 |
| 5975002701 | 75 Material |
35.55 ±0.75
(1.400”) |
23.00 ±0.55
(0.906”) |
12.70 ±0.50
(0.500”) |
33 | 5500 ±25% | 0.78 | 8.9 | 7 |
| 5975006401 | 75 Material |
25.40 ±0.60
(1.000”) |
15.50 ±0.50
(0.610”) |
12.70 ±0.50
(0.500”) |
19 | 6250 ±20% | 0.62 | 6.2 | 3.8 |
| 5975001401 | 75 Material |
25.40 ±0.60
(1.000”) |
15.50 ±0.50
(0.610”) |
08.15 ±0.30
(0.321”) |
12 | 4000 ±25% | 0.40 | 6.2 | 2.42 |
| 5975007621 | 75 Material |
23.00 Max
(0.905” Max) |
12.90 Min
(0.508” Min) |
13.65 Max
(0.537” Max) |
15 | 6100+20%, -25% | 0.52 | 5.4 | 2.83 |
| 5975007601 | 75 Material |
22.10 ±0.40
(0.870”) |
13.70 ±0.30
(0.539”) |
12.70 ±0.45
(0.500”) |
15 | 6100 ±20% | 0.52 | 5.4 | 2.83 |
| 5975001821 | 75 Material |
23.00 Max
(0.905” Max) |
12.90 Min
(0.508” Min) |
07.10 Max
(0.279” Max) |
7.2 | 3025+20%, -25% | 0.262 | 5.4 | 1.42 |
| 5975001801 | 75 Material |
22.10 ±0.40
(0.870”) |
13.70 ±0.30
(0.539”) |
06.35 ±0.25
(0.250”) |
7.2 | 3025 ±20% | 0.262 | 5.4 | 1.42 |
| 5975000501 | 75 Material |
21.00 ±0.35
(0.827”) |
13.20 ±0.30
(0.520”) |
11.90 ±0.40
(0.469”) |
12 | 5500 ±20% | 0.46 | 5.2 | 2.36 |
| 5975000621 | 75 Material |
21.85 Max
(0.860” Max) |
12.40 Min
(0.489” Min) |
07.10 Max
(0.279” Max) |
6.4 | 2950+20%, -25% | 0.243 | 5.2 | 1.26 |
| 5975000601 | 75 Material |
21.00 ±0.35
(0.827”) |
13.20 ±0.30
(0.520”) |
06.35 ±0.25
(0.250”) |
6.4 | 2950 ±20% | 0.243 | 5.2 | 1.26 |
| 5975005121 | 75 Material |
16.90 Max
(0.665” Max) |
08.80 Min
(0.347” Min) |
5.25 Max
(0.206” Max) |
2.920 | 2350+20%, -25% | 0.145 | 3.85 | 0.56 |
| 5977005121 | 77 Material |
16.90 Max
(0.665” Max) |
08.80 Min
(0.347” Min) |
5.25 Max
(0.206” Max) |
2.920 | 1015+20%, -25% | 0.15 | 3.9 | 0.56 |
| 5975004921 | 75 Material |
16.90 Max
(0.665” Max) |
08.80 Min
(0.347” Min) |
07.10 Max
(0.279” Max) |
4 | 3225+20%, -25% | 0.199 | 3.85 | 0.77 |
| 5975004901 | 75 Material |
16.00 ±0.40
(0.630”) |
09.60 ±0.30
(0.378”) |
06.35 ±0.25
(0.250”) |
4 | 3225 ±20% | 0.199 | 3.85 | 0.77 |
| 5975005101 | 75 Material |
16.00 ±0.40
(0.630”) |
09.60 ±0.30
(0.378”) |
04.75 -0.25
(0.182”) |
2.8 | 2350 ±25% | 0.145 | 3.85 | 0.56 |
| 5975001901 | 75 Material |
12.70 ±0.25
(0.500”) |
07.90 ±0.20
(0.311”) |
12.70 ±0.35
(0.500”) |
4.7 | 6000 ±20% | 0.299 | 3.12 | 0.93 |
| 5975001121 | 75 Material |
13.45 Max
(0.529” Max) |
07.20 Min
(0.284” Min) |
07.10 Max
(0.279” Max) |
2.4 | 3000 +20%, -25% | 0.15 | 3.12 | 0.47 |
| 5975001101 | 75 Material |
12.70 ±0.25
(0.500”) |
07.90 ±0.20
(0.311”) |
06.35 ±0.25
(0.250”) |
2.4 | 3000 ±20% | 0.15 | 3.12 | 0.47 |
| 5975000321 | 75 Material |
13.45 Max
(0.529” Max) |
06.45 Min
(0.254” Min) |
05.40 Max
(0.212” Max) |
2 | 2725+20%, -25% | 0.129 | 2.95 | 0.38 |
| 5975000301 | 75 Material |
12.70 ±0.25
(0.500”) |
07.15 ±0.20
(0.281”) |
04.90 -0.25
(0.188”) |
2 | 2725 ±20% | 0.129 | 2.95 | 0.38 |
| 5975000221 | 75 Material |
10.20 Max
(0.401” Max) |
04.10 Min
(0.162” Min) |
03.80 Max
(0.149” Max) |
0.83 | 2200+-20%, | 0.073 | 2.07 | 0.15 |
| 5975002111 | 75 Material |
4.99 Max
(0.196” Max) |
2.16 Min
(0.085” Min) |
1.44 Max
(0.056” Max) |
0.0904 | 770 +/- 20% | 0.016 | 0.01 | 0.016 |
| 5975000211 | 75 Material |
09.74 Max
(0.383” Max) |
04.56 Min
(0.180” Min) |
03.34 Max
(0.131” Max) |
0.83 | 2200 ±20% | 0.073 | 2.07 | 0.15 |
| 5975000201 | 75 Material |
09.50 ±0.20
(0.374”) |
04.75 ±0.15
(0.187”) |
03.30 -0.25
(0.125”) |
0.83 | 2200 ±20% | 0.073 | 2.07 | 0.15 |
| 5975000101 | 75 Material |
05.95 -0.25
(0.230”) |
03.05 ±0.10
(0.120”) |
01.65 -0.25
(0.060”) |
0.14 | 785 ±20% | 0.02 | 1.3 | 0.027 |
| 5975002101 | 75 Material |
04.95 -0.25
(0.190”) |
02.20 +0.15
(0.090”) |
01.40 -0.25
(0.050”) |
0.09 | 770 ±20% | 0.0158 | 1.02 | 0.0157 |
| 5975000801 | 75 Material |
04.00 ±0.15
(0.157”) |
02.40+0.15
(0.094”) |
01.27 ±0.13
(0.050”) |
0.05 | 650 ±20% | 0.010 | 0.96 | 0.0098 |
| 5978014001 | 78 Material |
101.60 ±2.10
(4.000”) |
75.20 ±1.50
(2.961”) |
24.75 ±0.55
(0.974”) |
425 | 3425 ±25% | 3.24 | 27.4 | 88.7 |
| 5978008001 | 78 Material |
156.60 ±4.00
(6.165”) |
70.30 ±1.80
(2.768”) |
19.05 ±0.50
(0.750”) |
1,240.00 | 7000 ±25% | 7.6 | 31.7 | 241.8 |
| 5978015901 | 78 Material |
100.00 ±2.00
(3.937”) |
55.00 ±1.20
(2.165”) |
12.70 ±0.30
(0.500”) |
320 | 3500 ±25% | 2.77 | 23 | 63.7 |
| 5978011101 | 78 Material |
073.65 ±1.50
(2.900”) |
38.85 ±0.75
(1.530”) |
12.70 ±0.40
(0.500”) |
188 | 3740 ±25% | 2.13 | 16.5 | 35.3 |
| 5977011101 | 77 Material |
073.65 ±1.50
(2.900”) |
38.85 ±0.75
(1.530”) |
12.70 ±0.40
(0.500”) |
188 | 3500 ±25% | 2.14 | 16.5 | 35.3 |
| 5978003821 | 78 Material |
062.80 Max
(2.472” Max) |
34.20 Min
(1.347” Min) |
13.70 Max
(0.539” Max) |
106 | 3155+25%, -30% | 1.57 | 14.5 | 22.8 |
| 5978003801 | 78 Material |
061.00 ±1.30
(2.402”) |
35.55 ±0.85
(1.400”) |
12.70 ±0.50
(0.500”) |
106 | 3155 ±25% | 1.57 | 14.5 | 22.8 |
| 5977003821 | 77 Material |
062.80 Max
(2.472” Max) |
34.20 Min
(1.347” Min) |
13.70 Max
(0.539” Max) |
106 | 2950+25%, -30% | 1.57 | 14.4 | 22.8 |
| 5977003801 | 77 Material |
061.00 ±1.30
(2.402”) |
35.55 ±0.85
(1.400”) |
12.70 ±0.50
(0.500”) |
106 | 2950 ±25% | 1.57 | 14.4 | 22.8 |
| 5978018701 | 78 Material |
056.30 ±1.20
(2.217”) |
32.70 ±0.70
(1.287”) |
18.00 ±0.50
(0.709”) |
135 | 4500 ±25% | 2.07 | 13.3 | 27.6 |
| 5978017301 | 78 Material |
049.20 ±1.20
(1.902”) |
32.50 ±0.80
(1.252”) |
19.05 ±0.35
(0.750”) |
94 | 3670 ±25% | 1.55 | 12.2 | 18.9 |
| 5978018601 | 78 Material |
043.60 ±1.00
(1.717”) |
23.10 ±0.50
(0.909”) |
18.00 ±0.50
(0.709”) |
90 | 5260 ±25% | 1.78 | 9.8 | 17.5 |
| 5975002721 | 75 Material |
036.80 Max
(1.448” Max) |
21.95 Min
(0.865” Min) |
13.70 Max
(0.539” Max) |
33.70 | 5500+25%, -30% | 0.78 | 8.9 | 7 |
| 5978002721 | 78 Material |
036.80 Max
(1.448” Max) |
21.95 Min
(0.865” Min) |
13.70 Max
(0.539” Max) |
33 | 2545+25%, -30% | 0.79 | 8.9 | 7 |
| 5978002701 | 78 Material |
035.55 ±0.75
(1.400”) |
23.00 ±0.55
(0.900”) |
12.70 ±0.50
(0.500”) |
33 | 2545 ±25% | 0.906 | 8.9 | 7 |
| 5977002721 | 77 Material |
036.80 Max
(1.448” Max) |
21.95 Min
(0.865” Min) |
13.70 Max
(0.539” Max) |
33 | 2250+25%, -30% | 0.78 | 8.9 | 7 |
| 5977002701 | 77 Material |
035.55 ±0.75
(1.400”) |
23.00 ±0.55
(0.906”) |
12.70 ±0.50
(0.500”) |
33 | 2400 ±25% | 0.78 | 8.9 | 7 |
| 5978001721 | 78 Material |
033.00 Max
(1.299” Max) |
18.05 Min
(0.711” Min) |
10.30 Max
(0.405” Max) |
23 | 2230+25%, -30% | 0.59 | 7.6 | 4.5 |
| 5978001701 | 78 Material |
031.75 ±0.75
(1.250”) |
19.05 ±0.50
(0.750”) |
09.50 ±0.30
(0.374”) |
23 | 2230 ±25% | 0.59 | 7.6 | 4.5 |
| 5977001721 | 77 Material |
033.00 Max
(1.299” Max) |
18.05 Min
(0.711” Min) |
10.30 Max
(0.405” Max) |
23 | 2090+25%, -30% | 0.59 | 7.6 | 4.5 |
| 5977001701 | 77 Material |
031.75 ±0.75
(1.250”) |
19.05 ±0.50
(0.750”) |
09.50 ±0.30
(0.374”) |
23 | 2090 ±25% | 0.59 | 7.6 | 4.5 |
| 5977001621 | 77 Material |
032.35 Max
(1.273” Max) |
18.05 Min
(0.711” Min) |
08.70 Max
(0.342” Max) |
18 | 1665+25%, -30% | 0.47 | 7.6 | 3.53 |
| 5977001601 | 77 Material |
031.10 ±0.75
(1.221”) |
19.05 ±0.50
(0.750”) |
07.90 ±0.30
(0.311”) |
18 | 1665 ±25% | 0.47 | 7.6 | 3.53 |
| 5978001201 | 78 Material |
029.00 ±0.65
(1.142”) |
19.00 ±0.50
(0.748”) |
13.85 ±0.30
(0.545”) |
26 | 2695 ±25% | 0.68 | 7.3 | 5 |
| 5977001221 | 77 Material |
030.15 Max
(1.187” Max) |
18.00 Min
(0.709” Min) |
14.65 Max
(0.576” Max) |
26 | 2520+25%, -30% | 0.69 | 7.3 | 5.1 |
| 5977001201 | 77 Material |
029.00 ±0.65
(1.142”) |
19.00 ±0.50
(0.748”) |
13.85 ±0.30
(0.545”) |
26 | 2520 ±25% | 0.69 | 7.3 | 5.1 |
| 5975001021 | 75 Material |
030.15 Max
(1.187” Max) |
18.00 Min
(1.278” Min) |
16.85 Max
(0.663” Max) |
13.35 | 3175+20%, -25% | 0.369 | 7.3 | 2.7 |
| 5977001021 | 77 Material |
030.15 Max
(1.187” Max) |
18.00 Min
(0.709” Min) |
08.25 Max
(0.324” Max) |
13 | 1365+25%, -30% | 0.37 | 7.3 | 2.7 |
| 5977001001 | 77 Material |
029.00 ±0.65
(1.142”) |
19.00 ±0.50
(0.748”) |
07.50 ±0.25
(0.295”) |
13 | 1365 ±25% | 0.37 | 7.3 | 2.7 |
| 5977006401 | 77 Material |
025.40 ±0.60
(1.000”) |
15.50 ±0.50
(0.610”) |
12.70 ±0.50
(0.500”) |
19 | 2700 ±25% | 0.62 | 6.2 | 3.8 |
| 5977001421 | 77 Material |
026.50 Max
(1.043” Max) |
14.50 Min
(0.571” Min) |
08.95 Max
(0.352” Max) |
12 | 1600+20%, -25% | 0.40 | 6.2 | 2.44 |
| 5977001401 | 77 Material |
025.40 ±0.60
(1.000”) |
15.50 ±0.50
(0.610”) |
08.15 ±0.30
(0.321”) |
12 | 1730 ±25% | 0.40 | 6.2 | 2.44 |
| 5977001321 | 77 Material |
026.50 Max
(1.043” Max) |
14.50 Min
(0.571” Min) |
07.10 Max
(0.279” Max) |
9.6 | 1350+25%, -30% | 0.308 | 6.2 | 1.9 |
| 5977001301 | 77 Material |
025.40 ±0.60
(1.000”) |
15.50 ±0.50
(0.610”) |
06.35 ±0.25
(0.250”) |
9.6 | 1350 ±25% | 0.308 | 6.2 | 1.9 |
| 5978007621 | 78 Material |
023.00 Max
(0.905” Max) |
12.90 Min
(0.508” Min) |
13.65 Max
(0.537” Max) |
15 | 2795+25%, -30% | 0.52 | 5.4 | 2.83 |
| 5978007601 | 78 Material |
022.10 ±0.40
(0.870”) |
13.70 ±0.30
(0.539”) |
12.70 ±0.45
(0.500”) |
15 | 2795 ±25% | 0.52 | 5.4 | 2.83 |
| 5977007601 | 77 Material |
022.10 ±0.40
(0.870”) |
13.70 ±0.30
(0.539”) |
12.70 ±0.45
(0.500”) |
15 | 2615 ±25% | 0.52 | 5.4 | 2.83 |
| 5977001821 | 77 Material |
023.00 Max
(0.905” Max) |
12.90 Min
(0.508” Min) |
07.10 Max
(0.279” Max) |
7.2 | 1305+25%, -30% | 0.262 | 5.4 | 1.42 |
| 5977001801 | 77 Material |
022.10 ±0.40
(0.870”) |
13.70 ±0.30
(0.539”) |
06.35 ±0.25
(0.250”) |
7.2 | 1305 ±25% | 0.262 | 5.4 | 1.42 |
| 5977000501 | 77 Material |
021.00 ±0.35
(0.827”) |
13.20 ±0.30
(0.520”) |
11.90 ±0.40
(0.469”) |
12 | 2375 ±25% | 0.46 | 5.2 | 2.36 |
| 5977000621 | 77 Material |
021.85 Max
(0.860” Max) |
12.40 Min
(0.489” Min) |
07.10 Max
(0.279” Max) |
6.4 | 1270+25%, -30% | 0.243 | 5.2 | 1.26 |
| 5977000601 | 77 Material |
021.00 ±0.35
(0.827”) |
13.20 ±0.30
(0.520”) |
06.35 ±0.25
(0.250”) |
6.4 | 1270 ±25% | 0.243 | 5.2 | 1.26 |
| 5977004901 | 77 Material |
016.00 ±0.40
(0.630”) |
09.60 ±0.30
(0.378”) |
06.35 ±0.25
(0.250”) |
4 | 1400 ±25% | 0.199 | 3.85 | 0.77 |
| 5977005101 | 77 Material |
016.00 ±0.40
(0.630”) |
09.60 ±0.30
(0.378”) |
04.75 -0.25
(0.182”) |
2.8 | 1015 ±25% | 0.145 | 3.85 | 0.56 |
| 5975001921 | 75 Material |
013.45 Max
(0.529” Max) |
07.20 Min
(0.284” Min) |
13.55 Max
(0.533” Max) |
4.950 | 6000+20%, -25% | 0.30 | 3.12 | 0.93 |
| 5977001921 | 77 Material |
013.45 Max
(0.529” Max) |
07.20 Min
(0.284” Min) |
13.55 Max
(0.533” Max) |
4.7 | 2595+25%, -30% | 0.30 | 3.12 | 0.93 |
| 5977001901 | 77 Material |
012.70 ±0.25
(0.500”) |
07.90 ±0.20
(0.311”) |
12.70 ±0.35
(0.500”) |
4.7 | 2595 ±25% | 0.30 | 3.12 | 0.93 |
| 5977001121 | 77 Material |
013.45 Max
(0.529” Max) |
07.20 Min
(0.284” Min) |
07.10 Max
(0.279” Max) |
2.4 | 1300+25%, -30% | 0.15 | 3.12 | 0.47 |
| 5977001101 | 77 Material |
012.70 ±0.25
(0.500”) |
07.90 ±0.20
(0.311”) |
06.35 ±0.25
(0.250”) |
2.4 | 1300 ±25% | 0.15 | 3.12 | 0.47 |
| 5977000321 | 77 Material |
013.45 Max
(0.529” Max) |
06.45 Min
(0.254” Min) |
05.40 Max
(0.212” Max) |
2 | 1180+25%, | 0.129 | 2.95 | 0.38 |
| 5977000301 | 77 Material |
012.70 ±0.25
(0.500”) |
07.15 ±0.20
(0.281”) |
04.90 -0.25
(0.188”) |
2 | 1180 ±25% | 0.129 | 2.95 | 0.38 |
| 5977000221 | 77 Material |
010.20 Max
(0.401” Max) |
04.10 Min
(0.162” Min) |
03.80 Max
(0.149” Max) |
0.83 | 945+25%, -30% | 0.073 | 2.07 | 0.15 |
| 5977000211 | 77 Material |
009.74 Max
(0.383” Max) |
04.56 Min
(0.180” Min) |
03.34 Max
(0.131” Max) |
0.83 | 945 ±25% | 0.073 | 2.07 | 0.15 |
| 5977000201 | 77 Material |
009.50 ±0.20
(0.374”) |
04.75 ±0.15
(0.187”) |
03.30 -0.25
(0.125”) |
0.83 | 945 ±25% | 0.073 | 2.07 | 0.15 |
| 5977000101 | 77 Material |
005.95 -0.25
(0.229”) |
03.05 ±0.10
(0.120”) |
01.65 -0.25
(0.060”) |
0.14 | 420 ±25% | 0.02 | 1.3 | 0.027 |
| 5978002101 | 78 Material |
004.95 -0.25
(0.190”) |
02.20 +0.15
(0.090”) |
01.40 -0.25
(0.050”) |
0.09 | 440 ±25% | 0.016 | 1.02 | 0.0157 |
| 5943017501 | 43 Material® |
102.60 ±2.10
(4.039”) |
63.50 ±1.30
(2.500”) |
15.85 ±0.35
(0.624”) |
360 | 1225 ±25% | 3 | 25.1 | 76.5 |
| 5943015901 | 43 Material® |
100.00 ±2.00
(3.937”) |
55.00 ±1.20
(2.165”) |
12.70 ±0.30
(0.500”) |
320 | 1215 ±25% | 2.77 | 23 | 63.7 |
| 5943011101 | 43 Material® |
073.65 ±1.50
(2.900”) |
38.85 ±0.75
(1.530”) |
12.70 ±0.40
(0.500”) |
188 | 1300 ±25% | 2.14 | 16.5 | 35.3 |
| 5952003821 | 52 Material |
061.80 Max
(2.433” Max) |
34.25 Min
(1.349” Min) |
13.70 Max
(0.539” Max) |
107.35 | 325+-25% | 1.58 | 14.5 | 22.8 |
| 5943003821 | 43 Material® |
062.80 Max
(2.472” Max) |
34.20 Min
(1.347” Min) |
13.70 Max
(0.539” Max) |
106 | 1075+20%, -25% | 1.58 | 14.5 | 22.8 |
| 5943003801 | 43 Material® |
061.00 ±1.30
(2.400”) |
35.55 ±0.85
(1.400”) |
12.70 ±0.50
(0.500”) |
120 | 1075 ±20% | 1.58 | 14.5 | 22.8 |
| 5943017301 | 43 Material® |
047.50 ±1.20
(1.902”) |
31.50 ±0.80
(1.252”) |
19.05 ±0.35
(0.750”) |
94 | 1275 ±25% | 1.55 | 12.2 | 18.9 |
| 5943018601 | 43 Material® |
043.60 ±1.00
(1.717”) |
23.10 ±0.50
(0.909”) |
18.00 ±0.50
(0.709”) |
90 | 1830 ±25% | 1.78 | 9.8 | 17.5 |
| 5943002721 | 43 Material® |
036.80 Max
(1.449” Max) |
21.95 Min
(0.864” Min) |
13.70 Max
(0.539” Max) |
33 | 885+20%, -25% | 0.78 | 8.9 | 7 |
| 5943002701 | 43 Material® |
035.55 ±0.75
(1.400”) |
23.00 ±0.55
(0.906”) |
12.70 ±0.50
(0.500”) |
33 | 885 ±20% | 0.78 | 8.9 | 7 |
| 5943001701 | 43 Material® |
031.75 ±0.75
(1.250”) |
19.05 ±0.50
(0.750”) |
09.50 ±0.30
(0.374”) |
23 | 775 ±20% | 0.59 | 7.6 | 4.5 |
| 5943001601 | 43 Material® |
031.10 ±0.75
(1.224”) |
19.05 ±0.50
(0.750”) |
07.90 ±0.30
(0.312”) |
18 | 620 ±20% | 0.47 | 7.6 | 3.53 |
| 5943001201 | 43 Material® |
029.00 ±0.65
(1.142”) |
19.00 ±0.50
(0.748”) |
13.85 ±0.30
(0.545”) |
26 | 950 ±20% | 0.69 | 7.3 | 5 |
| 5943001021 | 43 Material® |
030.15 Max
(1.187” Max) |
18.00 Min
(0.708” Min) |
08.25 Max
(0.325” Max) |
13 | 510+20%, -25% | 0.37 | 7.3 | 2.7 |
| 5943001001 | 43 Material® |
029.00 ±0.65
(1.142”) |
19.00 ±0.50
(0.748”) |
07.50 ±0.25
(0.295”) |
13 | 510 ±20% | 0.37 | 7.3 | 2.7 |
| 5943006401 | 43 Material® |
025.40 ±0.60
(1.000”) |
15.50 ±0.50
(0.610”) |
12.70 ±0.50
(0.500”) |
19 | 1000 ±20% | 0.62 | 6.2 | 3.8 |
| 5943006421 | 43 Material® |
026.50 Max
(1.043” Max) |
14.50 Min
(0.571” Min) |
13.70 Max
(0.539” Max) |
19.50 | 1000+20%, -25% | 0.62 | 6.2 | 3.8 |
| 5943001421 | 43 Material® |
026.50 Max
(1.043” Max) |
14.50 Min
(0.571” Min) |
08.95 Max
(0.352” Max) |
12 | 645+20%, -25% | 0.40 | 6.2 | 24.4 |
| 5943001401 | 43 Material® |
025.40 ±0.60
(1.000”) |
15.50 ±0.50
(0.610”) |
08.15 ±0.321
(0.320”) |
12 | 645 ±20% | 0.40 | 6.2 | 24.4 |
| 5943001301 | 43 Material® |
025.40 ±0.60
(1.000”) |
15.50 ±0.50
(0.610”) |
06.35 ±0.25
(0.250”) |
9.6 | 500 ±20% | 0.308 | 6.2 | 1.9 |
| 5943007601 | 43 Material® |
022.10 ±0.40
(0.870”) |
13.70 ±0.30
(0.540”) |
12.70 ±0.45
(0.500”) |
15 | 970 ±20% | 0.52 | 5.4 | 2.83 |
| 5943001821 | 43 Material® |
023.00 Max
(0.905” Max) |
12.90 Min
(0.508” Min) |
07.10 Max
(0.279” Max) |
7.2 | 485+20%, -25% | 0.262 | 5.4 | 1.42 |
| 5943001801 | 43 Material® |
022.10 ±0.40
(0.870”) |
13.70 ±0.30
(0.539”) |
06.35 ±0.25
(0.250”) |
7.2 | 485 ±20% | 0.262 | 5.4 | 1.42 |
| 5943000521 | 43 Material® |
021.85 Max
(0.860” Max) |
12.40 Min
(0.489” Min) |
12.80 Max
(0.503” Max) |
12 | 885+20%, -25% | 0.46 | 5.2 | 2.36 |
| 5943000501 | 43 Material® |
021.00 ±0.35
(0.827”) |
13.20 ±0.30
(0.520”) |
11.90 ±0.40
(0.469”) |
12 | 885 ±20% | 0.46 | 5.2 | 2.36 |
| 5943000601 | 43 Material® |
021.00 ±0.35
(0.827”) |
13.20 ±0.30
(0.520”) |
06.35 ±0.25
(0.250”) |
6.4 | 470 ±20% | 0.243 | 5.2 | 1.26 |
| 5943005121 | 43 Material® |
016.90 Max
(0.665” Max) |
08.80 Min
(0.347” Min) |
5.25 Max
(0.206” Max) |
2.920 | 375+20%, -25% | 0.145 | 3.85 | 0.56 |
| 5977004921 | 77 Material |
016.90 Max
(0.665” Max) |
08.80 Min
(0.347” Min) |
07.10 Max
(0.279” Max) |
4.150 | 1400+25%, -30% | 0.2 | 3.9 | 0.77 |
| 5943004921 | 43 Material® |
016.90 Max
(0.665” Max) |
08.80 Min
(0.347” Min) |
07.10 Max
(0.279” Max) |
4 | 520+20%, -25% | 0.199 | 3.85 | 0.77 |
| 5943004901 | 43 Material® |
016.00 ±0.40
(0.630”) |
09.60 ±0.30
(0.378”) |
06.35 ±0.25
(0.250”) |
4 | 520 ±20% | 0.199 | 3.85 | 0.77 |
| 5943005101 | 43 Material® |
016.00 ±0.40
(0.630”) |
09.60 ±0.30
(0.378”) |
04.75 -0.25
(0.182”) |
2.8 | 375 ±20% | 0.145 | 3.85 | 0.56 |
| 5943001921 | 43 Material® |
013.45 Max
(0.529” Max) |
07.20 Min
(0.284” Min) |
13.55 Max
(0.533” Max) |
4.7 | 965+25%, -30% | 0.299 | 3.12 | 0.93 |
| 5943001901 | 43 Material® |
012.70 ±0.25
(0.500”) |
07.90 ±0.20
(0.311”) |
12.70 ±0.35
(0.500”) |
4.7 | 965 ±20% | 0.299 | 3.12 | 0.93 |
| 5943001121 | 43 Material® |
013.45 Max
(0.529” Max) |
07.20 Min
(0.284” Min) |
07.10 Max
(0.279” Max) |
2.4 | 480+20%, -25% | 0.15 | 3.12 | 0.47 |
| 5943001101 | 43 Material® |
012.70 ±0.25
(0.500”) |
07.90 ±0.20
(0.311”) |
06.35 ±0.25
(0.250”) |
2.4 | 480 ±20% | 0.15 | 3.12 | 0.47 |
| 5943000321 | 43 Material® |
013.45 Max
(0.529” Max) |
06.45 Min
(0.254” Min) |
05.40 Max
(0.212” Max) |
2 | 440+20%, -25% | 0.129 | 2.95 | 0.38 |
| 5961000221 | 61 Material™ |
010.20 Max
(0.401” Max) |
04.10 Min
(0.162” Min) |
03.80 Max
(0.149” Max) |
0.880 | 55+-25% | 0.072 | 2.07 | 0.15 |
| 5943000221 | 43 Material® |
010.20 Max
(0.401” Max) |
04.10 Min
(0.162” Min) |
03.80 Max
(0.149” Max) |
0.83 | 350+20%, -25% | 0.072 | 2.07 | 0.15 |
| 5943000211 | 43 Material® |
009.74 Max
(0.383” Max) |
04.56 Min
(0.180” Min) |
03.34 Max
(0.132” Max) |
0.83 | 350 ±20% | 0.072 | 2.07 | 0.15 |
| 5943000201 | 43 Material® |
009.50 ±0.20
(0.374”) |
04.75 ±0.15
(0.187”) |
03.175+/ -0.25
(0.125”) |
0.83 | 350 ±20% | 0.072 | 2.07 | 0.15 |
| 5943000911 | 43 Material® |
005.99 Max
(0.235” Max) |
02.91 Min
(0.115” Min) |
03.22 Max
(0.126” Max) |
0.29 | 315 ±20% | 0.041 | 1.3 | 0.053 |
| 5943000901 | 43 Material® |
005.95 -0.25
(0.230”) |
03.05 ±0.10
(0.120”) |
03.05 ±0.10
(0.120”) |
0.29 | 315 ±20% | 0.041 | 1.3 | 0.053 |
| 5975000111 | 75 Material |
005.99 Max
(0.235” Max) |
02.91 Min
(0.115” Min) |
01.69 Max
(0.066” Max) |
0.832 | 785 +/- 20% | 0.02 | 1.3 | 0.027 |
| 5977000111 | 77 Material |
005.99 Max
(0.235” Max) |
02.91 Min
(0.115” Min) |
01.69 Max
(0.066” Max) |
0.832 | 420 ±25% | 0.02 | 1.3 | 0.03 |
| 5943000111 | 43 Material® |
005.99 Max
(0.235” Max) |
02.91 Min
(0.115” Min) |
01.69 Max
(0.066” Max) |
0.14 | 158 ±20% | 0.02 | 1.3 | 0.027 |
| 5943000101 | 43 Material® |
005.95 -0.25
(0.230”) |
03.05 ±0.10
(0.120”) |
01.65 -0.25
(0.060”) |
0.14 | 158 ±20% | 0.02 | 1.3 | 0.027 |
| 5943000801 | 43 Material® |
003.95 ±0.15
(0.155”) |
02.15 +0.15
(0.088”) |
01.40 -0.25
(0.050”) |
0.05 | 117 ±20% | 0.011 | 0.92 | 0.0097 |
| 5952020801 | 52 Material |
35.25 ±0.75
(1.388”) |
22.60 ±0.55
(0.890”) |
12.70 ±0.50
(0.500”) |
38.26 | 283 ±25% | 0.792 | 8.79 | 6.959 |
| 5952020701 | 52 Material |
28.80 ±0.65
(1.134”) |
18.70 ±0.50
(0.736”) |
07.50 ±0.25
(0.295”) |
14.81 | 162 ±25% | 0.374 | 7.23 | 2.702 |
| 5952020601 | 52 Material |
21.70 ±0.40
(0.854”) |
13.50 ±0.30
(0.531”) |
06.35 ±0.25
(0.250”) |
7.54 | 151 ±25% | 0.256 | 5.33 | 1.368 |
| 5952020501 | 52 Material |
12.45 ±0.25
(0.490”) |
07.80 ±0.20
(0.307”) |
06.35 ±0.25
(0.250”) |
2.46 | 148 ±25% | 0.144 | 3.06 | 0.442 |
| 5952020401 | 52 Material |
12.60 ±0.25
(0.496”) |
06.99 ±0.20
(0.275”) |
04.90 -0.25
(0.188”) |
2.16 | 141 ±25% | 0.13 | 2.9 | 0.378 |
| 5952020301 | 52 Material |
09.42 ±0.20
(0.371”) |
04.72 ±0.15
(0.186”) |
03.30 -0.25
(0.125”) |
0.87 | 110 ±25% | 0.072 | 2.06 | 0.147 |
| 5952020201 | 52 Material |
05.84 -0.26
(0.225”) |
03.00 ±0.10
(0.118”) |
01.65 -0.25
(0.060”) |
0.15 | 49 ±25% | 0.02 | 1.28 | 0.0256 |
| 5961003821 | 61 Material™ |
62.80 Max
(2.472” Max) |
34.20 Min
(1.347” Min) |
13.70 Max
(0.539” Max) |
106 | 170 ±25% | 1.58 | 14.5 | 22.8 |
| 5961003801 | 61 Material™ |
61.00 ±1.30
(2.400”) |
35.55 ±0.85
(1.400”) |
12.70 ±0.50
(0.500”) |
106 | 170 ±25% | 1.58 | 14.5 | 22.8 |
| 5961002721 | 61 Material™ |
36.80 Max
(1.448” Max) |
21.95 Min
(0.865” Min) |
13.70 Max
(0.539” Max) |
33 | 140 ±25% | 0.78 | 8.9 | 7 |
| 5961002701 | 61 Material™ |
35.55 ±0.75
(1.400”) |
23.00 ±0.55
(0.900”) |
12.70 ±0.50
(0.906”) |
33 | 140 ±25% | 0.78 | 8.9 | 7 |
| 5961001721 | 61 Material™ |
33.00 Max
(1.299” Max) |
18.05 Min
(0.711” Min) |
10.30 Max
(0.405” Max) |
23 | 120 ±25% | 0.59 | 7.6 | 4.5 |
| 5961001701 | 61 Material™ |
31.75 ±0.75
(1.250”) |
19.05 ±0.50
(0.750”) |
09.50 ±0.30
(0.374”) |
23 | 120 ±25% | 0.59 | 7.6 | 4.5 |
| 5961001221 | 61 Material™ |
30.15 Max
(1.187” Max) |
18.00 Min
(0.709” Min) |
14.64 Max
(0.576” Max) |
26 | 145 ±25% | 0.68 | 7.3 | 5 |
| 5961001201 | 61 Material™ |
29.00 ±0.65
(1.142”) |
19.00 ±0.50
(0.748”) |
13.85 ±0.30
(0.545”) |
26 | 145 ±25% | 0.68 | 7.3 | 5 |
| 5961001001 | 61 Material™ |
29.00 ±0.65
(1.142”) |
19.00 ±0.50
(0.748”) |
07.50 ±0.25
(0.295”) |
13 | 80 ±25% | 0.37 | 7.3 | 2.7 |
| 5961001821 | 61 Material™ |
23.00 Max
(0.905” Max) |
12.90 Min
(0.508” Min) |
07.10 Max
(0.279” Max) |
7.2 | 75 ±25% | 0.262 | 5.4 | 1.42 |
| 5961001801 | 61 Material™ |
22.10 ±0.40
(0.870”) |
13.70 ±0.30
(0.539”) |
06.35 ±0.25
(0.250”) |
7.2 | 75 ±25% | 0.262 | 5.4 | 1.42 |
| 5961000501 | 61 Material™ |
21.00 ±0.35
(0.827”) |
13.20 ±0.30
(0.520”) |
11.90 ±0.40
(0.469”) |
12 | 135 ±25% | 0.46 | 5.2 | 2.36 |
| 5943000621 | 43 Material® |
21.85 Max
(0.860” Max) |
12.40 Min
(0.489” Min) |
07.10 Max
(0.280” Max) |
6.620 | 470+20%, -25% | 0.243 | 5.2 | 1.26 |
| 5961000621 | 61 Material™ |
21.85 Max
(0.860” Max) |
12.40 Min
(0.489” Min) |
07.10 Max
(0.279” Max) |
6.4 | 75 ±25% | 0.243 | 5.2 | 1.26 |
| 5961000601 | 61 Material™ |
21.00 ±0.35
(0.827”) |
13.20 ±0.30
(0.520”) |
06.35 ±0.25
(0.250”) |
6.4 | 75 ±25% | 0.243 | 5.2 | 1.26 |
| 5961004921 | 61 Material™ |
16.90 Max
(0.665” Max) |
08.80 Min
(0.347” Min) |
07.10 Max
(0.279” Max) |
4 | 80 ±25% | 0.199 | 3.85 | 0.77 |
| 5961004901 | 61 Material™ |
16.00 ±0.40
(0.630”) |
09.60 ±0.30
(0.378”) |
06.35 ±0.25
(0.250”) |
4 | 80 ±25% | 0.199 | 3.85 | 0.77 |
| 5961001921 | 61 Material™ |
13.45 Max
(0.529” Max) |
07.20 Min
(0.284” Min) |
13.55 Max
(0.533” Max) |
4.7 | 150 ±25% | 0.299 | 3.12 | 0.93 |
| 5961001901 | 61 Material™ |
12.70 ±0.25
(0.500”) |
07.90 ±0.20
(0.311”) |
12.70 ±0.35
(0.500”) |
4.7 | 150 ±25% | 0.299 | 3.12 | 0.93 |
| 5961001121 | 61 Material™ |
13.45 Max
(0.529” Max) |
07.20 Min
(0.283” Min) |
07.10 Max
(0.280” Max) |
2.4 | 75 ±25% | 0.15 | 3.12 | 0.47 |
| 5961001101 | 61 Material™ |
12.70 ±0.25
(0.500”) |
07.90 ±0.20
(0.311”) |
06.35 ±0.25
(0.250”) |
2.4 | 75 ±25% | 0.15 | 3.12 | 0.47 |
| 5961000301 | 61 Material™ |
12.70 ±0.25
(0.500”) |
07.15 ±0.20
(0.281”) |
04.90 -0.25
(0.188”) |
2 | 69 ±25% | 0.129 | 2.95 | 0.38 |
| 5961000211 | 61 Material™ |
09.74 Max
(0.383” Max) |
04.56 Min
(0.180” Min) |
03.34 Max
(0.131” Max) |
0.83 | 55 ±25% | 0.073 | 2.07 | 0.15 |
| 5961000201 | 61 Material™ |
09.50 ±0.20
(0.374”) |
04.75 ±0.15
(0.187”) |
03.30 -0.25
(0.125”) |
0.83 | 55 ±25% | 0.073 | 2.07 | 0.15 |
| 5961000111 | 61 Material™ |
05.99 Max
(0.235” Max) |
02.91 Min
(0.115” Min) |
01.69 Max
(0.066” Max) |
0.14 | 25 ±25% | 0.02 | 1.3 | 0.027 |
| 5961000101 | 61 Material™ |
05.95 -0.25
(0.229”) |
03.05 ±0.10
(0.120”) |
01.65 -0.25
(0.060”) |
0.14 | 25 ±25% | 0.02 | 1.3 | 0.027 |
| 5976000811 | 76 Material |
04.14 Max
(0.162” Max) |
02.08 Min
(0.082” Min) |
01.44 Max
(0.056” Max) |
0.0504 | 1430 u00b130% | 0.011 | 0.92 | 0.0098 |
| 5961000811 | 61 Material™ |
04.14 Max
(0.162” Max) |
02.11 Min
(0.084” Min) |
01.44 Max
(0.056” Max) |
0.05 | 15 Min | 0.011 | 0.92 | 0.0097 |
| 5961000801 | 61 Material™ |
03.95 ±0.15
(0.156”) |
02.15 +0.15
(0.088”) |
01.40 -0.25
(0.050”) |
0.05 | 14.4 Min | 0.011 | 0.92 | 0.0098 |
| 5967003801 | 67 Material |
61.00 ±1.30
(2.402”) |
35.55 ±0.85
(1.400”) |
12.70 ±0.50
(0.500”) |
106 | 55 +35%, -25% | 1.58 | 14.5 | 22.8 |
| 5967002701 | 67 Material |
35.55 ±0.75
(1.400”) |
23.00 ±0.55
(0.906”) |
12.70 ±0.50
(0.500”) |
33 | 45 +35%, -25% | 0.78 | 8.9 | 7 |
| 5967001701 | 67 Material |
31.75 ±0.75
(1.250”) |
19.05 ±0.50
(0.750”) |
09.50 ±0.30
(0.374”) |
23 | 39 +35%, -25% | 0.59 | 7.6 | 4.5 |
| 5967001201 | 67 Material |
29.00 ±0.65
(1.142”) |
19.00 ±0.50
(0.748”) |
13.85 ±0.30
(0.545”) |
26 | 47 +35%, -25% | 0.69 | 7.3 | 5 |
| 5967001001 | 67 Material |
29.00 ±0.65
(1.142”) |
19.00 ±0.50
(0.748”) |
07.50 ±0.25
(0.295”) |
21.0 | 25.5 +35%, -25% | 0.370 | 7.32 | 2.700 |
| 5967001801 | 67 Material |
22.10 ±0.40
(0.870”) |
13.70 ±0.30
(0.539”) |
06.35 ±0.25
(0.250”) |
5.2 | 24 +35%, -25% | 0.260 | 5.41 | 1.420 |
| 5967000601 | 67 Material |
21.00 ±0.35
(0.827”) |
13.20 ±0.30
(0.520”) |
06.35 ±0.25
(0.250”) |
6.4 | 24 +35%, -25% | 0.243 | 5.2 | 1.26 |
| 5967001901 | 67 Material |
12.70 ±0.25
(0.500”) |
07.90 ±0.20
(0.311”) |
12.70 ±0.35
(0.500”) |
4.7 | 48 +35%, -25% | 0.299 | 3.12 | 0.93 |
| 5967001101 | 67 Material |
12.70 ±0.25
(0.500”) |
07.90 ±0.20
(0.311”) |
06.35 ±0.25
(0.250”) |
1.7 | 24 +35%, -25% | 0.150 | 3.12 | 0.466 |
| 5967000301 | 67 Material |
12.70 ±0.25
(0.500”) |
07.15 ±0.20
(0.281”) |
04.90 -0.25
(0.188”) |
2 | 22 +35%, -25% | 0.129 | 2.95 | 0.38 |
| 5967000201 | 67 Material |
09.50 ±0.20
(0.374”) |
04.75 ±0.15
(0.187”) |
03.30 -0.25
(0.125”) |
0.8 | 17.6 +35%, -25% | 0.073 | 2.07 | 0.150 |
| 5967000101 | 67 Material |
05.95 -0.25
(0.229”) |
03.05 ±0.10
(0.120”) |
01.65 -0.25
(0.060”) |
0.14 | 6 Min | 0.02 | 1.3 | 0.027 |
| 5967003821 | 67 Material |
62.80 Max
(2.474” Max) |
34.20 Min
(1.347” Min) |
13.70 Max
(0.539” Max) |
106 | 55 +35%, -25% | 1.58 | 14.5 | 22.8 |
| 5968003801 | 68 Material |
61.00 ±1.30
(2.402”) |
35.55 ±0.85
(1.400”) |
12.70 ±0.50
(0.500”) |
106 | 16 Min | 1.58 | 14.5 | 22.8 |
| 5968002701 | 68 Material |
35.55 ±0.75
(1.400”) |
23.00 ±0.55
(0.906”) |
12.70 ±0.50
(0.500”) |
33 | 13 Min | 0.78 | 8.9 | 7 |
| 5968021001 | 68 Material |
29.95 ±0.65
(1.179”) |
19.45 ±0.50
(0.766”) |
07.50 ±0.25
(0.295”) |
21.8 | 7.7 Min | 0.388 | 7.52 | 2.917 |
| 5968001801 | 68 Material |
22.10 ±0.40
(0.870”) |
13.70 ±0.30
(0.539”) |
06.35 ±0.25
(0.250”) |
7.2 | 7.3 Min | 0.262 | 5.41 | 1.42 |
| 5968001101 | 68 Material |
12.70 ±0.25
(0.500”) |
07.90 ±0.20
(0.311”) |
06.35 ±0.25
(0.250”) |
2.4 | 7.2 Min | 0.15 | 3.12 | 0.47 |
| 5968000301 | 68 Material |
12.70 ±0.25
(0.500”) |
07.15 ±0.20
(0.281”) |
04.90 -0.25
(0.188”) |
2 | 6.6 Min | 0.129 | 2.95 | 0.38 |
| 5968000201 | 68 Material |
09.50 ±0.20
(0.374”) |
04.75 ±0.15
(0.187”) |
03.30 -0.25
(0.125”) |
0.83 | 5.3 Min | 0.073 | 2.07 | 0.15 |
| 5968020901 | 68 Material |
06.09 -0.25
(0.235”) |
03.12 ±0.10
(0.123”) |
01.65 -0.25
(0.060”) |
0.19 | 2.3 Min | 0.021 | 1.33 | 0.027 |
| 5979000301 | Medium Permeability, 79 (ui=1400) material |
12.70 ±0.25
(0.500”) |
07.15 ±0.20
(0.281”) |
04.90 -0.25
(0.188”) |
2 | 794±25% | .132 | 2.92 | .385 |
| 5979000101 | 79 Material |
5.68 Min
(0.228”) |
2.88 Min
(0.118”) |
1.40 Min
(0.060”) |
0.14 | 280 +/- 25% | 0.02 | 12.85 | 0.027 |
| 5979001101 | 79 Material |
12.65 Min
(0.508”) |
07.80 Min
(0.315”) |
06.10 Min
(0.250”) |
2.4 | 825±25% | 0.15 | 3.16 | 0.473 |
| 5995000101 | 95 Material |
5.72 Min
(0.230”) |
2.93 Min
(0.120”) |
1.40 Min
(0.060”) |
0.14 | 595 ±25% | 0.02 | 1.3 | 0.027 |
| 5995000201 | 95 Material |
009.33 Min
(0.374”) |
04.70 ±0.15
(0.190”) |
03.05 Min
(0.125”) |
0.83 | 1295 ±25% | 0.0718 | 2.09 | 0.150 |
| 5995000301 | 95 Material |
012.65 Min
(0.508”) |
06.90 Min
(0.280”) |
04.65 Min
(0.188”) |
2 | 1707 ±25% | 0.134 | 2.97 | 0.398 |
| 5995001001 | 95 Material |
28.65 Min
(1.154”) |
19.00 ±0.50
(0.748”) |
07.50 ±0.25
(0.295”) |
21 | 1949 +-25% | 0.380 | 7.37 | 2.798 |
| 5995001801 | 95 Material |
022.10 ±0.40
(0.870”) |
13.70 ±0.30
(0.540”) |
06.35 ±0.25
(0.250”) |
5.2 | 1824 ±25% | 0.260 | 5.41 | 1.420 |
| 5995001101 | 95 Material |
12.65 Min
(0.508”) |
07.80 Min
(0.315”) |
06.10 Min
(0.250”) |
2.4 | 1778±25% | 0.15 | 3.10 | 0.455 |
| 5995003801 | 95 Material |
59.55 Min
(2.406”) |
34.30 Min
(1.386”) |
12.70 ±0.50
(0.500”) |
106 | 4200 +/-25% | 1.60 | 14.4 | 23.08 |
| 5943000301 | 43 Material™ |
12.70 ±0.25
(0.500”) |
07.15 ±0.20
(0.281”) |
04.90 -0.25
(0.188”) |
2 | 440 ±20% | 0.129 | 2.95 | 0.38 |
| 5980002701 | 80 Material |
34.75 Min
(1.398”) |
22.15 Min
(0.894”) |
12.20 Min
(0.500”) |
33 | 680 +/-25% | 0.80 | 8.9 | 7 |
| 5980000101 | 80 Material |
5.68 Min
(0.228”) |
2.88 Min
(0.118”) |
1.40 Min
(0.060”) |
0.14 | 120 +/- 25% | 0.02 | 12.85 | 0.027 |
| 5980000301 | Medium Permeability, 80 (ui=550) material |
12.70 ±0.25
(0.500”) |
07.15 ±0.20
(0.281”) |
04.90 -0.25
(0.188”) |
2 | 340±25% | .132 | 2.92 | .385 |
| 5980001101 | 80 Material |
12.65 Min
(0.508”) |
07.80 Min
(0.315”) |
06.10 Min
(0.250”) |
2.4 | 335±25% | 0.15 | 3.16 | 0.483 |
| 5979002701 | 79 Material |
34.75 Min
(1.398”) |
22.15 Min
(0.894”) |
12.20 Min
(0.500”) |
33 | 1590 +/-25% | 0.80 | 8.9 | 7 |
| 5979003801 | 79 Material |
58.95 Min
(2.382”) |
34.50 Min
(1.394”) |
12.20 Min
(0.500”) |
106 | 1905 ±25% | 1.56 | 14.4 | 22.35 |
