Hollyland / Hollyfuse Energy Storage Solutions

Quick Overview

Hollyland battery storage fuses are specifically engineered to safeguard battery systems by effectively interrupting low overcurrents often associated with faulty battery storage. These fuses provide crucial protection in battery energy storage systems (BESSs), where a comprehensive circuit protection strategy is essential. Key protection concerns include electrical overcurrent, ground faults, arc flash, and transient overvoltage. Littelfuse offers solutions designed to protect these systems and extend the lifespan of equipment.

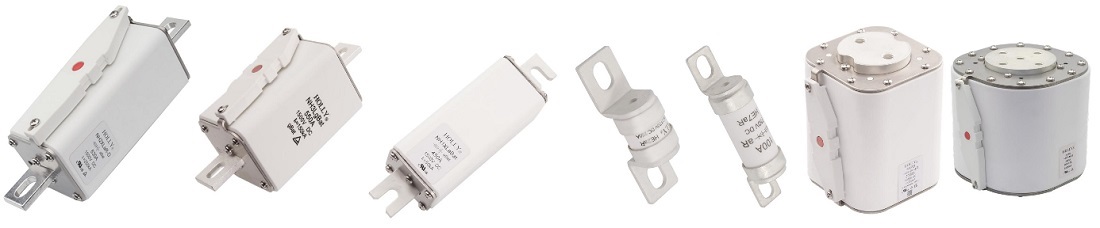

Hollyland Energy Storage Solutions

Details

Holyland / Hollyfuse Energy Storage Fuses and Protection

To enhance energy efficiency and reliability in renewable energy applications, Littelfuse provides a range of solutions. This SlideShare presents an overview of BESS protection, detailing product technologies, their functions, and the associated benefits and features.

The Energy Storage Rack (ESR) series fuses are tailored to protect battery racks from various fault currents, preventing equipment damage and costly system failures. These high-speed, square body fuses act swiftly to safeguard battery modules and other components in energy storage systems, power conversion systems, DC common bus systems, and hybrid PV-BESS inverters.

Hollyfuse storage fuses are meticulously engineered and tested to deliver superior protection for high-power battery charging and management systems. Proper circuit protection sizing is crucial to avoid catastrophic failures, and the choice of protection component depends on factors such as system voltage, nominal current, time constant, withstand rating of interconnecting components, ambient conditions, and the component’s location within the system. Fuses are available in ranges from 10A to 500A.

The NH fuse series is designed specifically to protect battery systems, offering full-range protection from small overcurrents to DC fault currents up to 150kA. The NH gBat fuses cover various ratings: 1000VDC for NH1 and NH2 sizes, and 1500VDC for NH1XL, NH2XL, and NH3L sizes. They are available with bolted blades for direct mounting or plain blades.

Applications:

  • Electrical energy storage
  • Battery storage systems
  • Line protection between battery systems and DC/DC converters or battery inverters
  • DC grid protection

Product Series

  • NH2XLaR-D

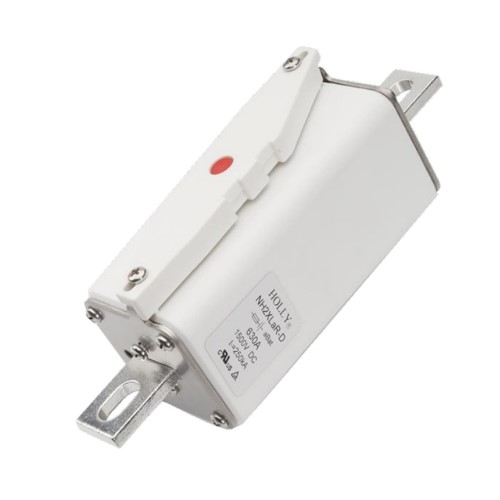

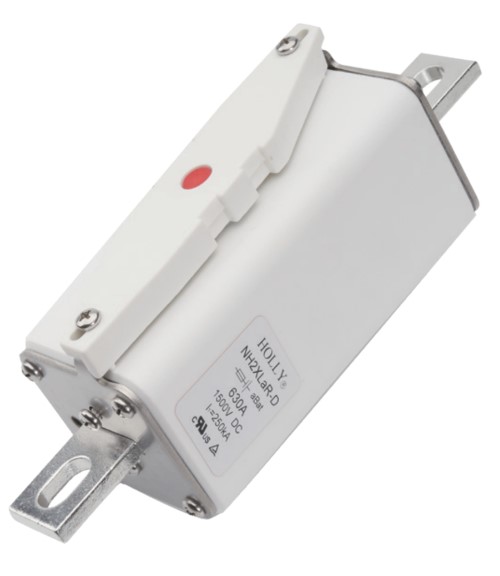

    NH2XLaR-D Series:

    Rated current:50A-630A
    Rated voltage:1500V DC
    Reference standards:UL 248-13, IEC 60269-4, GB/T 13539.4
    Safety certification:cURus,TUV,UKCA

  • NH3LaR-B

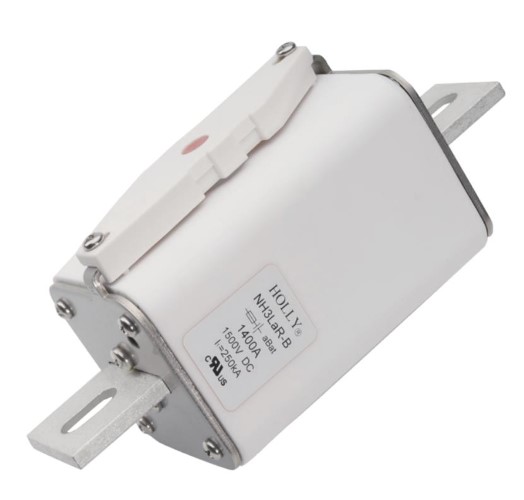

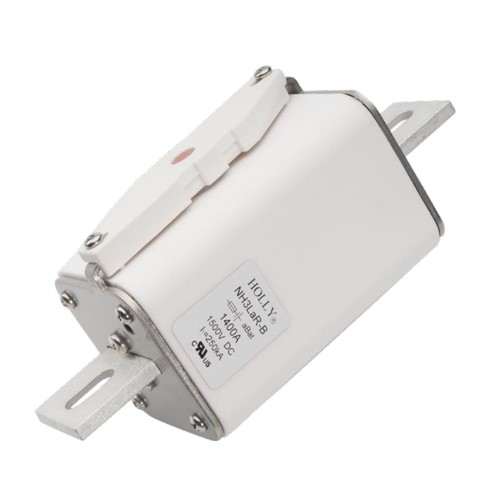

    NH3LaR-B Series:

    Rated current:250A-1400A
    Rated voltage:1500V DC
    Reference standards:UL 248-13, IEC 60269-4, GB/T 13539.4
    Safety certification:cURus

  • NH3LgBat

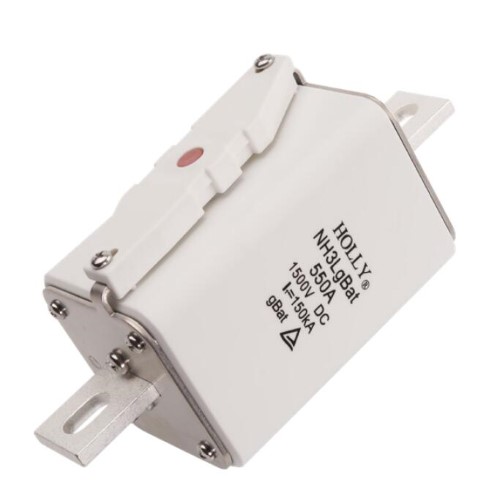

    NH3LgBat Series:

    Rated current:200A-550A
    Rated voltage:1500V DC
    Reference standards:IEC60269-7
    Safety certification:TUV

  • NH1XLaBat

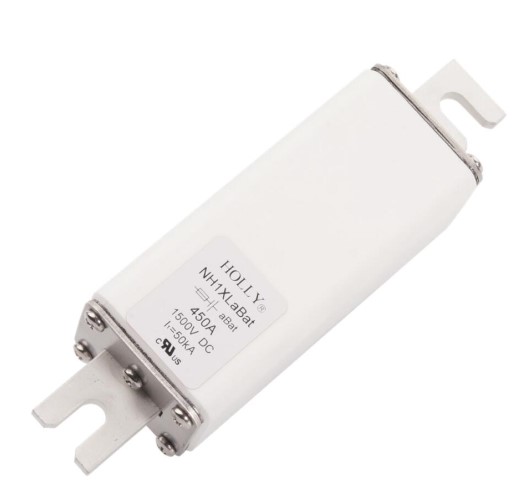

    NH1XLaBat Series:

    Rated current:50A-450A
    Rated voltage:1500V DC
    Reference standards:UL248-13, IEC 60269-7
    Safety certification:cURus

  • HE2aR

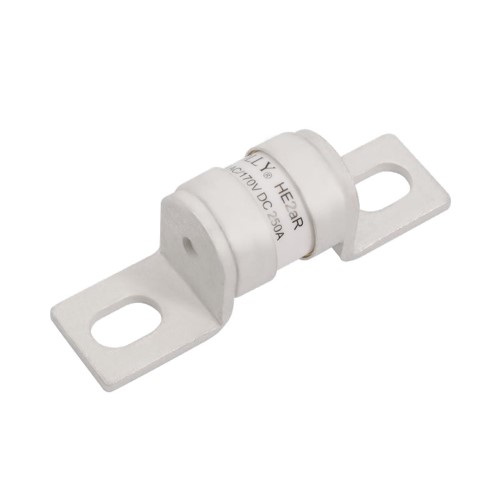

    HE2aR Series:

    Rated current:100A-250A
    Rated voltage:250V AC/170V DC
    Reference standards:GB/T 13539.4, IEC 60269-4, UL 248-13

  • HE7aR

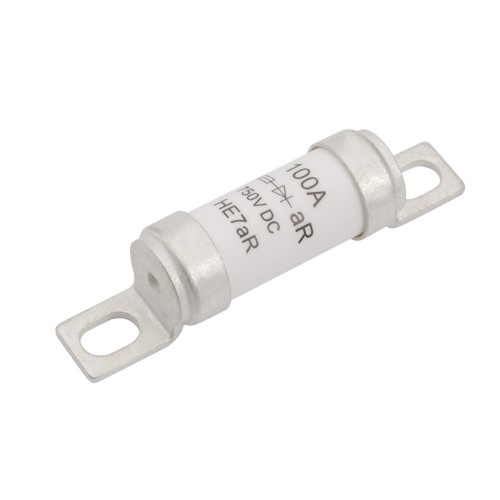

    HE7aR Series:

    Rated current:10A-100A
    Rated voltage:750V DC
    Reference standards:GB/T 13539.4, IEC 60269-4, UL 248-13
    Safety certification: cURus,CCC,TUV

  • H1BB

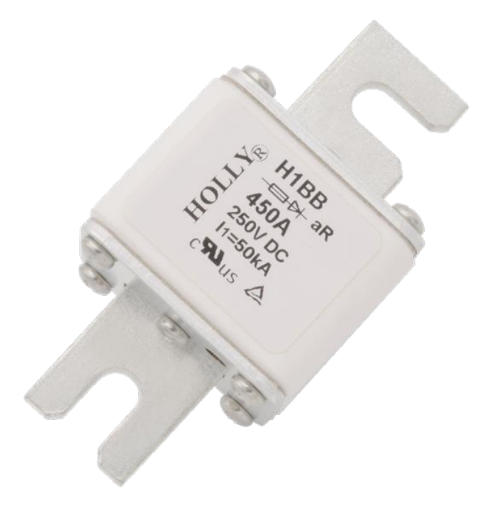

    H1BB Series:

    Rated current:200A-800A
    Rated voltage:250V DC
    Reference standards:GB/T 13539.4, IEC 60269-4, UL 248-13
    Safety certification: TUV, cURus, UKCA

  • H4FG

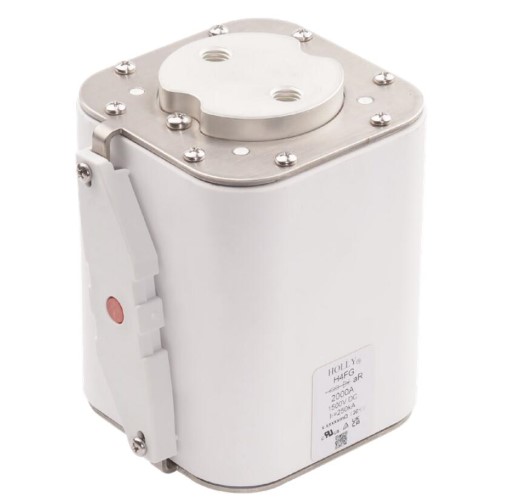

    H4FG Series:

    Rated current:400A-2000A
    Rated voltage:1500V DC
    Reference standards:GB/T 13539.4, IEC 60269-4, UL 248-13
    Safety certification: TUV, cURus, UKCA

  • H4FGaBat

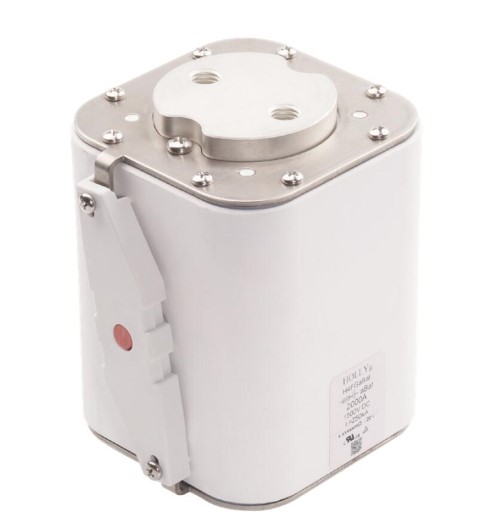

    H4FGaBat Series:

    Rated current:400A-2000A
    Rated voltage:1500V DC
    Reference standards:IEC 60269-7, UL 248-13
    Safety certification: TUV, cURus

  • H5FG

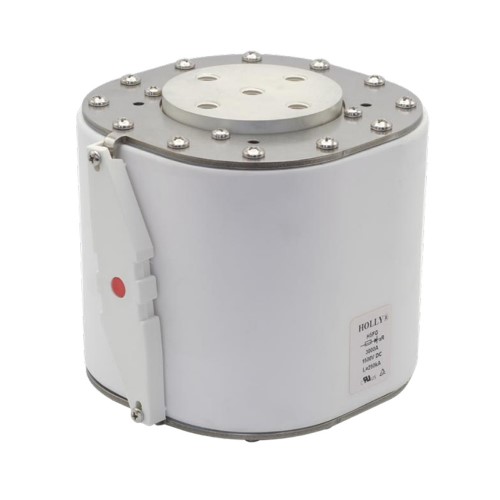

    H5FG Series:

    Rated current:1800A-3000A
    Rated voltage:1500V DC
    Reference standards:GB/T 13539.4, IEC 60269-4, UL 248-13
    Safety certification: TUV, cURus

  • NH2XLaR
    NH2XLaR Series:

    Rated current:125A-420A
    Rated voltage:1500V DC
    Reference standards:GB/T 13539.4, IEC 60269-4, UL 248-13
    Safety certification: TUV, CE

  • NH2XLaR-F

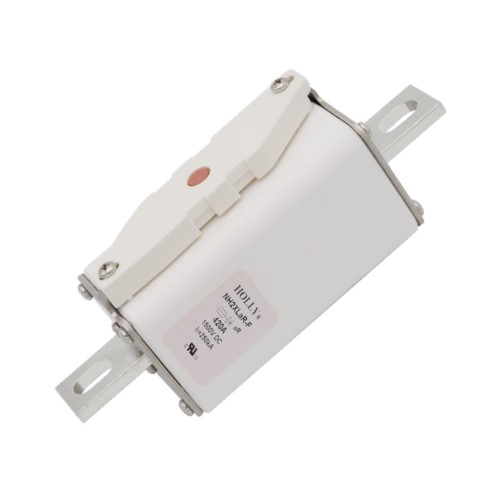

    NH2XLaR-F Series:

    Rated current:125A-420A
    Rated voltage:1500V DC
    Reference standards:UL 248-13
    Safety certification:  cURus

  • NH2XLaBat

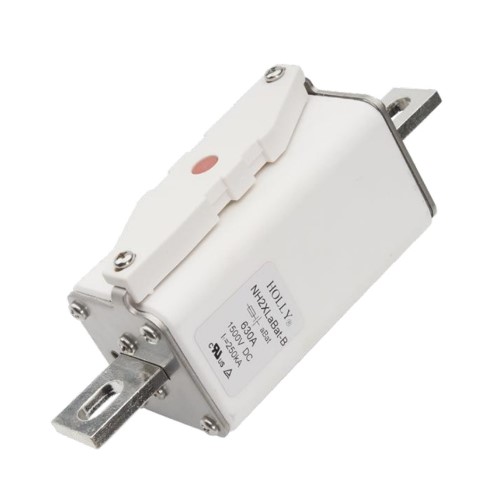

    NH2XLaBat Series:

    Rated current:50A-630A
    Rated voltage:1500V DC
    Reference standards:UL 248-13, IEC 60269-7
    Safety certification: TUV, cURus

  • NH3XLaR
    NH3XLaR Series:

    Rated current:400A-630A
    Rated voltage:1500V DC
    Reference standards:GB/T 13539.4, IEC 60269-4, UL 248-13
    Safety certification: TUV, cURus

  • NH3LaR-B
    NH3LaR-B Series:

    Rated current:250A-1400A
    Rated voltage:1500V DC
    Reference standards:GB/T 13539.4, IEC 60269-4, UL 248-13
    Safety certification: cURus

  • NH3LaBat

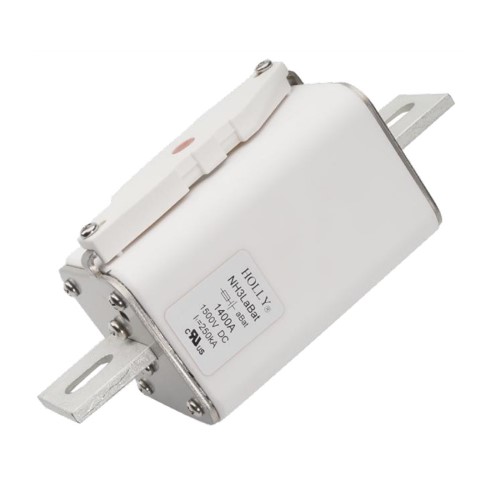

    NH3LaBat Series:

    Rated current:250A-1400A
    Rated voltage:1500V DC
    Reference standards:UL 248-13, IEC 60269-7
    Safety certification: cURus

  • 10NF

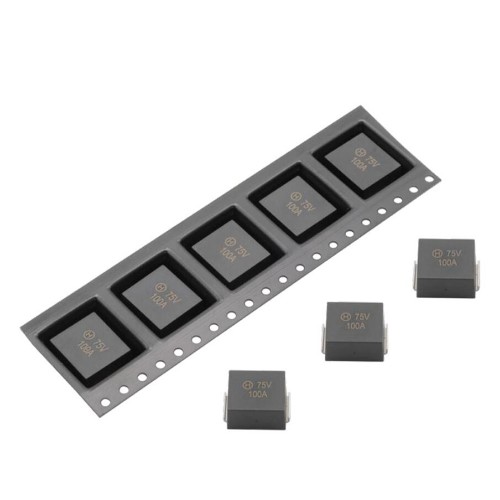

    10NF Series:

    Description: SMD Nano Fuse (Fast-blow), Fast-Acting SMD Fuse

    Application: Circuit Protection for Electronics, electrical products

    Rated current:30A-100A
    Rated voltage:32V/75V/100V/115V
    Reference standards:UL248-1,UL248-14
    Safety certification:cURus
