MPGZ790 CARBON WIFI LGA 1700 ATX Motherboard

MSI MPG Z790 CARBON WIFI LGA 1700 ATX Motherboard

Quick Overview

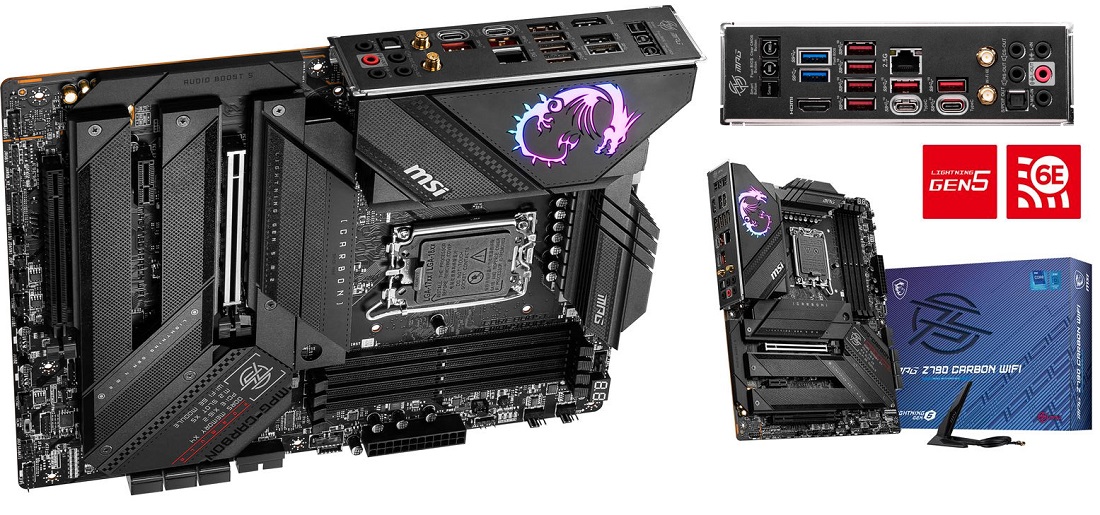

MSI MPG Z790 CARBON WIFI, Intel ATX LGA 1700, Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors, 4 Dimm DDR5, PCIE 5.0, M.2 x 5, USB 3.2 Ports USB Type-C, JRGB JRAINBOW, WIFI 6E

MSI MPG Z790 CARBON WIFI LGA 1700 ATX Motherboard

Details

Streamline your system’s connectivity with the MPG Z790 CARBON WIFI LGA 1700 ATX Motherboard from MSI. Powered by the Intel Z790 chipset and LGA 1700 socket, this motherboard features four DDR5 RAM slots supporting dual-channel memory at speeds up to 6666 MHz when overclocked. With six SATA III and five M.2 interfaces, it offers plenty of storage options and supports RAID 0, 1, 5, and 10. It also includes PCIe 5.0 x16, PCIe 4.0 x16, and PCIe 3.0 x1 slots for GPUs and other expansion cards. Enjoy fast networking with 2.5 GbE Intel LAN and Wi-Fi 6E, and connect wirelessly via Bluetooth 5.2.

The Realtek ALC4080 audio codec supports 7.1-channel surround sound with analog and digital outputs. Rear I/O includes two USB 3.2 Gen 1 and six Gen 2 Type-A ports, plus USB 3.2 Gen 2 and 2×2 Type-C ports. HDMI video output, Clear CMOS, and Flash BIOS buttons are also featured. Internal headers support front-panel USB 3.2 Gen 2 Type-C, USB 3.2 Gen 1, USB 2.0 ports, RGB connectors, and more.

Key Features:

Gaming-Oriented Design

  • Built around the Intel Z790 chipset, this motherboard balances performance and style, supporting 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors.

Powerful VRM and Cooling

  • 19+1+1 phase VRM power design with 105A smart power stages ensures stable CPU power for demanding gaming setups.
  • Features extended heatsinks, direct-touch heat pipes, and thermal pads for effective VRM cooling. SSDs are protected with double-sided M.2 Shield Frozr to prevent thermal throttling.

Durable PCIe Slots

  • Fortified PCIe 5.0 x16 slot with MSI’s Steel Armor technology provides enhanced signal integrity and electromagnetic shielding.

Memory Performance

  • Supports 4 x DDR5 dual-channel memory with speeds of up to 7600+ MHz (overclocked). MSI’s Memory Boost technology ensures optimal gaming and overclocking performance.

Storage Options

  • Includes one Gen5 M.2 slot with speeds up to 128 Gb/s and four Gen4 M.2 slots, all equipped with MSI’s tool-free M.2 Shield Frozr to protect against overheating.

Advanced Networking and Connectivity

  • Wi-Fi 6E and 2.5G LAN provide ultra-low latency, high-speed networking for gaming and data transfers.
  • Bluetooth 5.2 and multiple USB 3.2 Gen 2×2 Type-C ports offer fast, versatile connectivity.

Premium Audio

  • Equipped with 7.1-channel audio featuring Audio Boost 5 and S/PDIF output for high-quality sound.

This motherboard is designed for enthusiasts seeking top-tier performance, robust cooling, and comprehensive connectivity for high-end gaming and demanding workloads.

Specifications

Brand MSI
Model Z790CARBWIFI
Chipset Z790
Memory Slots 4
Motherboard Form Factor ATX
Socket LGA 1700
Platform Intel
Memory 4x DDR5 memory slots, supporting up to 128GB*
Supports 1R 4800 MHz (by JEDEC & POR)
Maxoverclocking frequency:
1DPC 1R Max speed up to 6666+ MHz
1DPC 2R Max speed up to 5600+ MHz
2DPC 1R Max speed up to 4000+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Intel® XMP3.0 OC
Supports Dual-Controller Dual-Channel mode Supports
non-ECC, un-buffered memory
Expansion Slots 2x PCIe x16 slots
PCI_E1 slot (From CPU)
Supports up to PCIe 5.0 x16
PCI_E3 slot (From Z790 chipset)
PCI_E3 supports up to PCIe 4.0 x4
1x PCIe x1 slot
PCI_E2 slot (From Z790 chipset)
PCI_E2 supports up to PCIe 3.0 x1
Onboard Graphics 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz*/ **
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA
storage devices*
Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2
NVMe storage devices
Audio Realtek® ALC4080 Codec
· 7.1-Channel High Definition Audio
· Supports S/PDIF output
LAN 1x Intel® I226V 2.5Gbps LAN controller
Wi-Fi & Bluetooth® Intel® Wi-Fi 6E
· The Wireless module is pre-installed in the M.2 (Key-E) slot
· Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz*(160MHz) up to 2.4Gbps
· Supports 802.11 a/ b/ g/ n/ ac/ ax
· Supports Bluetooth® 5.2**, FIPS, FISMA
Power Connectors · 1x 24-pin ATX main power connector
· 2x 8-pin ATX 12V power connectors
Internal USB Connectors · 1x USB 3.2 Gen 2×2 20Gbps Type-C port (From Z790 chipset)
· 1x USB 3.2 Gen 1 5Gbps connector (From Z790 chipset)
· Supports additional 2 USB 3.2 Gen 1 5Gbps ports
· 2x USB 2.0 Type-A connectors (From Hub-GL850G)
· Supports additional 4 USB 2.0 ports
Fan Connectors · 1x 4-pin CPU fan connector
· 1x 4-pin water-pump fan connector
· 5x 4-pin system fan connectors
Back Panel Connectors · 1x Clear CMOS button
· 1x Flash BIOS button
· 1x Smart button
· 2x USB 3.2 Gen 1 5Gbps Type-A ports (From Z790 chipset)
· 1x HDMI port
· 6x USB 3.2 Gen 2 10Gbps Type-A ports (From Z790 chipset& GL3590 Hub)
· 1x USB 3.2 Gen 2 10Gbps Type-C port (From Z790 chipset)
· 1x USB 3.2 Gen 2×2 20Gbps Type-C port (From Asmedia ASM3242)
· 1x LAN (RJ45) jack
· 2x Wi-Fi Antenna connectors
· 5x Audio jacks
· 1x Optical S/PDIF Out connector
