Description

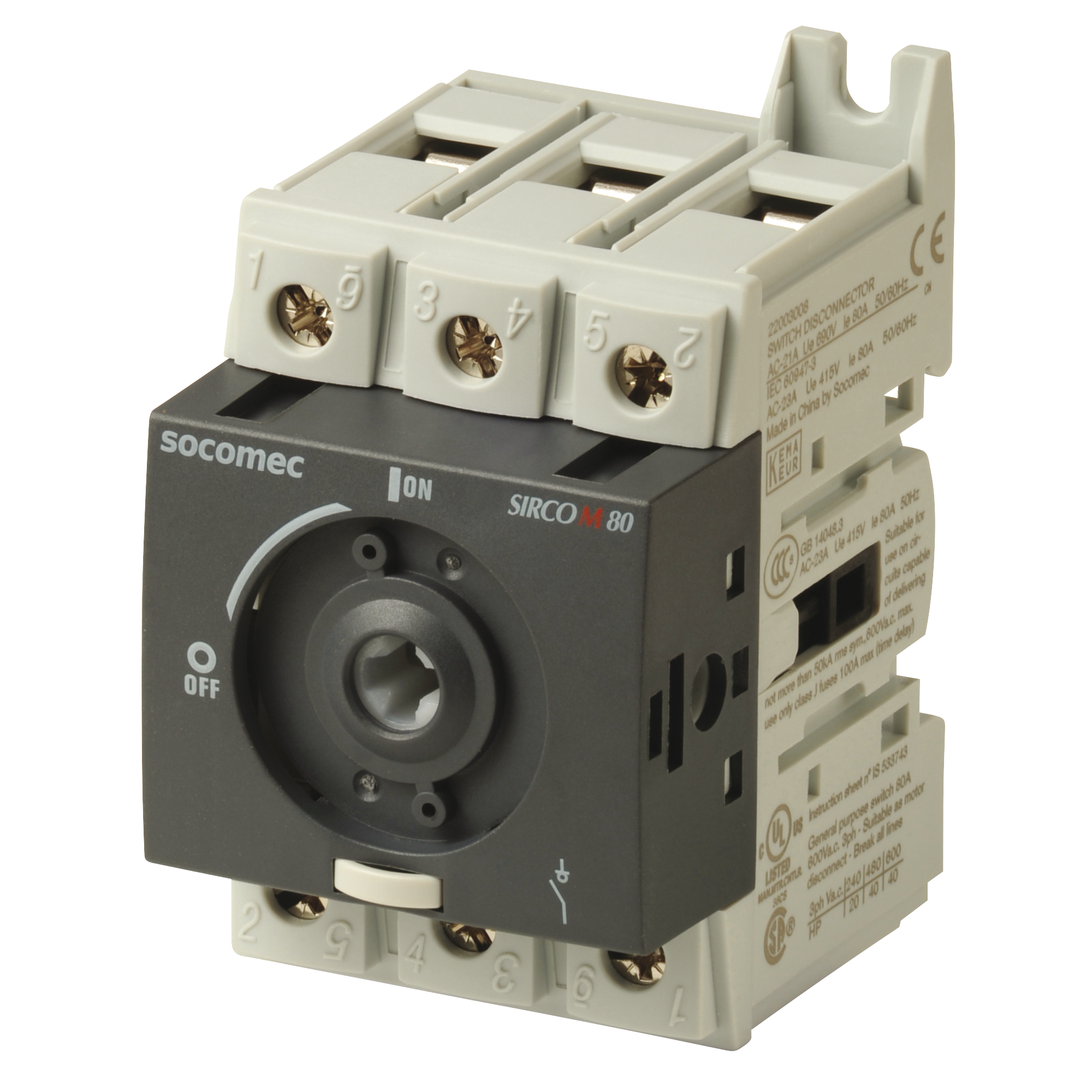

22003008 Socomec SIRCO M series rotary disconnect switch, load break capable, 3-pole, 600 VAC, 80A, 65kA SCCR, DIN rail or panel mount, UL 508 rated, front or side operated, accepts 5 x 5mm size shaft.
Socomec SIRCO M2 switch-disconnector, design as main switch, design as isolating switch, design as safety switch, design as emergency stop device, 1 switch, max. Rated operating voltage Ue at A 800V, operating voltage (measurement voltage) 400 – 690V, rated continuous current Iu 80A.
SOCOMEC 22003008 SIRCO M2 3X80A
Easy integration with a large range of accessoriesHigh short circuit current rating, up to 65 kAICUpgradeabilityDouble positive break indication given by a position indicator located directly on the productDirect or external handleCompact footprintDIN rail or base mountingUp to 8 poles or 4 poles MTS (UL508) or 4 poles (UL98)Finger safe
Part Number: 22003008
UNSPSC: 39122233
Retail Price: $254.77 / ea
Net Price: $76.43 / ea
Availability: 7 ea i
Quantity ea Add to Cart
Checkout
Features / Benefits
Compact switches that make and break power circuits on and off and provide safety isolation.
SIRCO M fully integrates sectioning, breaking, control, switching and associated protection functions.Within a single product, SIRCO M offers front, right side or left side operation. Its highly functional design enables the device to be easily transformed from a load break switch to a changeover switch, offering a highly innovative modular solution for numerous applications.
A single standard module, which can be complemented with a choice of accessories, offers a range of advantages:- Clear choice of devices.- Flexibility to adapt to the most varied applications.- Reduced stock management and storage costs.
Data centre – Power availability for servers##NewItem##Data centre – Power availability for precision cooling##NewItem##Data centre – Power for busway and tap-off##NewItem##Industry – Power availability for industrial process##NewItem##Industry – Protection for drives and motors##NewItem##Building – Power availability for IT infrastructure
Specifications
Catalog Number 22003008
Auxiliary Contacts / Electrical Characteristics A300
Category AC LOAD BREAK SWITCH
Conformity To Standard #1 UL508
Conformity To Standard #2 CSA-C22.2 No.14
Conformity To Standard #3 IEC 60947-3
Conformity To Standard #4 Class 3211 05
Country of Origin CN
Description (30 Char.) SIRCO M2 3X80A
Description (70 Char.) Universal load break switch body SIRCO M 3P 80A
Endurance (number Of Operating Cycles) 10000
FAMILIES WEBSPECIALS
FLA 3 Ph Motor Max. / 208 VAC 15/46.2
FLA 3 Ph Motor Max. / 220-240 VAC 20/54
FLA 3 Ph Motor Max. / 440-480 VAC 40/52
FLA 3 Ph Motor Max. / 600 VAC 40/41
FUNCTIONS SIRCO M non-fusible disconnect switches are compact switches. They make and break under on and off load conditions and provide safe isolation. These switches are extremely durable and are tested and approved for use in the most demanding applications. UL98disconnect switches are rated as a branch circuit disconnect switch. They can be used in a variety of applications for general use. Rangefrom 30 to 100A. UL508disconnect switches are rated as a motor rated disconnect or local disconnect.They can be used as motor controllers. Rangefrom 16 to 80.
Family Name AC LOAD BREAK SWITCHES
GTIN/EAN 3596031825448
MAX FUSE RATING 100/60
Max. Connection Section / AWG #1 or 2x#6
Min Order Qty 1
Min. Connection Section / AWG #14 or 2x#12
Nominal Current Rating (A) 80
Operating Temperature -4 … +122F / -20 … +50C
Operating Torque 8.9/1
Operation Voltage 2 P – 3/4 P 600VAC
PDW CSS HARMONIZED TARIFF CODE 8536509065
Product Description SOCOMEC 22003008 SIRCO M2 3X80A
Product Name SIRCO M
Product Short Description Compact non-fusible disconnect switches with UL and CSA standards
Short Circuit Rating At 600 VAC 50/65
Storage Temperature -40 … +158F / -40 … +70C
TYPE OF FUSE J
UNSPSC Code 39122233
