Description

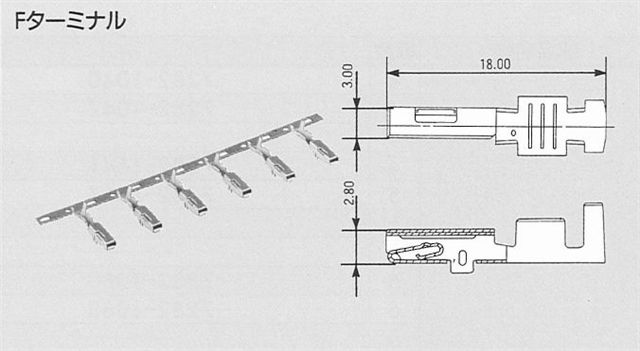

7116-4020 Yazaki crimping terminal, Cable Range AWG 20 RoHS
Specifications
Classified Parts Terminal
Family*2 2.3II(090II) Connectors
Type –
Yazaki Part Number 7116-4020
Connection Type Wire to Wire
Wire to Board
Wire to Device
Unsealed/Seald Unsealed
Male/Female Female
Number of Poles –
Tab Width mm(inches) 2.3(090)
Material Brass
Plating Tin Plating
Color –
Rating –
Mating Part Numbers 7114-4020
Product Specification No. YPES-11-05-057
Instruction Manual No. YPES-15-080
Wire Type Wire Size(mm2)
AVS 0.3 to 0.5
CAVS 0.3 to 0.5
Manufacturer:Yazaki
Datasheet:7116-4020.pdf
