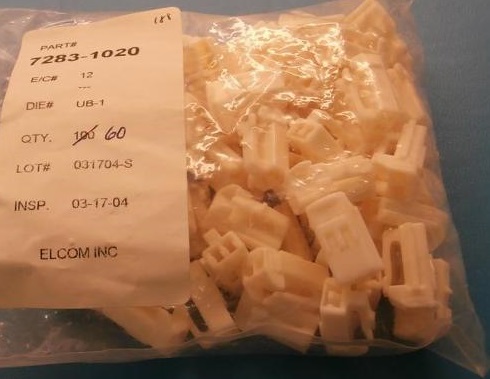

7283-1020 YAZAKI Connector Housing 2 Position

Description

7283-1020 YAZAKI Connector Housing 2Position Female

Classified Parts Housing
Family*2 2.3II(090II) Connectors
Type –
Yazaki
Part Number 7283-1020
Connection Type Wire to Wire
Wire to Board
Wire to Device
Unsealed/Seald Unsealed
Male/Female Female
Number of Poles 2
Tab Width
mm(inches) 2.3(090)
Material Heat-resistance Nylon
Color Natural
Mating Part
Numbers 7282-1020
7282-1022
7282-8823
Product
Specification No. YPES-11-05-057
Instruction
Manual No. YPES-15-080
Response to
Environmental
Issues ELV,RoHS
SPECIFICATIONS
Part #: 7283-1020
Part Category: Connectors
Manufacturer: Yazaki North America, Inc.
Description: 2 CONTACT(S), FEMALE, COMBINATION LINE CONNECTOR
Connector Type COMBINATION LINE CONNECTOR
Contact Gender FEMALE
DIN Conformance NO
Empty Shell YES
Filter Feature NO
IEC Conformance NO
Manufacturer Series 090
Mating Information MULTIPLE MATING PARTS AVAILABLE
MIL Conformance NO
