Description

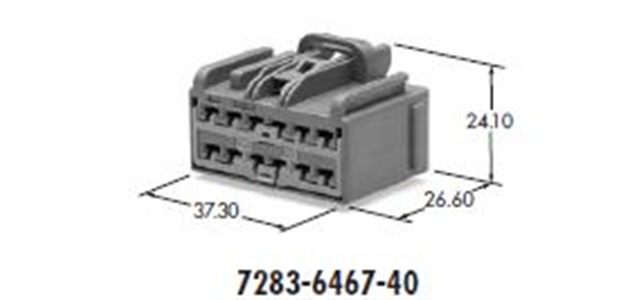

7283-6467-40 CON FEMALE LIGHT GRAY 37.30×26.6×24.1 RoHS
YESC Kaizen Connector Female Housing
| Classified Parts | Housing |
| Family | YES/YESC Kaizen Connectors |
| Type | 2.8X0.8 |
| Yazaki Part Number |
7283-6467-40 |
| Connection Type | Wire to Wire Wire to Device |
| Unsealed/Seald | Unsealed |
| Male/Female | Female |
| Number of Poles | 12 |
| Tab Width mm(inches) |
2.8(110) |
| Material | PBT |
| Plating | – |
| Color | Light Gray |
| Rating | – |
| Mating Part Numbers |
7282-6467-40 |
| Product Specification No. |
YPES-11-05-170 |
| Instruction Manual No. |
YPES-15-599 |
| Response to Environmental Issues |
| Allowable Current(Ref.) |
20A(Ref) |
| Low Level Contact Resistance |
10milli ohm Max.(Initial) |
| Insulation Resistance |
20Megohm Min.(at 500VDC) |
| Withstanding Voltage |
1000V AC (1min.) |
| Temperature Range*9 |
-40 to 100deg.C |
Manufacturer Part Number: 7283-6467-40
Yazaki
