Description

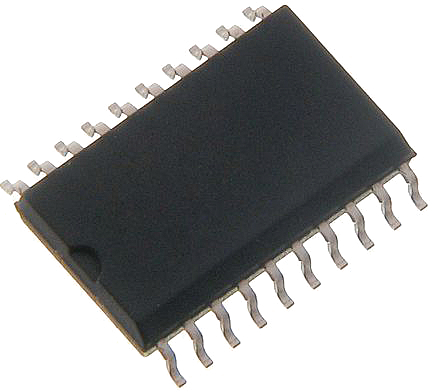

74HC244D-PBF IC BUFFER/LDRIVER OCT 3ST 20SOIC PB-FREE ROHS
Specifications
Product Category: Buffers & Line Drivers
Brand: NXP Semiconductors
Number of Input Lines: 8 Input
Number of Output Lines: 8 Output
Polarity: Non-Inverting
Supply Voltage – Max: 6 V
Supply Voltage – Min: 2 V
Maximum Operating Temperature: + 125 C
Mounting Style: SMD/SMT
Package / Case: SOT-163-20
Packaging: Reel
High Level Output Current: – 7.8 mA
Logic Family: HC
Low Level Output Current: 7.8 mA
Minimum Operating Temperature: – 40 C
Number of Channels: 8
Output Type: 3-State
Propagation Delay Time: 110 ns at 2 V, 22 ns at 4.5 V, 19 ns at 6 V
Part # Aliases: 74HC244D-T
Manufacturer:Philips
Datasheet:74HC_HCT244.pdf
