Description

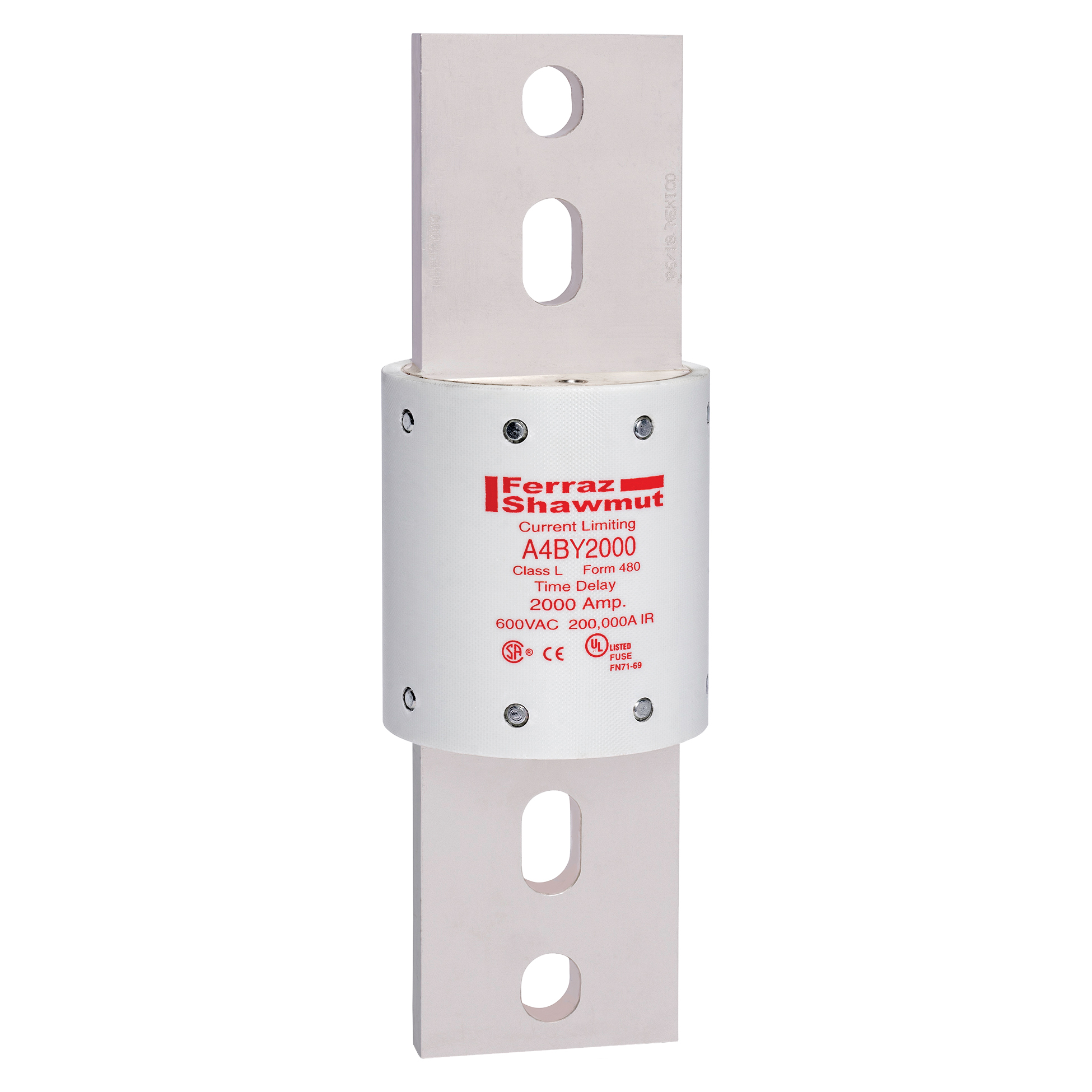

A4BY2000 Mersen Slow Blow L Fuse 2kA 600VAC 300VDC Cylindrical Cartridge Bolt Mount CSA, UL
The Mersen A4BY2000 is a fuse with a current rating of 2000 Amps and a voltage rating of 600VAC, 300VDC. It has an interrupting rating of 100kA at 300VDC, 200kA at 600VAC. The A4BY2000 has a bolted mounting type and it is used for mains, feeders, circuit breakers, load centers, panelboards, switchboards, metering center applications.
Unique dimensions prevent replacement by other fuse classes
Blade stamped catalog numbers for permanent identification
Glass melamine body and-plated terminals provide superior reliability in harsh environments
Uniform characteristics in all ampere ratings
Silver-plated copper contact
North American power fuses
Specs
Brand Mersen
Breaking Capacity 200 kA
Class Class L
Current Rating 2000 A
Dimensions 3.50 in H X 3.50 in W X 10.75 in L
For Use With Fuses
Manufacturer Part Number A4BY2000
Primary Type Fuse
Type Fuse
Unit of Measure EA
Voltage Rating 600 V
Weight 8.75 lb
MPN: A4BY2000
Manufacturer: Mersen Ferraz Shawmut
Response Time: Slow Blow
Fuse Type: Cartridge
Current Rating: 2kA
Voltage Rating: 600VAC
Breaking Voltage: 200kA AC, 100kA DC
Package / Case: Cylindrical, Blade Terminal (Bolt)
Size / Dimension: 3.504″ Dia x 10.748″ L (89.00mm x 273.00mm)
Mounting Type: Bolt Mount
Applications: Electrical, Industrial
