Description

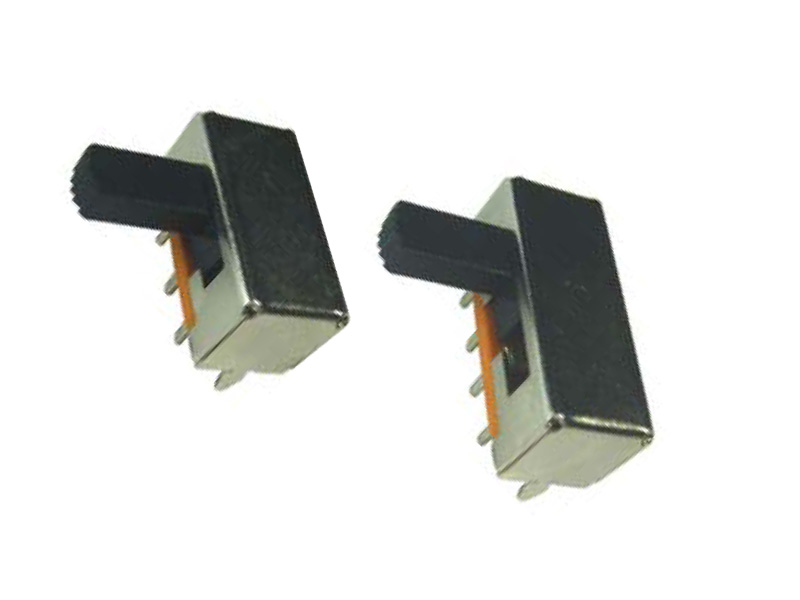

Canal SL13B SLIDE SWITCHES UP TO 6A 125VAC double poles, panel mounting, solder lug or PCB terminals
Features:
- Safety approved internationally by UL, CUL in North America, CQC in Asia
- Single or double poles
- Screw and PCB mounting
- Optional actuator type
- Solder, thr-hole and right angle PC terminals
1A 125VDC (UL)
Contact resistance : 50m ohm max
Dielectric strength : 1,000 VAC for 1 minute.
Life cycle : 10,000 cycles
Operation force : 300±200g
Frame : Nickel plated steel
Actuator : PBT+15% G.F, UL rated 94V-2 min
Base : Phenolic
Movable contact: Silver plated copper
Contact spring : Spring steel
Terminals : Silver plated copper
Spring : Piano wire
Steel ball: Steel
Frame : Nickel plated steel
Manufacturer:Canal
Datasheet:SL13B-022BMC0.pdf
