Description
CHF130 Cutler-Hammer Eaton CH thermal magnetic circuit breaker,Type CHF 3/4-Inch standard circuit breaker,20 A,10 kAIC,Single-pole,120/240V,CHF,Trip flag, common breaker trip,(1) #14-8 AWG, (2) #14-10 AWG Cu/Al,CHF,Type CH Loadcenters

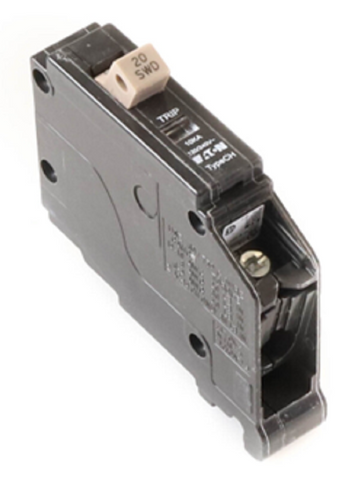

The Eaton CHF120 is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 20 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC at 120V. The CHF130 has a plug-in connection type and includes long time and instantaneous trip functions.
Eaton has enhanced its premium Type CH residential circuit breakers, making the best even better. In addition to the industry exclusive “Trip to OFF” and simple 1-Step Reset feature, Eaton has added a trip flag to visibly indicate breaker status. Along with Tri-Drive screws and new markings that highlight ratings and the Eaton brand.
Highlights
Primary function of a circuit breaker is to protect the wire from overheating (overload) and fault currents (short circuit)
Amperage rating: 20 Amp
3/4 in. single pole breaker
Flag visually confirms tripped status, making it easy for the homeowner to identify
For use in type CH load centers only
Interrupt rating – 10 kAIC
Voltage rating is 120/240-Volt
(1) #14-8, (2) #14-10 AWG Cu/Al 60 degree C or 75 degree C
HACR rated
