Description

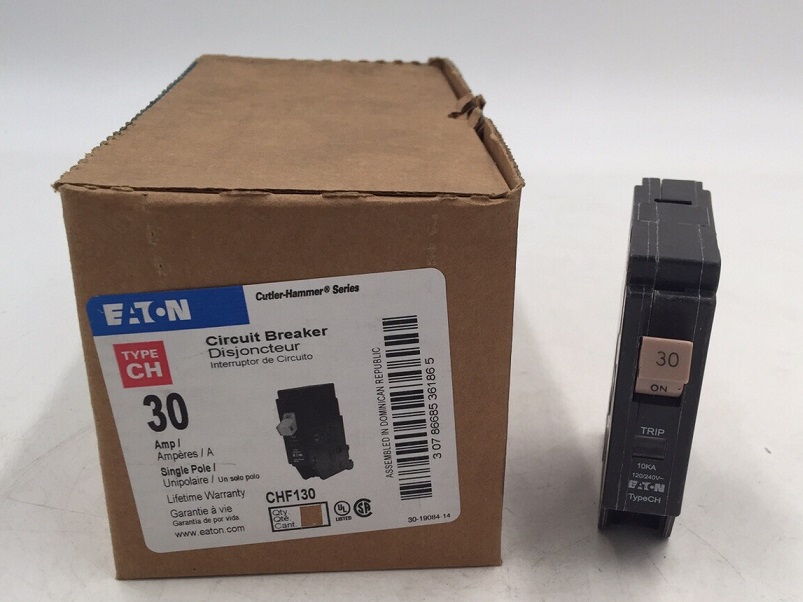

CHF130 Cutler-Hammer Eaton CH thermal magnetic circuit breaker,Type CHF 3/4-Inch standard circuit breaker,30 A,10 kAIC,Single-pole,120/240V,CHF,Trip flag, common breaker trip,(1) #14-8 AWG, (2) #14-10 AWG Cu/Al,CHF,Type CH Loadcenters
The Eaton CHF130 is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 30 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC at 120V. The CHF130 has a plug-in connection type and includes long time and instantaneous trip functions.
Specifications
Description
EATON CHF130 EATON CH THERMALMAGNETIC CIRCUIT BREAKER
Amperage Rating
30 A
Voltage Rating
120/240V
Actuator
Toggle Handle
Application
For circuit protection, residential type CH load centers and meter breaker panels, light commercial distribution panels, pool panels, residential transfer switch panels and various OEM applications
Catalog Description (MFR)
Eaton CH thermal magnetic circuit breaker,Type CHF 3/4-Inch standard circuit breaker,30 A,10 kAIC,Single-pole,120/240V,CHF,Trip flag, common breaker trip,(1) #14-8 AWG, (2) #14-10 AWG Cu/Al,CHF,Type CH Loadcenters
Catalog_Notes
HACR Rated, Single-Pole Requires One 2/4-Inch Space, With Trip Indication.
Certifications
UL 489
Compliances
HACR Rated
Dimensions
3.2 IN L x 0.7 IN W x 2.6 IN H
Frame
CHF
Interrupt Rating
10 kA
Marketing Message (MFR)
Eaton’s residential CH circuit breakers provide premium overload protection. The Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions. Multiple breakers have an internal common trip connection to operate all poles simultaneously. Handles are marked with ON-OFF indication and ampere rating of the breaker.
Mounting Type
Plug-On
Number Of Poles
1 Pole
Phase
1
Product Feature
AFCI:Advanced electronics to reduce unwanted tripping from non-compliant devices.Standard LED indicates one of seven trip codes to simplify circuit diagnostics.Trip codes are stored permanently into the breaker’s memory, to help identify “trip” history.Branch overvoltage protection for sensitive electronics.Meets areas requiring AFCI protection under the 200 and all subsequent edition of the NEC., Eliminates unwanted tripping due to loose pigtail connections, GFCI, GFCI:One pole breakers 15–30A5mA protection per UL943, Improved wireway access, Limited lifetime warranty on all CH products, Meets areas requiring AFCI protection under the 200 and all subsequent edition of the NEC., One pole breakers 15–30A, Plug-on neutral, Plug-on neutral: Time savings up to 25% per AFCI and GFCI installationImproved wireway accessEasier troubleshooting due to less wiringEliminates unwanted tripping due to loose pigtail connectionsLimited lifetime warranty on all CH products, Standard LED indicates one of seven trip codes to simplify circuit diagnostics., Time savings up to 25% per AFCI and GFCI installation, Trip codes are stored permanently into the breaker’s memory, to help identify “trip” history
Product Name
Eaton CH thermal magnetic circuit breaker
Product Type
Thermal magnetic circuit breakers
Standard
UL 489,HACR Rated
Trip Type
Trip flag
Type
Standard
Wire Size
(1) 14 to 8 AWG, (2) 14 to 10 AWG Copper/Aluminum
Catalog Number
CHF130 Vendor Code CHD
Manufacturer
Eaton
Manufacturer’s Part Number
CHF130
Description
Type CHF BRKR 30A/1P 120/240V 10 Kaic
Standard Trip Circuit Breaker, 30 A, Common Tripping Mechanism, Plug-On, 120/240 V Ac, 3 In Overall Height, 3 In Overall Length, 0.75 In Overall Width, 0.56 LB
Slang Terms
Categories
Standard Trip Plug – 1 Pole Standard Trip Plug-In
Classification
Loadcenter Plug In Breakers and Accessories
UNSPSC
39121601 – Circuit breakers
UPC/GTIN
786685361864 / 00786685361864
Weight per unit
0.56 (lbs/each)
