Description

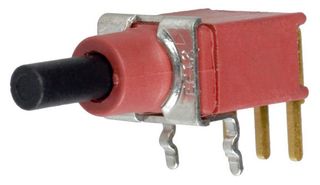

C&K EP11SD1ABE Pushbutton Switches MOM-(N/O) SPST-NO Standard Switch Push Button OFF Mom SPST Round Plunger 20VAC 20VDC 0.4VA Momentary Contact Thru-Hole PC Pins Tray
Manufacturer: C&K Components
Product Category: Pushbutton Switches
RoHS: RoHS Compliant Details
Contact Form: SPST
Switch Function: ON – (OFF)
Voltage Rating AC: 20 V
Voltage Rating DC: 20 V
Power Rating: 0.4 VA
Mounting Style: Through Hole
Termination Style: Solder Pin
Contact Plating: Gold
Brand: C&K Components
Actuator: Without Cap
Flammability Rating: UL 94 V-0
Features: Button/cap ordered separately
Housing Material: Nylon, Glass Filled
Packaging: Bulk
Series: EP
Factory Pack Quantity: 1
Terminal Seal: Epoxy
- Description
- Pushbutton Switch
- Circuitry:SPST
- Switch Operation:Off-(On)
- Contact Voltage AC Nom:20V
- Contact Voltage DC Nom:20V
- Actuator Style:Round
- Switch Terminals:Through Hole
- Actuator Diameter:2.54mm
- Contact Rating:0.4VA at 20V
- RoHS Compliant: Yes
The EP series of sealed tiny pushbutton switches from C&K are selected to power applications in the telecommunications and networking industry. The EP’s snap-fitting actuator accepts standard caps, and is sealed to protect against solder and cleaning processes – helping ensure it can withstand any harsh environment. Available in thru-hole and surface mount models, C&K’s EP switches are also RoHS compliant.
Manufacturer:Cinch
Datasheet:Others/ep.pdf
