Description

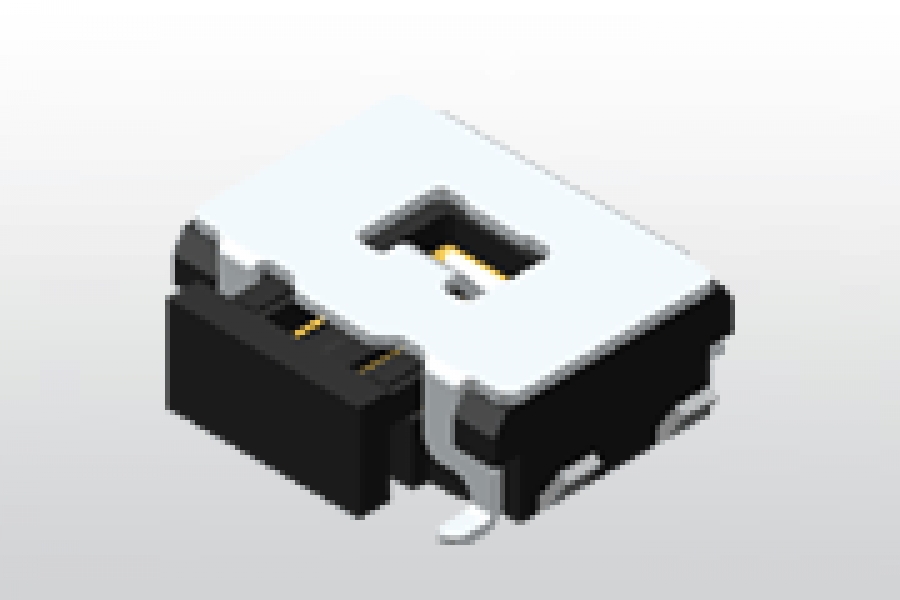

Diptronics MPTC-FG-V-T/R Mini Tact Switch 2.9×3.9×1.5mm , Side push 50mA, 12V DC
| Type | Miniature |
| Switch Configuration | N.O. |
| Pole Throw Configuration | SPST |
| Mounting | Surface Mount |
| Maximum Current Rating | 0.05@12VDC A |
| Contact Material | Stainless Steel/Silver Clad |
| Maximum DC Voltage Rating | 12 V |
| Operating Force | 2.16 N |
| Terminal Type | Gull Wing |
| Operating Temperature | -25 to 70 °C |
FEATURES |
| ?For high density mounting |
| ?Vertical and side actuation |
| ?Reflow solderable |
APPLICATION |
| ?Automotive |
| ?Portable electronic device |
| ?Control panel |
Manufacturer:Diptronics
Datasheet:MPTCFGVTR.pdf
