Description

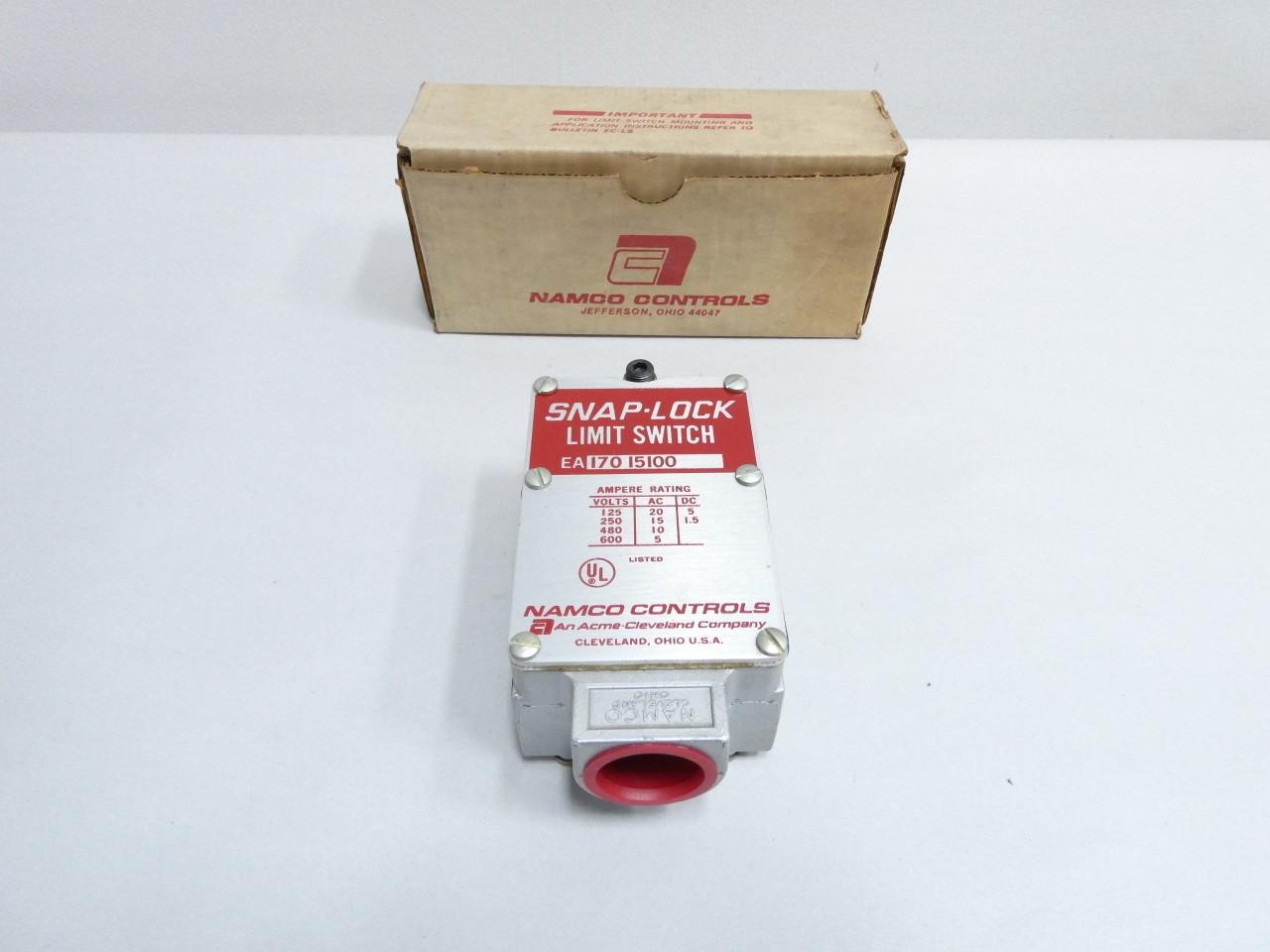

EA170-15100 Namco Snap-lock Limit Switch On-Mom 20A (AC), 5A (DC) 125VDC 125 VAC Side Rotary – No Lever DPDT Chassis Mount Screw Terminal
Specifications
Actuation Method: Lever
Enclosure Rating:
NEMA 1
NEMA 4
NEMA 13
Housing Material: Zinc/Aluminum
Operating Temperature: -20°C to +90°C
Trip Travel: 6°30′
Torque (inch/lbs.): 32
Shaft Position: Front Shaft
Wire Leads: No Leads
Circuit: DPDT
Switch Function: On-Mom
Current Rating (Amps): 20A (AC), 5A (DC)
Voltage Rating – AC: 125 V
Operating Temperature: -20°C ~ 90°C
Actuator Type: Side Rotary – No Lever
Mounting Type: Chassis Mount
Termination Style: Screw Terminal
The EA170 Series is a heavy duty limit switch featuring two normally open and two normally closed circuits. This double pole, double throw limit switch is engineered with Rocker Type SNAP-LOCK Technology in a die-cast zinc housing for corrosion resistance. This series is available in standard, wide or long mounting. The EA170 Series can be ordered as standard travel (mechanical travel 10º to trip), short travel (mechanical travel 10º or 61/2º required to trip) or reverse shaft (mechanical travel 10º to trip).
