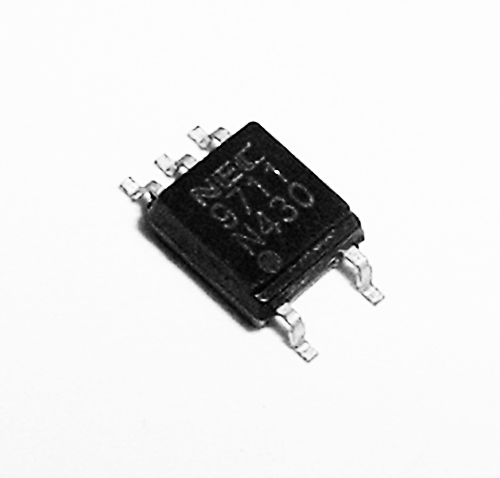

NEC PS9711-E3/F3 High Noise Reduction High Speed Optocoupler 5V CTR 25
Manufacturer: NEC
Part Number: PS9711-F3
Voltage: 5
Package: SOP
Mounting: Surface Mount
Number Leads/Terminals: 5
Color: Black
Obsolete: Yes
High Noise Reduction / High Speed Photocoupler IC
10 Mbps Totem-Pole Output Type
Obsolete
Features:
– High Common Mode Transient Immunity
– High Speed Response
– Pulse Width Distortion
Recommended Operating Conditions
High Level Input Current: 7.5mA to 12.5mA
Low Level Input Current: 0uA to 250uA
Supply Voltage: 5.0V typ.
TTL>RL = 1kilohm
Typical Electrical Specifications
Diode:
Forward Voltage: 1.65V
Reverse Current: 10uA (max.)
Capacitance: 30pF
Detector:
High Level Output Current: 1.0uA
High Level Output Voltage: 3.0V
Low Level Output Voltage: 0.38V
High Level Supply Current: 11.0mA
Coupled
Threshold input Current, High to Low: 2.0mA
Isolation Resistance: 10^11 ohms (min)
Isolation Capacitance: 0.6pF
Common Mode Transient Immunity @ High Level Output: 10kV/us
Applications:
– Computer and Peripheral Devices
– Measurement Equipment
– Power Supply
