Description

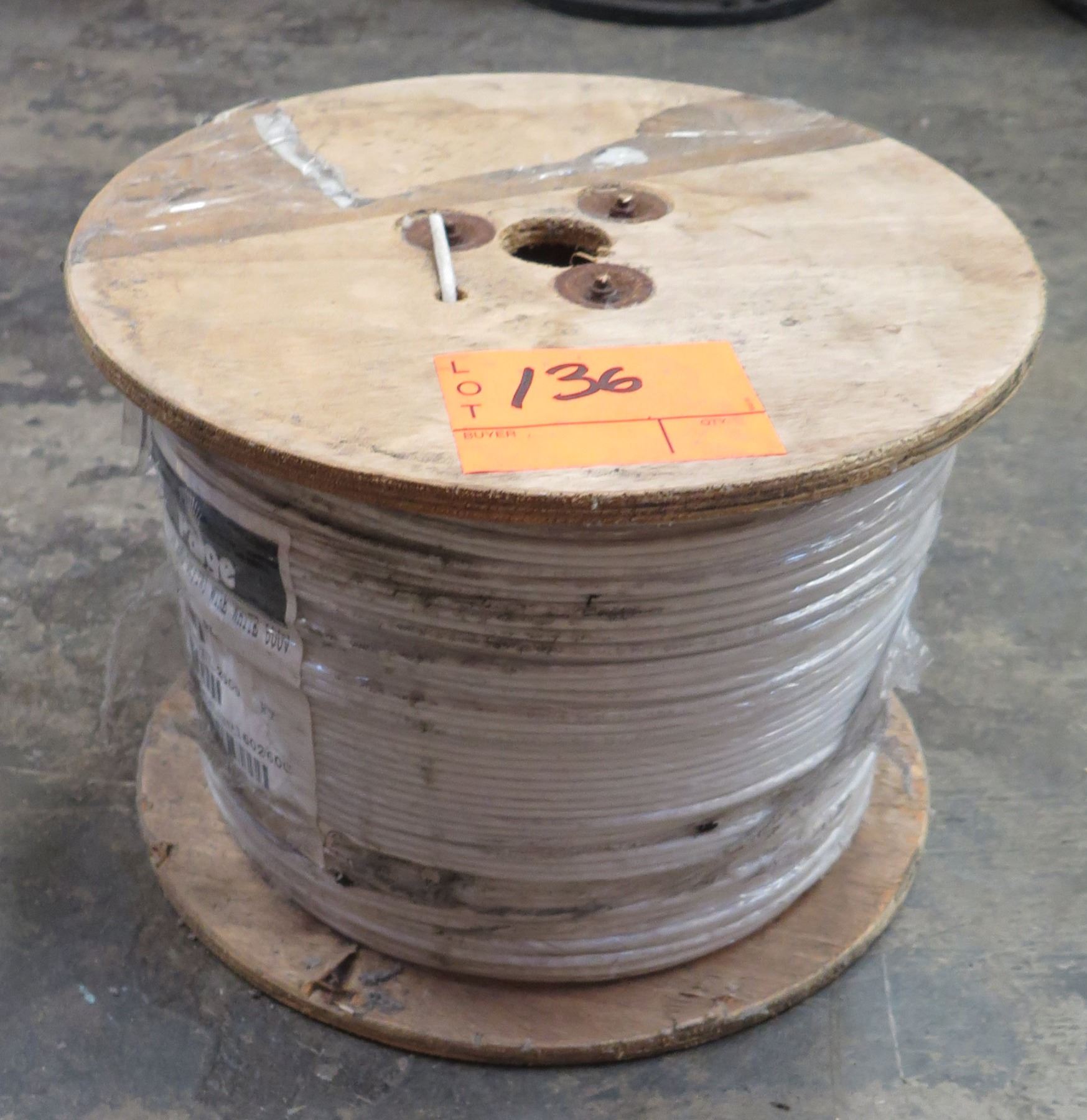

Southwire P20270 – Electronic Shielded Cable PVC Stranded Copper Conductor 4-Conductor 22 AWG 300V ac White 1000 ft.
The Southwire P20270 plenum 22 gauge multiconductor cable is ideal for; security, sound and audio, speaker cable, public address, intercom, sound reinforcement, alarm and access control circuits and power-limited controls. This 4 conductor cable is constructed with stranded bare copper for a flexible, yet sturdy design to reduce breakage. Aluminum foil shield, polyester reinforced tape and stranded tinned copper drain wire make this cable ideal for reducing electromagnetic interference (EMI) and radio frequency interference (RFI) for improved signal integrity. CMP/CL3P/FPLP FT6 rated, 300V and made in the USA. DLV sells this Southwire low smoke polyvinyl chloride (LS-PVC) sound and security cable in 1,000 ft lengths.
Construction
Conductor:Stranded bare copper per ASTM B8
Insulation:Low Smoke Polyvinyl Chloride (LS-PVC)
Shield:Aluminum foil shield with 24 AWG tinned drain wire
Rip Cord:Rip cord for ease of jacket removal
Jacket: White Low Smoke Polyvinyl Chloride (LS-PVC)
Standards & References
UL 1424 Cables for Power-Limited Fire-Alarm Circuits
ASTM B8 Concentric-Lay-Stranded Copper Conductors
UL 13 Power-Limited Circuit Cables
UL 444 Communications Cables (90ºC, 300V)
NFPA 262
Application & Features
For use in Remote Control, Signaling, and Power-Limited circuits per NEC Article 725. Sizes 22 AWG – 16 AWG can also be used as communication circuits per NEC Article 800. Can be used in security, sound and audio, speaker cable, public address, intercom, sound reinforcement, alarm and access control circuits and power-limited controls. The conductors are cabled together; lay length varies depending on conductor count and gauge size.
Datasheet: Southwire-Company-LLC-Southwire_Plenum_Shielded_Multiconductor_Cable_Data_Sheet
