Description

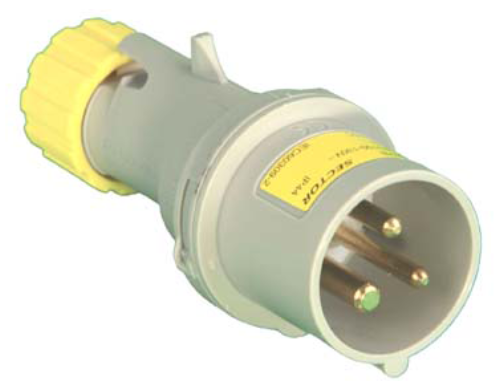

The Lewden PM16/1000FPB is a 16A, 110V straight plug, which has 2P+E pole configuration. This industrial plug has an IP44 rated thermoplastic construction with a yellow finish. Suitable for general use applications, this plug has a durable construction and utilises screwless radial cord grip technology for a more convenient installation.
IP Protection: IP44
Rated Current: 16A
Pole: 2P+E
Voltage: 110V
Multi Max Series Features
Manufactured from thermoplastic material, suitable for general use applications.
An economic range of plugs & connectors for trailing leads range covering 16A, 32A & 63A ratings.
Fast & simple assembly & wiring (typically 19 seconds), supporting lower installation costs.
Durable construction with high resistance to mechanical impact.
Available in both IP44 & IP67 versions.
Screwless radial cord grip technology.
Quarter turn snap lock body shell.
Multi Max Series – Protected Industrial Plugs and Socket-Outlets
The body of the Multimax socket-outlets and plugs are made of technopolymers with high resistance to impacts and crushing, ensuring dimensional stability and resistance to accidental treading.
In addition to their safety of operation and durability, which are much higher than the minimum limits prescribed by the standards in force, Multimax plugs are characterized by easy dismantling, wiring and reassembly. The body containing the insert is fixed to the grip containing the stepped gland by 1/4 of a turn screw system. The insert terminals point in one direction to speed up cable tightening. The cable easily fits into the cord grip and the seal is obtained by manually tightening the ring nut.
All these operations require less than approx. 20 seconds, which is about 1/4 of the time needed for connecting ordinary plugs. Safety is priceless and the time saved in assembly is money saved.
3 Good Reasons for Choosing Multi Max
1 SPEED IN ASSEMBLING THE GRIP
performed without tools, with 1/4 of a turn snaplock function.
2 GUARANTEE THAT THE CABLE REMAINS SECURE OVER TIME
the cord grip with the ring nut locking device prevents accidental loosening of the cable.
3 SAFETY OF PROTECTION RATING
even when the cable is under strain, thanks to an impossible to lose, screwless radial clamping cord grip. The membrane gasket works before the cord grip inside the grip.
Description|Product Plug
Features|Pole Configuration Double Pole + Earth (2P+E)
Features|Number of Pins 3
Features|Pin Shape Round
Features|Ingress Protection IP44
Material & Finish|Material Plastic
Material & Finish|Colour Yellow
Dimensions|Length Min Max 127 mm
Dimensions|Angle Straight
Technical Data|Voltage 110 V
Technical Data|Current Rating 16 A
General|Standards CEI EN 60309-1/60309-2/60529 IEC 60309-1/60309-2/60529
Dimension 16A 110V
Finish Yellow
Dimensions|Length 127 mm
Features|Ingress Protection (EF005474) IP44
Material & Finish|Material (EF001257) Plastic
Material & Finish|Colour (EF003882) Yellow
Dimensions|Length (EF004265) 127 mm
Technical Data|Current Rating (EF000227) 16 A
Material & Finish|Colour (EF000007) Yellow
Manufacturer Lewden Ltd
