Description
PSMN7R0-100PS,127 NXP / Nexperia Trans MOSFET N-CH 100V 100A 3-Pin(3+Tab), RoHS
Specifications
Manufacturer: Nexperia
Product Category: MOSFET
RoHS: Details
Technology: Si
Mounting Style: Through Hole

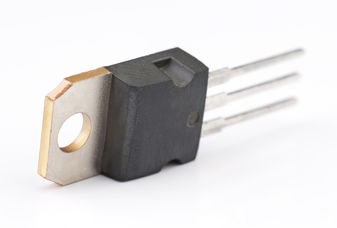

Package / Case: TO-220-3
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Vds – Drain-Source Breakdown Voltage: 100 V
Id – Continuous Drain Current: 100 A
Rds On – Drain-Source Resistance: 12 mOhms
Vgs th – Gate-Source Threshold Voltage: 4.6 V
Vgs – Gate-Source Voltage: 20 V
Qg – Gate Charge: 125 nC
Minimum Operating Temperature: – 55 C
Maximum Operating Temperature: + 175 C
Configuration: Single
Pd – Power Dissipation: 269 W
Channel Mode: Enhancement
Packaging: Tube
Height: 9.4 mm
Length: 10.3 mm
Transistor Type: 1 N-Channel
Type: N-Channel 100 V 6.8 mOhms Standard Level MOSFET in TO220
Width: 4.7 mm
Brand: Nexperia
Fall Time: 49.5 ns
Rise Time: 45.6 ns
Factory Pack Quantity: 1000
Typical Turn-Off Delay Time: 103.9 ns
Typical Turn-On Delay Time: 34.6 ns
Unit Weight: 0.211644 oz
Standard level N-channel MOSFET in TO220 package qualified to 175C. This product is designed and qualified for use in a wide range of industrial, communications and domestic equipment.
Manufacturer Part Number: PSMN7R0-100PS,127
Manufacturer: NXP
