Description

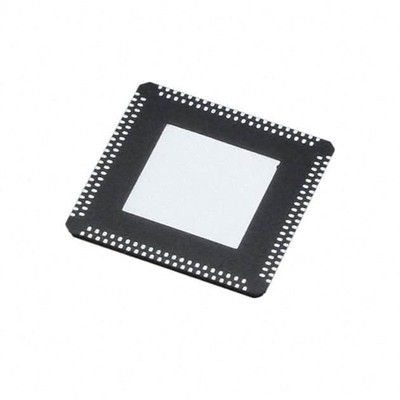

QCA9992 Qualcomm Combo Wireless Modules, Wave-2 802.11ac Solution with MU-MIMO for Enterprise Networks 35-Pin DRQFN
The QCA9992 from Qualcomm is a Wireless Chipset with Frequency 2.4 to 5 GHz, Data Rate 1.3 Gbps. The QCA9992 is a Wave-2 802.11ac radio that helps high-performance Wi-Fi access points to support more devices and more demanding applications in the enterprise and carrier hotspots. The dual-band, 3×3 solution is designed to deliver peak data rates up to 1.3 Gbps, and uses Multi-User MIMO to maintain fast connections on increasingly crowded networks.
The QCA9992 is a Wave-2 802.11ac radio that helps high-performance Wi-Fi access points to support more devices and more demanding applications in the enterprise and carrier hotspots. The dual-band, 3×3 solution is designed to deliver peak data rates up to 1.3 Gbps, and uses Multi-User MIMO to maintain fast connections on increasingly crowded networks.
Specifications
Wi-Fi
Peak Speed
Up to 1.3 Gbps
Generation
Wi-Fi 4, Wi-Fi 5
Standards
802.11a, 802.11b, 802.11g, 802.11n, 802.11ac
Spectral Bands
2.4 GHz, 5 GHz
Channels
5 MHz, 10 MHz, 40 MHz, 20 MHz, 80 MHz
MIMO Configuration
3×3
Spatial Streams
Up to 3
Encryption
AES-CCMP, AES-GCMP
Security
WPA, TKIP, WPS, WAPI, WPA2, WEP
Features
TxBF, MU-MIMO, Qualcomm® Wi-Fi SON
Interfaces
Supported Interfaces
1x ADC, UART, PCIe 2.0, SPI, JTAG, I²C, 1x DAC
Programmable I/Os
35
Layers
MAC, PHY
Analog-To-Digital Converter (ADC)
Number of Interfaces
1
Digital-To-Analog Converter (DAC)
Number of Interfaces
1
PCIe
Specification Version
PCIe 2.0
Package
Type
DRQFN
Size
12 × 12 mm
Process Node and Technology
Process Node
40 nm
Part Number
QCA9992
Manufacturer
Qualcomm
Description
Wave-2 802.11ac Solution with MU-MIMO for Enterprise Networks
General Parameters
Application
Network Infrastructure
Technology
WiFi
Frequency
2.4 to 5 GHz
WiFi Standard
802.11ac, 802.11ac, 802.11n, 802.11a/b/g
WiFi Applications
Access Points
WiFi Band
2.4 GHz/5 GHz
Data Rate
1.3 Gbps
Interface
PCIe 2.0, UART, SPI, I2C, JTAG
MIMO
Yes
MIMO Configuration
3×3
MU-MIMO
Yes
Dimension
12 x 12 mm
Package
DRQFN
Pins
35
