Description

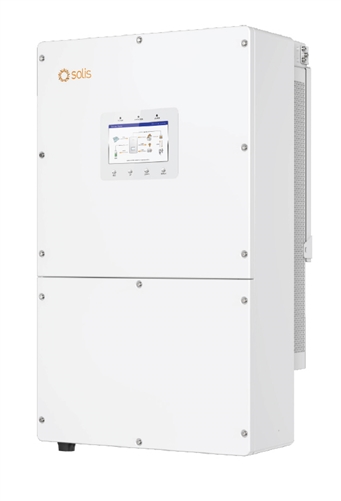

S6-EH3P30K03-NV-YD-H-US Solis Three Hybrid Inverter 30kVA 480Vac Three Phase Storage Inverter provides efficient solar energy conversion and seamless integration for commercial and industrial systems. Designed for reliability and high performance, it supports energy storage applications and optimizes power management across three-phase grids.
Introducing the Solis Commercial Hybrid Series. High voltage, three-phase energy storage for commercial applications. The inverter series, which boasts a maximum charge/discharge current of 70A+70A across two independently controlled battery ports, enabling optimum flexibility and scalability for commercial projects today and tomorrow. Whether for on or off-grid applications, the Commercial Hybrid series supports more flexible and scalable solar+storage with key features as well as an open ecosystem of today’s leading battery suppliers.
Model S6-EH3P30K03-NV-YD-H-US
Series Solarator Series: Three-Phase Commercial String Inverter
Manufacturer Solis
Mechanical / General Data
Type Three-Phase Hybrid Commercial Energy Storage Inverter – High Voltage:
30kW Three Phase 480 VAC Three MPPT without Integrated Transmitter
Dimensions (W x H x D) 22″ W x 36.6″ H x 12.6″ D
(560 mm W x 930 mm H x 320 mm D)
Weight 187.4 lbs
(85 kg)
Topology Transformerless
Self-consumption (night) <35 W
Relative humidity 0-95%
Operating ambient temperature range -13°F to 140°F (-25°C to 60°C)
Ingress protection NEMA 4X (IP66)
Cooling concept Natural Convection
Max. operation altitude 13,120 ft (4000 m)
Compliance UL1741SB, IEEE1547-2018, UL1699B, UL1998, FCCPart15ClassB, California Rule21, Hawaii Rule 14H, NEC 690.12-2020, CAN/CSA C22.2107.1-1
Shipping Method Freight
Input DC (PV side)
Max. usable PV input power 60 kW
Max Voltage 1000 V
Rated voltage 600 V
Start-up voltage 180 V
MPPT voltage range 150-850 V
Max.input current 40 A / 40 A / 40 A
Max. short circuit current 65 A / 65 A / 65 A
MPPT number/Max. input strings number 3 / 6
Max input power per MPPT 24 kW (600 V × 40 A)
Battery
Battery type Li-ion
Battery voltage range 150 - 800 V
Max. charge / discharge power 33 kW
Max. charge / discharge current 70 A × 2
No. of battery input 2
Max. charge / discharge power of each input 33 kW
Communication CAN / RS485
Output AC (Grid side)
Rated output power 30 kW
Max. apparent output power 33 kVA
Rated grid voltage 3/(N)/PE, 480 V
Rated grid frequency 60 Hz
Rated grid output current 36.1 A
Max. output current 39.7 A
Power factor > 0.99 (0.8 leading – 0.8 lagging)
THDi <3%
Input AC (Grid side)
Max. AC passthrough current 72.2 A
Rated input voltage 3/(N)/PE, 480 V
Rated input frequency 60 Hz
Input Generator
Max. input power 30 kW
Max. input current 36.0 A
Rated input voltage 3/(N)/PE, 480 V
Rated input frequency 60 Hz
Output AC (Back-up)
Rated output power 30 kW
Max. apparent output power 1.6 times of rated power with 10 s, 2 times of rated power with 100 ms
Back-up switch time < 10 ms
Rated grid voltage 3/(N)/PE, 480 V
Rated grid frequency 60Hz
THDv (@linear load) < 2%
Efficiency
Max. efficiency 97.8%
CEC efficiency 97.0%
Protection
Ground fault detection Yes
Residual (leakage) current detection Yes
Integrated AFCI Yes
DC reverse-polarity protection Yes
PV DC switch Yes
Bypass box Optional
Rapid shutdown NEC 2017 Integrated SunSpec-certified Transmitter
Compatible RSD receivers See MLRSD Compatibility Sheet
Protection class / Over voltage category I / II
Features
DC connection Spring clamp terminals
Grid AC connection Screw type terminal block
Back-up AC connection Spring clamp terminals
Battery DC connection Spring clamp terminals
Generator AC connection Spring clamp terminals
Interface 7.0" LCD display & Bluetooth + APP
Monitoring platform SolisCloud (modbus map and API sharing available upon request)
Revenue grade meter Integrated ANSI C12.20 (optional)
Communication CAN, RS485-115200, Ethernet, Optional: Wi-Fi, Cellular, LAN
