Description

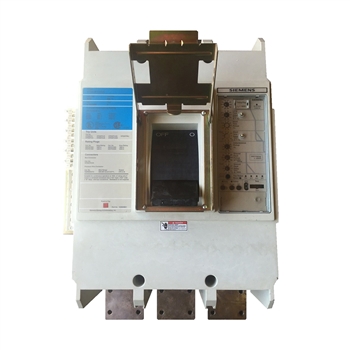

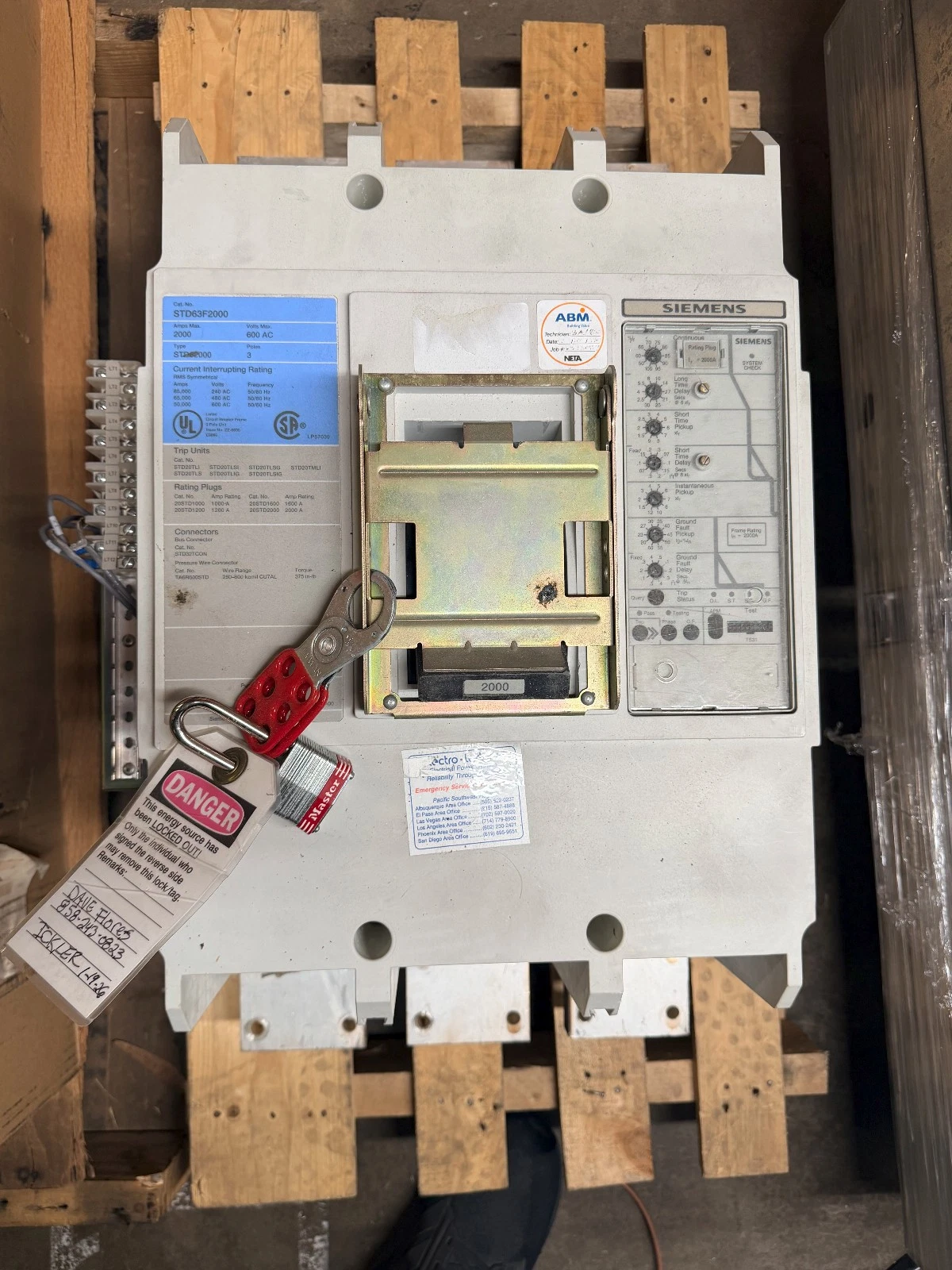

STD63F2000 ITE Siemens Circuit Breaker | 600V 2000A 3P 65kA@480V Bolt-On Sentron STD, 2000 Amp, 3 Pole, 600 Volt, Molded Case Circuit Breakers
STD63F2000 is a Siemens 3-pole molded case circuit breaker rated for 2000 amps and 600 volts, designed for industrial power distribution applications.This Siemens Sentron Series breaker features a 65kA interrupting rating at 480V, suitable for high fault current environments.
Key Specifications
Amperage: 2000A
Voltage Rating: 600V
Poles: 3
Interrupting Rating: 65kA at 480V
Series/Frame: Sentron STD Frame
Mounting Type: Molded Case
Trip Unit: Microprocessor-controlled electronic trip unit with adjustable settings
Certifications: Compliant with applicable NEC and IEC standards
Specifications
Part Number: STD63F2000
Manufacturer : Siemens
Category : Circuit Breaker
Item Subcategory : Molded Case
Family : Sentron Series
Type : STD
Voltage : 600
Amperage : 2000
Phase : 3
Poles : 3
AIC rating : 65kA@480V
Connection : Bolt-On
Protection : Solid State
Weight : 75
Part Number STD63F2000H
Manufacturers ITE Siemens
Sub-Category Molded Case
Family Sentron Series
Type STD
Voltage 600V
Amperage 2000A
Protection Solid State
Poles 3
Connection Bolt-On
Frame Type STD Frame
Phase 3
AIC Rating 65kA@480V
