Description

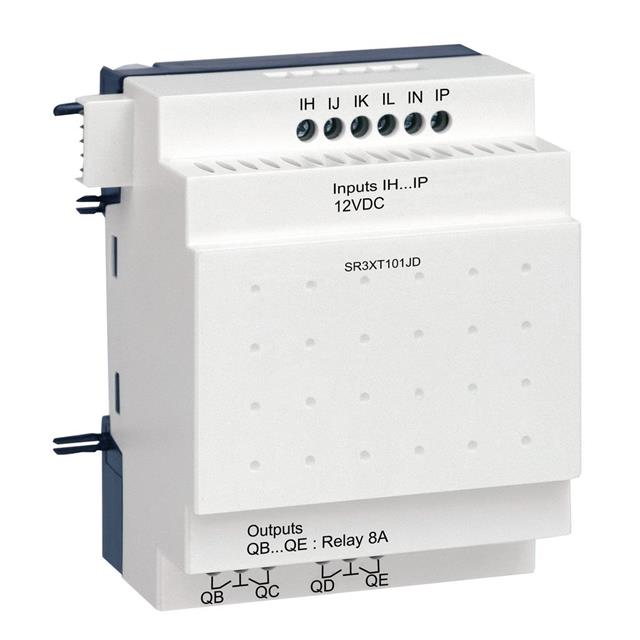

SR3XT101JD Schneider Electric Zelio Logic Input, Output (I/O) Module 12VDC 4 Relay 6 Digital DIN Rail Screw Terminal for Zelio Logic Series Discrete I/O Extension Module Type; SR3B Series Smart Relay Used on; 12 VDC Operating Voltage; Approval UL, CSA, C-TICK, GOST, GL; Number of Inputs 6; Number of Outputs 4 Relay; Size 72 mm W X 59.5 mm D X 107.6 mm H; Enclosure Type IP20/IP40; SR3 Model
Number of Outputs
4 relay
Response Time
10 ms from state 0 to state 1)relay output, 5 ms from state 1 to state 0)relay output
Standards
IEC 60068-2-27 Ea, IEC 61000-4-5, IEC 61000-4-12, IEC 61000-4-4 level 3, IEC 61000-4-2 level 3, IEC 61000-4-3, IEC 60068-2-6 Fc, IEC 61000-4-11, IEC 61000-4-6 level 3
Tightening Torque
0.5 N.m
Output Thermal Current
8 A for all 4 outputs relay output
Catalog Number: SR3XT101JD
Model: SR3
Type: DISCRETE I/O EXTENSION MODULE
Operating Voltage: 12 VDC
Used On: SR3B SERIES SMART RELAY
Additional Information: APPROVAL UL, CSA, C-TICK, GOST, GL; NUMBER OF INPUTS 6; NUMBER OF OUTPUTS 4 RELAY; SIZE 72 MM W X 59.5 MM D X 107.6 MM H; ENCLOSURE TYPE IP20/IP40
CATALOG DESCRIPTION: DISCRETE I/O EXTENSION MODULE, ZELIO LOGIC, 10 I/O, 12 V DC
Category: Programmable Logic & Automation Base CpuS & Controllers
Manufacturer PN: SR3XT101JD
Manufacturer: Schneider
