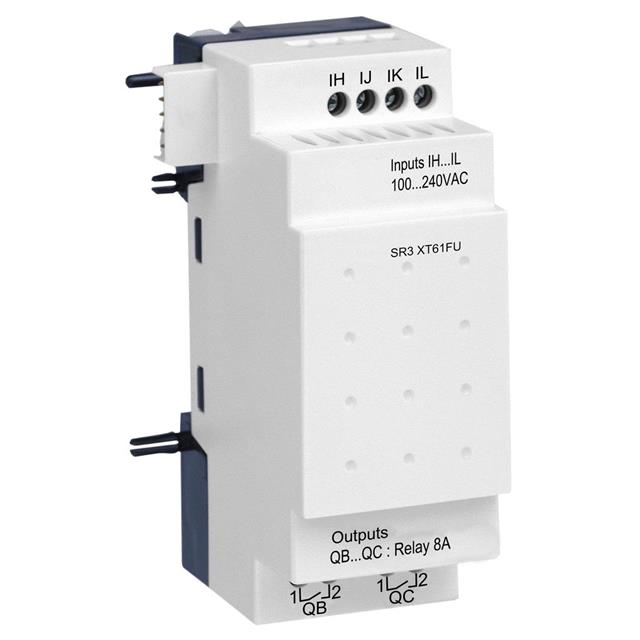

SR3XT61FU Schneider Electric Zelio Logic Input, Output (I/O) Module 100 ~ 240VAC 2 Relay 4 Digital DIN Rail Screw Terminal for Zelio Logic Series Expansion module 100-240 VAC with 4 discrete input/2 relay output for use on Zelio Logic 2 smart relays. This Zelio Logic SR3 discrete I/O extension module smart relays uses a supply voltage of 100V-240V alternating current. It has 6 inputs / outputs contact with screw-clamp terminals. It enables simple ladder programming, adapted for non-specialists.
MAIN SPECIFICATIONS
Analogue Input Number 100…240 V AC
Contacts Type And Composition NO for relay output
Discrete Input Number 4
Range Of Product Zelio Logic
Discrete Input Voltage 100…240 V AC
COMPLEMENTARY
Analogue Input Type 4
Backup Time 10 years at 25 °C
Checks Program memory on each power up
Clock Drift 12 min/year at 0…55 °C
Connections – Terminals Screw terminals, 1 x 0.25…1 x 2.5 mm² (AWG 24…AWG 14) flexible with cable endScrew terminals, 2 x 0.25…2 x 0.75 mm² (AWG 24…AWG 18) flexible with cable endScrew terminals, 1 x 0.2…1 x 2.5 mm² (AWG 25…AWG 14) semi-solidScrew terminals, 1 x 0.2…1 x 2.5 mm² (AWG 25…AWG 14) solidScrew terminals, 2 x 0.2…2 x 1.5 mm² (AWG 24…AWG 16) solid
Current State 0 Guaranteed <= 0.5 mA (discrete input)
Current State 1 Guaranteed >= 0.17 mA (discrete input)
Cycle Time 6…90 ms
Discrete Input Current 0.6 mA
Discrete Input Frequency 57…63 Hz47…53 Hz
Electrical Durability AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to EN/IEC 60947-5-1AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to EN/IEC 60947-5-1DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to EN/IEC 60947-5-1DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to EN/IEC 60947-5-1
Input Impedance 350 kOhm for discrete input
Mechanical Durability 10000000 cycles for relay output
Number Of Outputs 2 relay
Number Or Control Scheme Lines 120 with ladder programming
Operating Rate In Hz 0.1 Hz (at Ie) for relay output10 Hz (no load) for relay output
Output Thermal Current 8 A for all 2 outputs for relay output
Output Voltage Limits 5…30 V DC (relay output)24…250 V AC
Response Time 50 ms with ladder programming (from state 0 to state 1) for discrete input50 ms with ladder programming (from state 1 to state 0) for discrete input50…255 ms with FBD programming (from state 0 to state 1) for discrete input50…255 ms with FBD programming (from state 1 to state 0) for discrete input10 ms (from state 0 to state 1) for relay output5 ms (from state 1 to state 0) for relay output
Reverse Polarity Protection With
Supply Frequency 50/60 Hz
Supply Voltage Limits 85…264 V
Switching Capacity In MA >= 10 mA at 12 V (relay output)
Tightening Torque 0.5 N.m
Voltage State 0 Guaranteed <= 40 V for discrete input
Voltage State 1 Guaranteed >= 79 V for discrete input
[Uimp] Rated Impulse Withstand Voltage 4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1
ENVIRONMENT
Ambient Air Temperature For Operation -20…40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2-20…55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2
Ambient Air Temperature For Storage -40…70 °C
Disturbance Radiated/conducted Class B conforming to EN 55022-11 group 1
Environmental Characteristic EMC directive conforming to EN/IEC 61000-6-2EMC directive conforming to EN/IEC 61000-6-3EMC directive conforming to EN/IEC 61000-6-4EMC directive conforming to EN/IEC 61131-2 zone BLow voltage directive conforming to EN/IEC 61131-2
IP Degree Of Protection IP20 (terminal block) conforming to IEC 60529IP40 (front panel) conforming to IEC 60529
Maximum Altitude Transport 3048 m
Operating Altitude 2000 m
Overvoltage Category III conforming to EN/IEC 60664-1
Pollution Degree 2 conforming to EN/IEC 61131-2
Product Certifications CSAGOSTC-TickULGL
Standards EN/IEC 61000-4-11EN/IEC 60068-2-27 EaEN/IEC 61000-4-4 level 3EN/IEC 61000-4-5EN/IEC 61000-4-12EN/IEC 60068-2-6 FcEN/IEC 61000-4-2 level 3EN/IEC 61000-4-3EN/IEC 61000-4-6 level 3
OTHER
[Us] Rated Supply Voltage 100…240 V AC
