Description

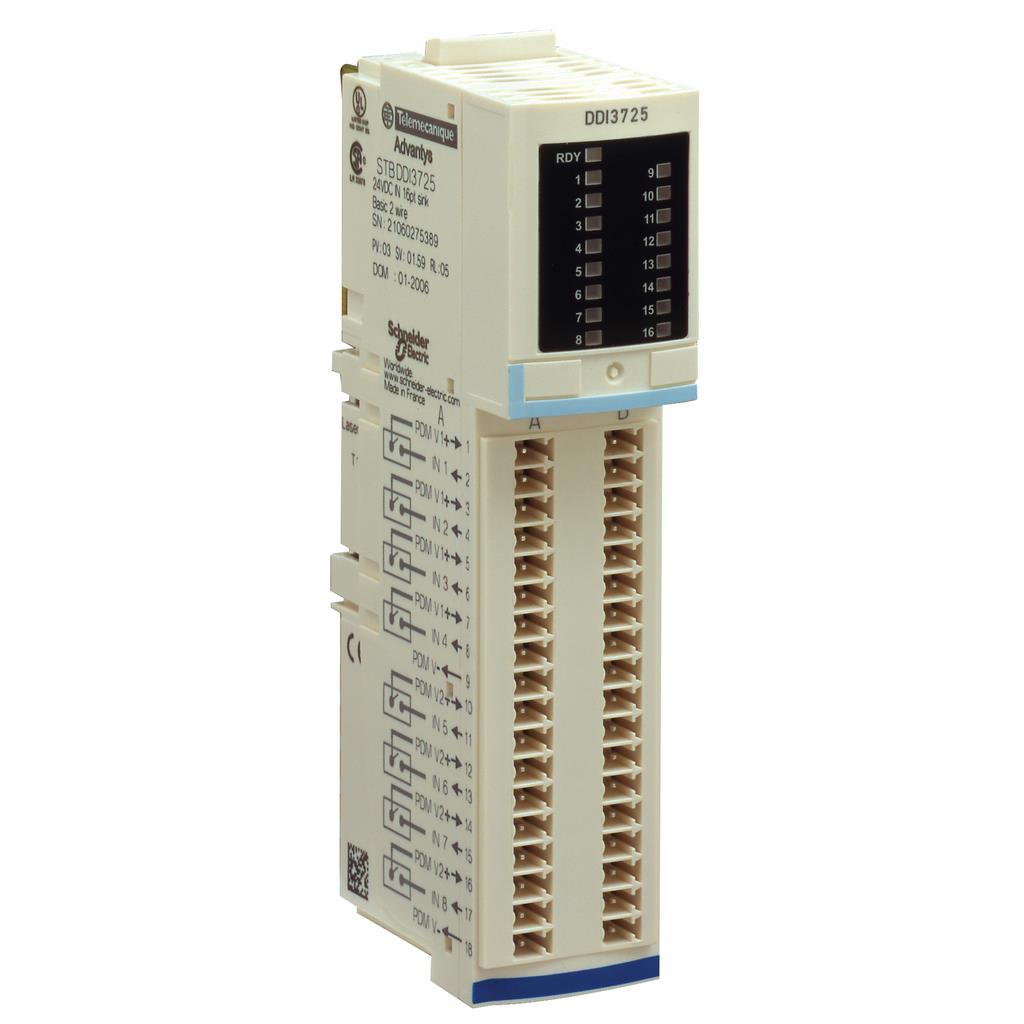

STBDDI3725 Schneider Electric Modicon Input Module 24VDC 16 Digital DIN Rail Screw Terminal for Modicon STB. This input module is part of the Modicon STB range, an offer of IP20 modular distributed I/Os on multiple networks and fieldbus. This basic digital input module offers 16 inputs with positive discrete input logic. It is a module with discrete input voltage of 24V DC. There is an insulation between channels and logic bus at 1500V for 1 minute. It is an IP20 rated product. Its dimensions are 125mm (width) x 65.1mm (depth) x 18.4mm (height). It weighs 0.086kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It meets EN/IEC 61131-2 type 3 standard. It is compatible with I/O base STBXBA3000 and power distribution module STBPDT3100/3105. Advantys distributed I/O solutions are simple, open and flexible, meeting needs in every stage of the product life cycle. For distributed connection to sensors and actuators from a PLC with prefabricated cables.
Manufacturer PN: STBDDI3725
Manufacturer: Schneider
Schneider Electric Modicon Digital Input Module, 2-Wire Basic, Series: STB, 16 Inputs, 11 to 30 V DC Signal, 2 ms Step Response, 24 VDC, 100 mA, -25 to 70 deg C, 65.1 mm L x 125 mm W x 18.4 mm H Dimensions
Additional Description: SQD -STBDDI3725 (N) 24VDC IN 16PT SINK BASIC 2 WIRE WIRE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: basic digital input module, Modicon STB, 24V DC, 16I
STBDDI3725 Application
For STBXBA3000 I/O base, STBPDT3100/3105 power distribution module, packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications
STBDDI3725 Item Features
Integrated power protection fuse on PDM time lag 5A
Wide range of operating temperature from -25 deg C to 70 deg C
