Description

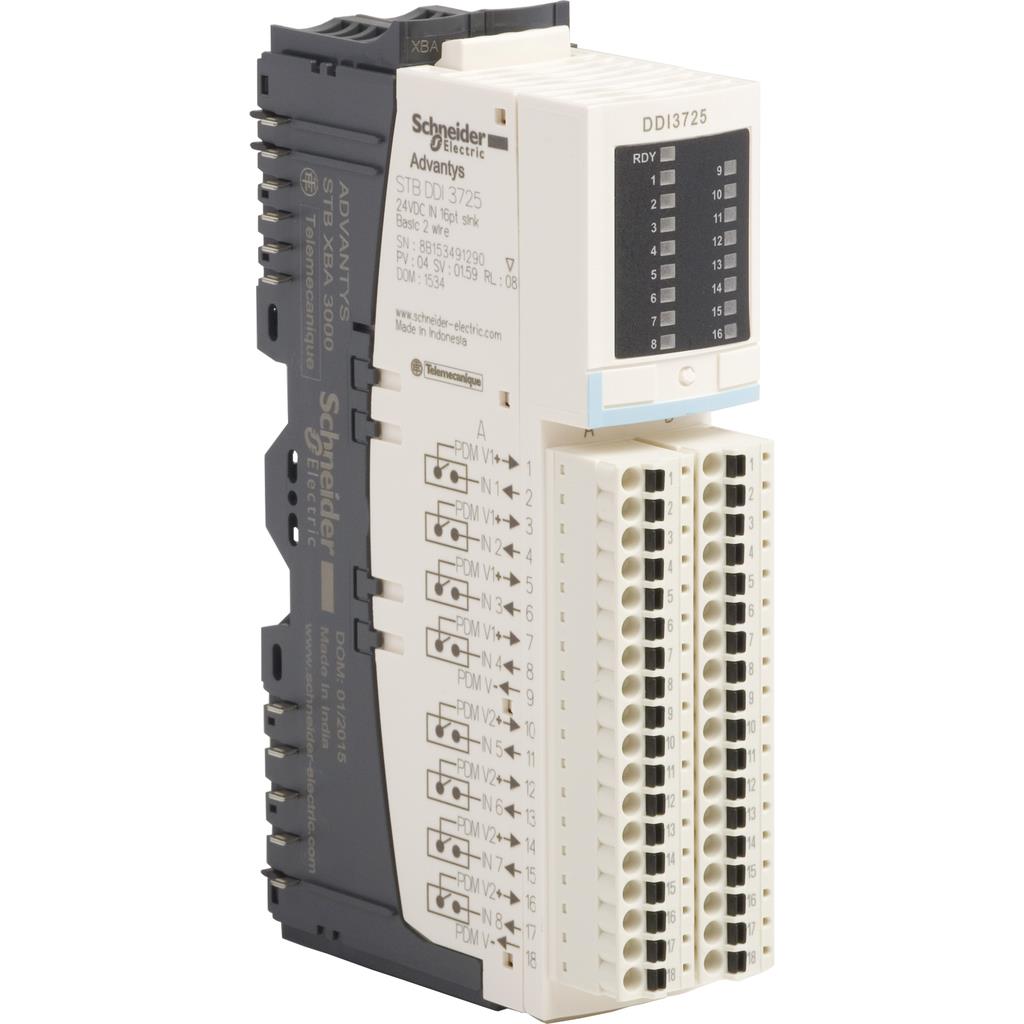

Schneider Electric Modicon® STBDDI3725KC Basic Digital Input Kit, 16 Inputs, 11 to 30 V DC Signal Range, DIN Rail Screw Terminal for Modicon STB. This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic discrete input kit has 16 discrete inputs with positive logic. It is a discrete input kit with a rated supply voltage of 24V DC and a current consumption of 100mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 28.1mm (Length) x 65.1mm (width) x 125mm (depth) and weighs 0.086kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. It meets EN/IEC 61131-2 type 3 standards. This kit is suitable for use with I/O base STBXBA3000 and power distribution module STBPDT3100/3105. The kit includes STBXTS2180, 18-terminal spring clamp connector, STBDDI3725 module and STBXBA3000 base. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Manufacturer PN: STBDDI3725KC
Manufacturer: Schneider
Range of Product Modicon STB distributed I/O solution
Product or Component Type Basic digital input kit
Kit composition STBXTS2180, 18-terminal spring clamp connector
STBDDI3725 module
STBXBA3000 base
Product Compatibility I/O base STBXBA3000
Power distribution module STBPDT3100/3105
Discrete input number 16
Discrete input voltage 11…30 Vtype 1
– 3…5 V
Discrete input logic Positive
