Description

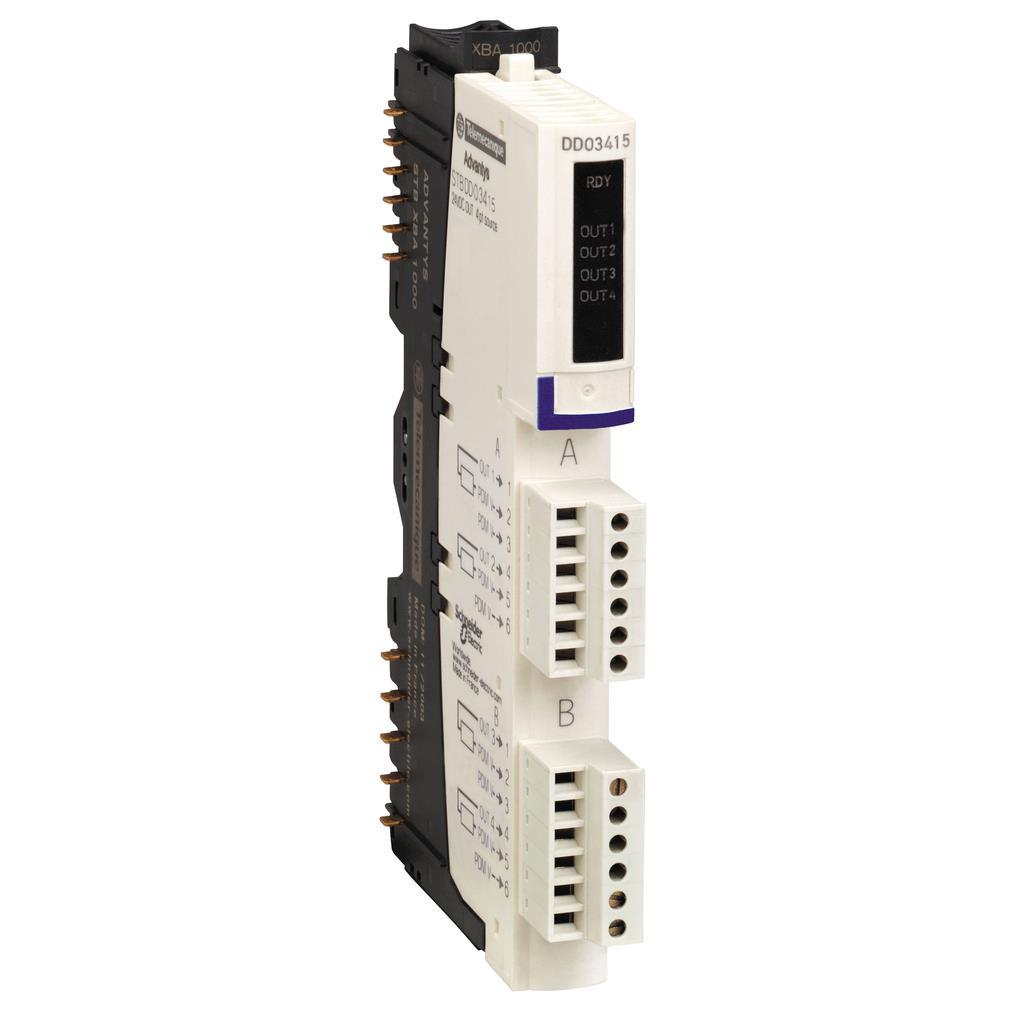

STBDDO3415K Schneider Electric basic digital output kit – Modicon STB – 24 V DC – 4 O, 24VDC 4 Digital DIN Rail Screw Terminal for Modicon STB
Manufacturer PN: STBDDO3415K
Manufacturer: Schneider
Discrete output current: 250 mA
Discrete output logic: Positive
Output voltage: 19.2…30 V DC
Absolute maximum voltage: 56 V 1.3 ms
Response time: 560 µs off-to-on870 µs on-to-off
Cold swapping: Yes
Hot swapping fallback: No for basic NIMs
Protection type: Power protection integrated fuse on PDM time lag 5 AReverse polarity protectionShort-circuit protectionThermal overload protection
Insulation between channels and logic bus: 1500 V for 1 minute
Maximum leakage current: 0.4 mA at state 0 30 V
Surge current: 2.5 A 0.5 ms
Maximum load capacitance: 50 µF
Maximum load inductance: 500 mH at 4 Hz
Reset: Manual or automatic reset COM fault
Product compatibility: I/O base STBXBA1000Power distribution module STBPDT3100/3105
[Us] rated supply voltage: 24 V DC
Supply: Power distribution module
Current consumption: 70 mA at 5 V DC for logic bus
Marking: CE
Overvoltage category: II
Status LED: 1 LED (green) module status (RDY)1 LED per channel (green) channel status (OUT1 to OUT4)
Height: 13.9 mm
Depth: 70 mm
Width: 128.3 mm
Net weight: 0.11 kg
