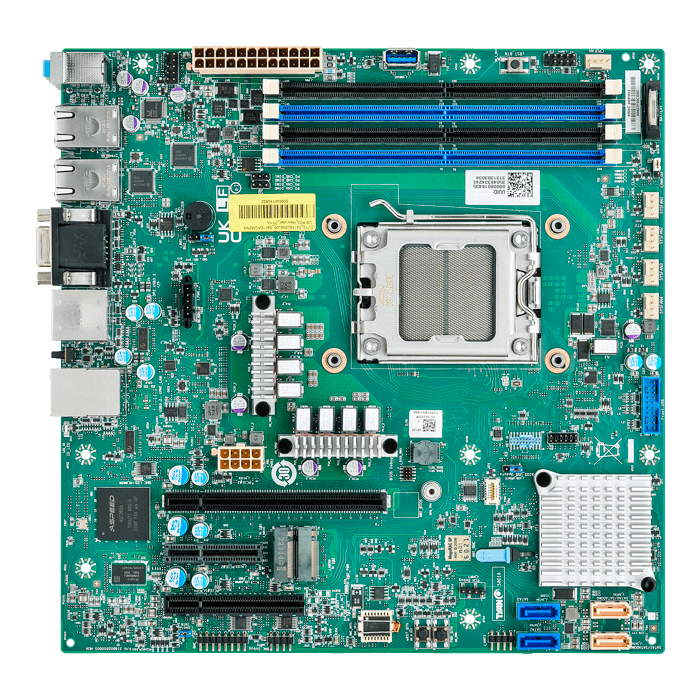

Tyan S8016AGM2NR AMD EPYC 4004 and Ryzen 7000 Micro ATX Motherboard with BMC for CSP Deployment
The S8016 Server Motherboard is a compact, high-performance, and cost-effective solution tailored for Cloud Service Provider (CSP) deployments. Featuring a single AMD AM5 socket, this micro ATX board supports both AMD EPYC 4004 and AMD Ryzen 7000 processors, offering robust performance and advanced features for efficient data center operations.
Specifications
Processor Q’ty / Socket Type (1) AMD Socket AM5
Supported CPU Series (1) AMD Ryzen 7000 Series Processor / (1) EPYC™ 4005/4004 Series Processors
Thermal Design Power Wattage Max up to 170W (TDP)
Chipset PCH AMD B650 FCH
Memory Supported DIMM Qty (4) DIMM slots
DIMM Type / Speed DDR5 ECC UDIMM & non-ECC 5600
Capacity Up to 128GB UDIMM
Memory channel 2 Channels per CPU
Memory voltage 1.1V
PCIe Expansion Slots PCIe (1) PCIe Gen.4 x4 slot / (1) PCIe Gen.4 x8 slot ( w/ x4 link) / (1) PCIe Gen.5 x16 slot
Networking Q’ty / Port (2) GbE ports
Controller Intel I210
PHY Realtek RTL8211F
Storage SATA Connector (4) SATA
Controller AMD B650
Speed 6Gb/s
RAID RAID 0/1/5/10
Storage NVMe Connector (M.2) (2) 2280 (by PCIe.4 x2 interface)
Graphic VGA Connector type (1) VGA
Resolution Up to 1920×1200
Chipset Aspeed AST2600
Graphic Display Port Connector type (2) Display ports 1.2
Resolution Up to 4096X2304 @60Hz
Chipset AMD AM5 Ryzen processor
Input /Output USB (1) USB3.2 Gen.1 header / (1) USB 3.2 Gen1 TYPE A / (4) Stacked USB 3.2 Gen1 port (@rear)
VGA (1) VGA port
RJ-45 (2) GbE ports + (1) GbE dedicated for IPMI
Audio Line-in, Line-out, Mic-in connectors
SATA (2) SATA-III connectors / (2) SATA-DOM connectors
Power ATX 24-pin / (1) 2×4 Power input connector
Display port (2) Display ports 1.2
Others (1) ID button
TPM (Optional) TPM Support Please refer to our TPM supported list.
Interface SPI
System Monitoring Chipset Aspeed AST2600
Fan Total (5) 4-pin headers
Temperature Monitors temperature for CPU & system environment
Voltage Monitors voltage for CPU, memory, chipset & power supply
LED Processor fail LED indicator
Audio Chipset Realtek ALC888S
Feature 2 ch
Connector (1) 3 holes Audio Jack
Server Management Onboard Chipset Onboard Aspeed AST2600
AST2600 iKVM Feature 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2600 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
BIOS Brand / ROM size AMI / 32MB
Feature Console Redirection / ACPI sleeping states S0,S3,S5
Physical Dimension Form Factor Micro ATX
Board Dimension 9.6″ x 9.6″ (243.8 x 243.8mm)
Regulation FCC (SDoC) Class B
CE (DoC) Class B
Operating Environment Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. – 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Compliant Yes
Operating System OS supported list Please refer to our AVL support lists.
Package Contains Motherboard (1) S8016 Motherboard
Manual (1) Quick Installation Guide
I/O Shield (1) I/O Shield
Cable (2) SATA signal cables
