Betterfuse Thermal Protectors
Quick Overview
The Betterfuse Thermal Protectors are compact, thermally operated snap-action devices designed to offer maximum protection in a minimal footprint. At the core of these protectors is a bi-metal snap-action strip that serves as the operational heart. When this strip reaches its calibrated temperature-triggered by a rise in ambient temperature, increased current flow, or both-it snaps open, creating an open circuit. This effectively interrupts the current flow, providing thermal protection. Once the system cools down, the Betterfuse automatically resets itself, allowing power to be restored to the circuit.
Details
Thermal Protectors
Betterfuse offers a diverse range of thermal protectors, each designed for specific shapes and applications. These include round and flat designs, pressure-resistant or sealed options, and both current-independent and current-sensitive models. Despite these differences, all Betterfuse thermal protectors share a commitment to the highest quality and performance in temperature protection.
In addition to exceptional quality, Betterfuse provides competitive pricing and excellent customer service. Their products are widely used across various industries, including automotive, food service, compressors, A/C motors, transformers, and medical equipment. The increasing power density in electronic circuits and the trend towards miniaturization often result in dangerously high temperatures. Compact modules that house multiple functions typically exhibit high power consumption. Even minor increases in current in power electronics, with minimal power dissipation, can lead to temperatures soaring to approximately 200 °C. This can have serious consequences, including damage or detachment of nearby components, harm to the printed circuit board structure, and in the worst case, the risk of triggering a fire.
No Overheating With Thermal Protectors
Thermal protectors are essential for motor safety. When a motor overheats, the thermal protector disconnects the electricity, preventing potential fires. These protectors are installed internally within the motor and utilize a bimetal disc made of two different metals to break the electrical contact when the temperature threshold is exceeded. This feature can be customized based on the required temperature, size, and metal composition.
Choose From a Variety of Thermal Protectors
Betterfuse manufactures thermal protectors using a range of durable and precise materials, including brass, SS 316, CS, Hastelloy, and Titanium Monel. By starting with these high-quality materials, Betterfuse ensures their products are reliable and effective.
Overall, Betterfuse’s thermal protectors provide robust and reliable temperature protection, making them an excellent choice for various industrial applications.

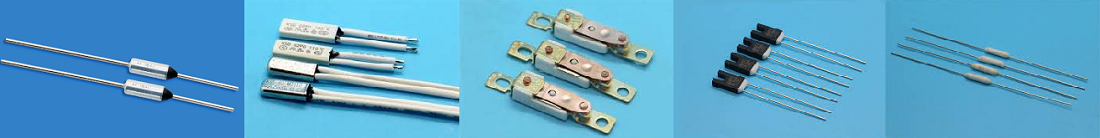

Betterfuse Thermal Protectors
.jpg "ATM Series")

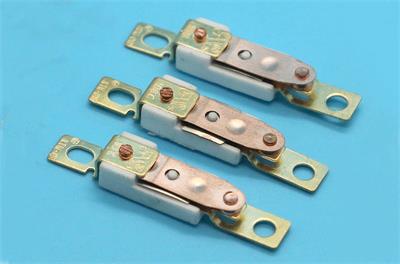

ATM Series
Limit Thermostats
ATMseries temperature switch generally protects the over temperature circuits by disconnecting the shell . ATM temperature control switch series, mainly used in fan, heaters, dryers, lighting protection circuits. Download
Operating Temperature:
60~150 C
Rated Voltage:
AC: 125/250V

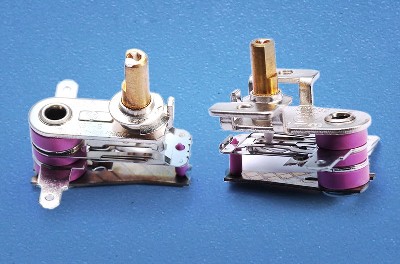

KST Series
Adjust Thermal Switch
KST series temperature switch, KST – A, KST – B – C, KST – D and KST – R. KST series temperature switch is mainly applied to grill, electric iron, fan heater, oil heater, simmer pot, frying pan and protection circuits.C Download
Maximum Operating Temperature:
250 C
Rated Voltage:
AC: 125/250V
.jpg "KSD02 Series")

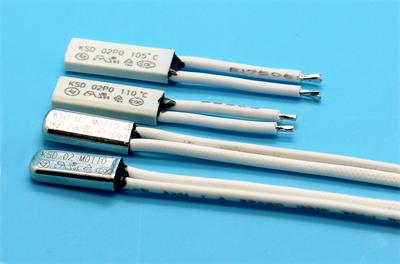

KSD02 Series
Themal Protector
KSD02 is small thermal protector, there are metal and plastic shell, operating temperature range: 60~150C( for metal), 60~120C( for plastic). It is suitable for T5/T8 light, pack battery, small motor, transformer, etc.
Operating Temperature:
60~150C(metal), 60~120C(
.jpg "KSD05 Series")

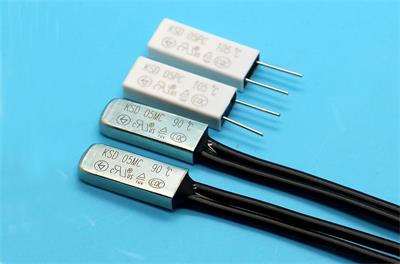

KSD05 Series
Thermal Protector
KSD05 is small thermal protector, there are metal and plastic shell, operating temperature range: 60~150C( for metal), 60~120C( for plastic). It is suitable for T5/T8 light, pack battery, small motor, transformer, etc.
Operating Temperature:
60~150C(metal), 60~120C

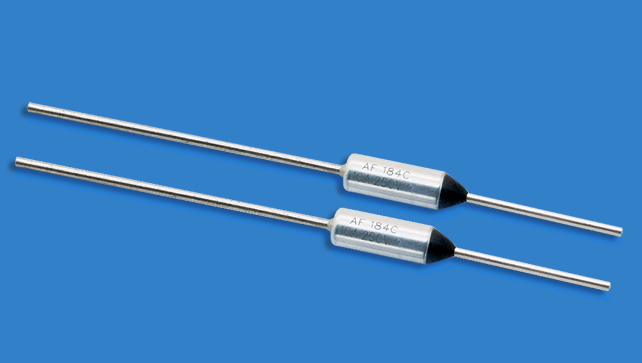

AF Series
Rated Voltage
Action Temperature:73?-240(73, 77, 84, 94, 99, 113, 121, 128, 133, 142, 157, 172, 184, 192, 216, 229,240C) Download
Rated current: 10A,15A
Action Temperature:73?~240C
Rated Voltage:250Vac
.jpg "No.BTA")

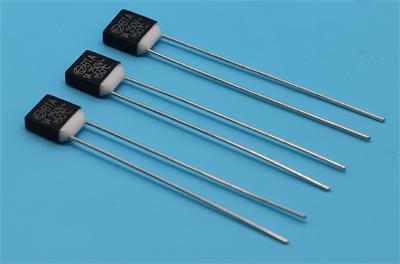

BTA Series
Plastic shell thermal fuse
BTA series one-time thermal fuse are used in the thermal protection circuit. The BTA series thermal fuse is mainly used in household appliance, water heater, lighting and other equipment. Download
Rated Current:
1A
Action Temperature:
102~150C
Rated Voltage:
AC: 250V
.jpg "No.BTB")

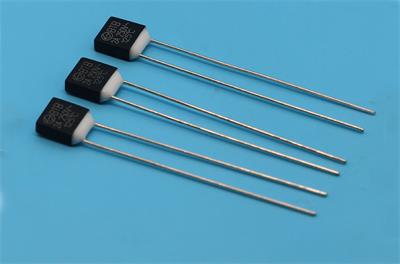

BTB Series
Plastic shell thermal fuse
BTB series one-time thermal fuse are used in the thermal protection circuit. The BTB series thermal fuse is mainly used in household appliance, water heater, lighting and other equipment. Download
Rated Current:
2A
Action Temperature:
102~150C
Rated Voltage:
AC: 250V
.jpg "No.BTC")

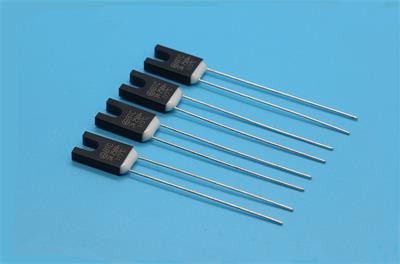

BTC Series
Plastic shell thermal fuse
BTC series one-time thermal fuse are used in the thermal protection circuit. The BTC series thermal fuse is mainly used in household appliance, water heater, lighting and other equipment. Download
Rated Current:
3A
Action Temperature:
115C
Rated Voltage:
250Vac
.jpg "BTT Series")

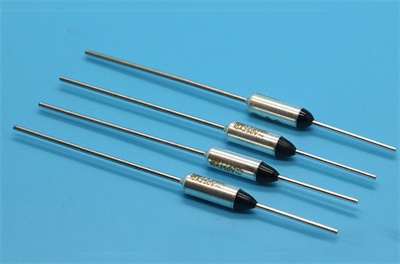

BTT Series
Metal shell thermal fuse
BTT series one-time thermal fuse are used in the thermal protection circuit. The BTT series thermal fuse is mainly used in household appliance, water heater, lighting and other equipment. Download
Rated Current:
10A, 15A
Action Temperture:
73~240C
Rated Voltage:
AC: 125/250V
.jpg "BTW Series")
BTW Series
Thermal Fuse
BTW series one-time thermal fuse are used in the thermal protection circuit. The BTW series thermal fuse is mainly used in household appliance, water heater, lighting and other equipment. Download
Rated Current:
1A,2A
Action Temperature:
150C
Rated Voltage:
AC: 250V
