Vitrohm Shunt Resistors
Quick Overview
Vitrohm Shunt Resistors

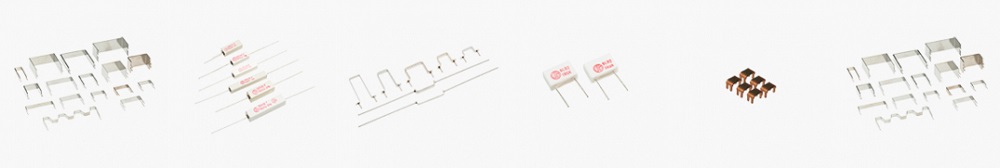

Vitrohm Shunt Resistors offer a rated power range of 2.2W to 10W, resistance values up to 0.05Ω, and AEC-Q200 qualification. These resistors feature a power current sensor, excellent overload and heat dissipation capabilities, low inductance, welded construction, and superior stability in various environmental conditions. Available in open frame, ceramic case, and molded versions, Vitrohm Shunt Resistors are ideal for pulse applications, switching equipment, instrumentation, and power amplifiers.
Details
Vitrohm Shunt Resistors Overview
A shunt resistor diverts current by providing a low-resistance path, making it useful for current measurement in circuits. By directing most of the current through the shunt, the voltage across it can be measured and used to calculate the total current.
Applications of Shunt Resistors
Vitrohm’s Current Sense Shunt Resistors are widely used in automotive and industrial markets to detect current in high-power systems. In the automotive industry, the shift towards computerized and electro-mechanical systems, driven by the demand for increased safety, efficiency, and electric vehicles, has led to a greater need for compact shunt resistors to support the growing number of motors and ECUs.
Key Features
- Precision battery management resistor
- High conductivity copper terminals
- High current and pulse load capability
- Custom-made shunts available upon request
- Tinned terminals available upon request
- Excellent long-term stability
- AEC-Q200 qualified
- RoHS and REACH compliant
- Low inductance
- All-welded construction
- Strong overload and heat dissipation capability
- Power range from 2.2W to 10W
- Resistance up to 0.05Ω
Applications
- Battery chargers
- Pulse applications
- Voltage dividers
- Switching equipment
- Telecommunications
- Instrumentation
- Power amplifiers
Shunt resistors
KNC Series
KNC500 to KNC10A
Historical Name – KN8 Series
0R003 up to 0R1
4,5W to 10W
KNS Series
KNS100 to KNS300
Historical Name: KN and KNA Series
0R003 up to 0R12
1W to 3W
About Vitrohm
Founded in Denmark in 1933, Vitrohm is now an independent business unit of YAGEO Corporation, Taiwan, with European headquarters in Portugal. Vitrohm employs over 200 people in engineering, production, and logistics and has established a reputation for producing high-quality resistive products for decades. Specializing in wirewound and film resistors, Vitrohm offers a variety of types, including coated, molded, ceramic, and aluminum housed resistors for both surface-mount and through-hole applications. In addition to standard offerings, Vitrohm provides extended specifications and custom solutions to meet market demands.
Vitrohm Products Include:
- Wirewound Resistors
- Ceramic Housed Resistors
- SMT Wirewound Resistors
- SMT Shunt Resistors
- High Power Resistors
- Metal Oxide Resistors
- Metal Film Resistors
- Metal Band Low Ohm Resistors
- Safety Fusing Resistors (110V/220V/UL certified)
Vitrohm is ISO 9001 certified and continuously expanding its product range to meet the needs of modern applications.
