Description

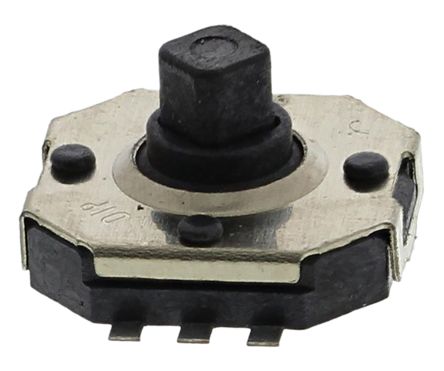

MT5-F-V-T/R Diptronics Electromechanical Switch SPST 0.05A T/R 50 mA @ 12 Vdc 1.4mm
Navi 5ways SMT-G 7,4×7,4×4,5mm
Supplier: Diptronics
Matchcode: MT5FVTR
Unit Pack: 850
MOQ: 1700
Packaging: INDIVIDUAL
Termination SMT Operating force 1,6/3,6 N Model Construct Straight Sealing IP40 Dimension 7,4×7,4 mm Total high/long H4,5 mm Operating temp. -25 to 70 °C Operating life 100000 cycles max.Volt/Switch 12 DC V max.I / Switch 50 mA Illuminated No Y/N Contact type 5 ways Button version Navigation Ground No Y/N Automotive NO Leadfree Defin. RoHS-conform Packaging INDIVIDUAL
Manufacturer:Diptronics
Datasheet:Diptronics/Diptronics-Catalog.pdf
