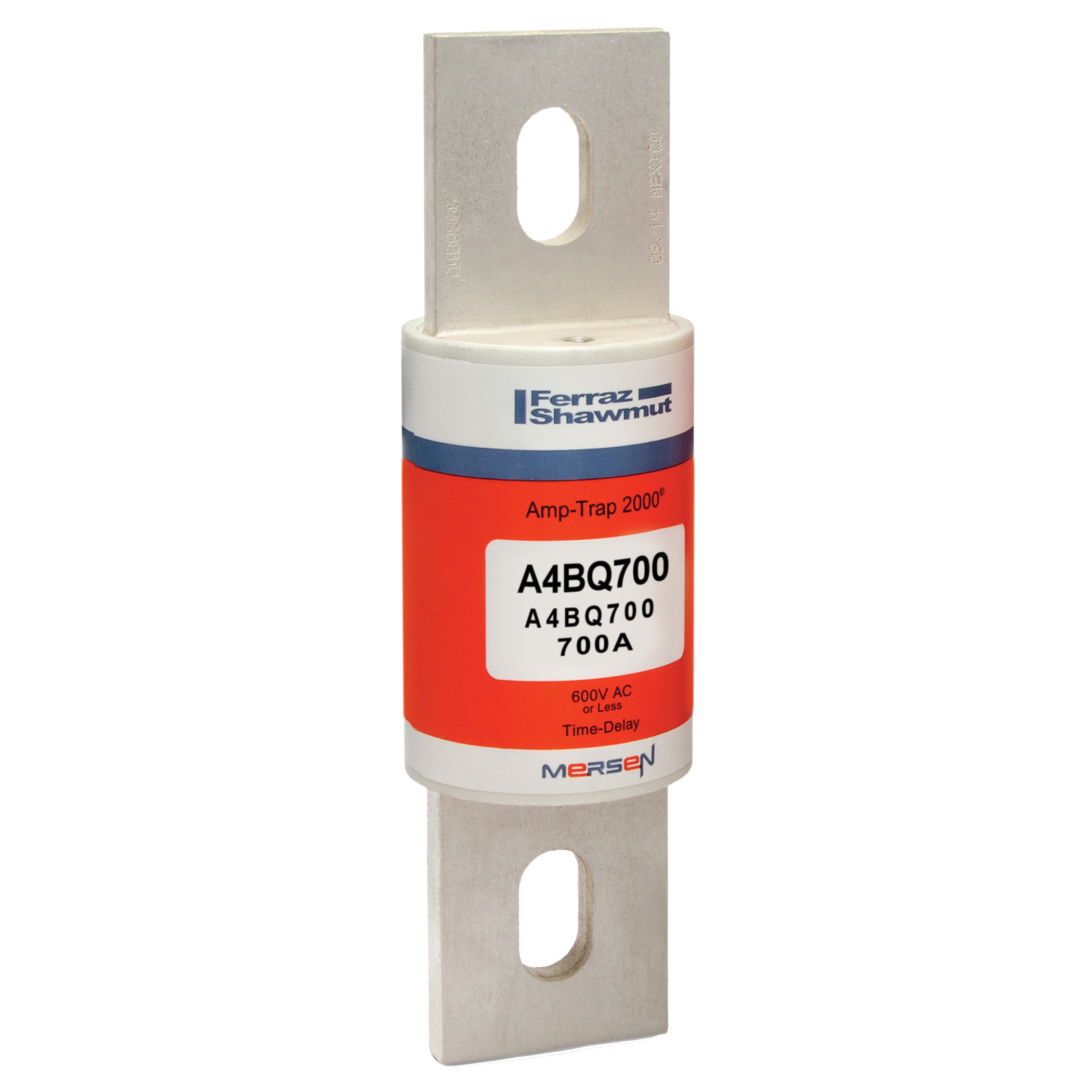

A4BQ700 Mersen Slow Blow Fuse A4BQ – Class L – Time-Delay 600VAC 500VDC 700A Blade TA Indicator Amp-Trap 2000, Cylindrical Cartridge Bolt Mount CSA, UL
Time-delay bolt-on fuses, also called slow-blow fuses, are current protection devices that tolerate brief spikes from short events such as motor starts or equipment startups. They feature tabs or lugs with holes that allow them to securely bolt onto terminals, busbars, and other components.
Terminal Type: Blade
Diameter: 2-1/2 Inch
Length: 8-5/8 Inch
Approval: UL 248/248-10, CSA C22.2
Additional Information: Body Style Cylindrical, Rejection; Body Material Glass-Melamine Laminate; Contact Material Silver Plated Copper; Mounting Type Bolt-On; Application Mains, Feeder, Large Motor, Lightning, Heating, General Load, Circuit Breaker Back-Up, UPS DC Link, Battery
Catalog Number: A4BQ700
Brand Name: Ferraz
Model: A4BQ
Type: Class L
Characteristics: 4 Second Time Delay (at 500 Percent Rated Load)
Voltage Rating: 600 Volt AC, 500 Volt DC
Current Rating: 700 Amp
Interrupting Rating: 200 Kiloamp (AC), 100 Kiloamp (DC)
CATALOG DESCRIPTION: FUSE A4BQ – CLASS L – TIME-DELAY 600VAC 500VDC 700A BLADE AMP-TRAP 2000
Category: Current Limiting Fuses
Full Size Image
Full Technical Description: Class L Type; 8-5/8 Inch; UL 248/248-10, CSA C22.2 Approval; 600 Volt AC, 500 Volt DC Voltage Rating; 2-1/2 Inch Diameter; 200 Kiloamp (AC), 100 Kiloamp (DC) Interrupting Rating; 700 Amp Current Rating; Blade Terminal Type; 4 Second Time Delay (at 500 Percent Rated Load) Characteristics; Amp-Trap 2000[R] Brand; Body Style Cylindrical, Rejection; Body Material Glass-Melamine Laminate; Contact Material Silver Plated Copper; Mounting Type Bolt-on; Application Mains, Feeder, Large Motor, Lightning, Heating, General Load, Circuit Breaker Back-Up, UPS DC Link, Battery Disconnect; A4BQ Model
Manufacturer: Mersen – Ferraz Shawmut
Manufacturer Brand: Mersen – Ferraz Shawmut, Inc.
Product Brochure
Product Description: Mersen-Ferraz A4BQ700 600V Class L Fuse
MPN: A4BQ700
Manufacturer: Mersen Ferraz Shawmut
Response Time: Slow Blow
Fuse Type: Cartridge
Current Rating: 700A
Voltage Rating: 600VAC
Breaking Voltage: 200kA AC, 100kA DC
Package / Case: Cylindrical, Blade Terminal (Bolt)
Size / Dimension: 2.480″ Dia x 8.622″ L (63.00mm x 219.00mm)
Mounting Type: Bolt Mount
Applications: Electrical, Industrial
